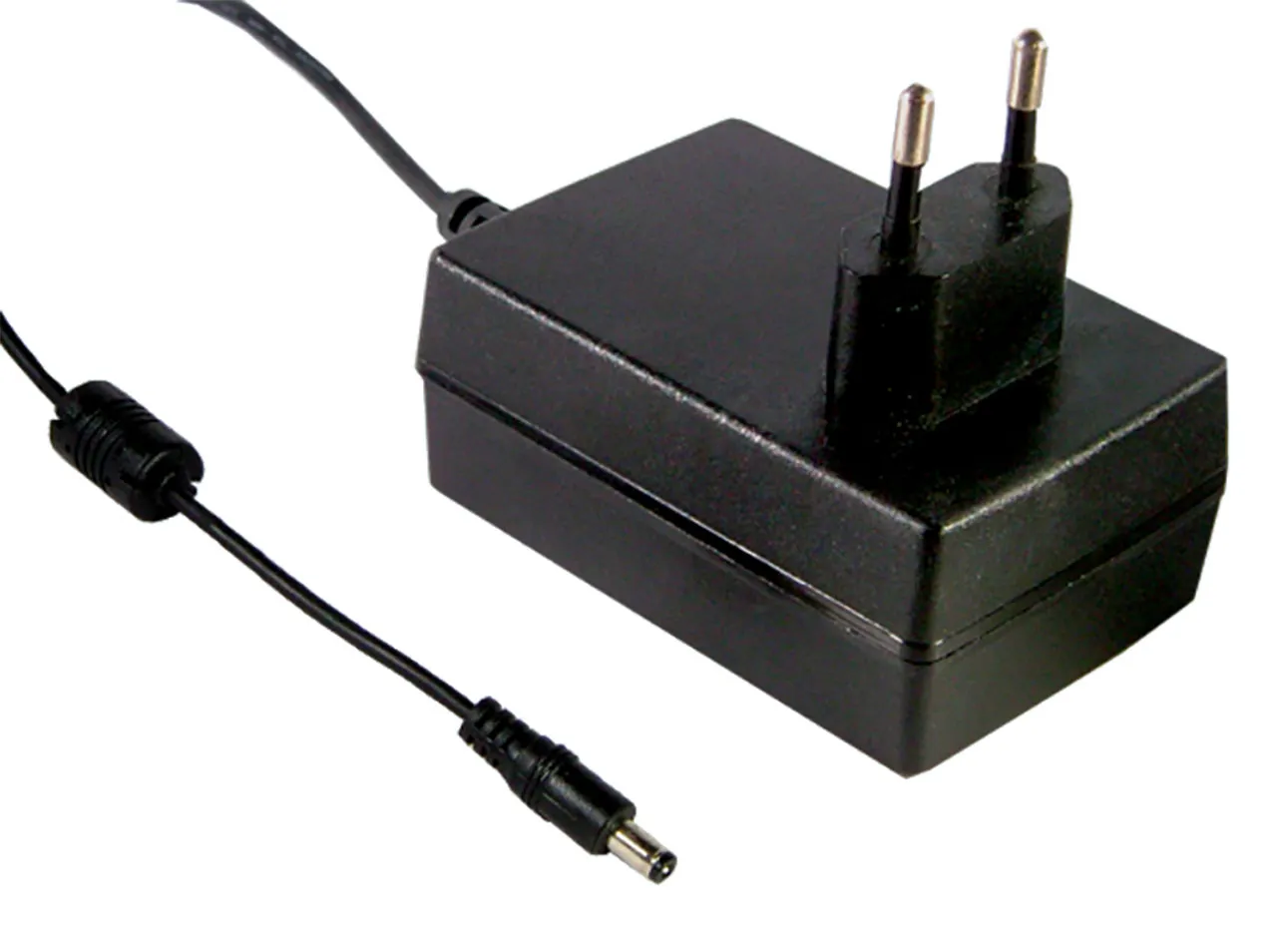

AC-DC Reliable Green Medical Adapter 36W 12V 3A 2.1mm DC Plug 2-Pole Euro Plug Input
Features
- 2-pole EURO plug, Class II power units
- Medical safety approved (2xMOPP) according to EN60601-1/-1-11
- Extremely low leakage current
- No load power consumption <0.1W
- Energy efficiency Level VI and meet CoC version 5 (except 5V-9V is Level V)
- -25C to +60C wide working temperature range
- Protections: Short circuit, overload, over voltage
- LED indicator for power on
- Various DC plug quick adapter accessories available
- 3-year warranty
Applications
- Blood glucose meters
- Blood pressure meters
- Nebulizers
- Inhaler
- Portable medical device
Overview
GSM36E is a highly reliable 36W wall-mounted style single-output green medical adapter series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2xMOPP), having an ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients
With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM36W is compliant with EU ErP and meets Code of Conduct (CoC) Version 5; the supreme feature allows the adapter to save energy with it is either under the operating mode of the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing double insulation that effectively prevents electrical shock. GSM36E is approved with the international medical safety certificates.
