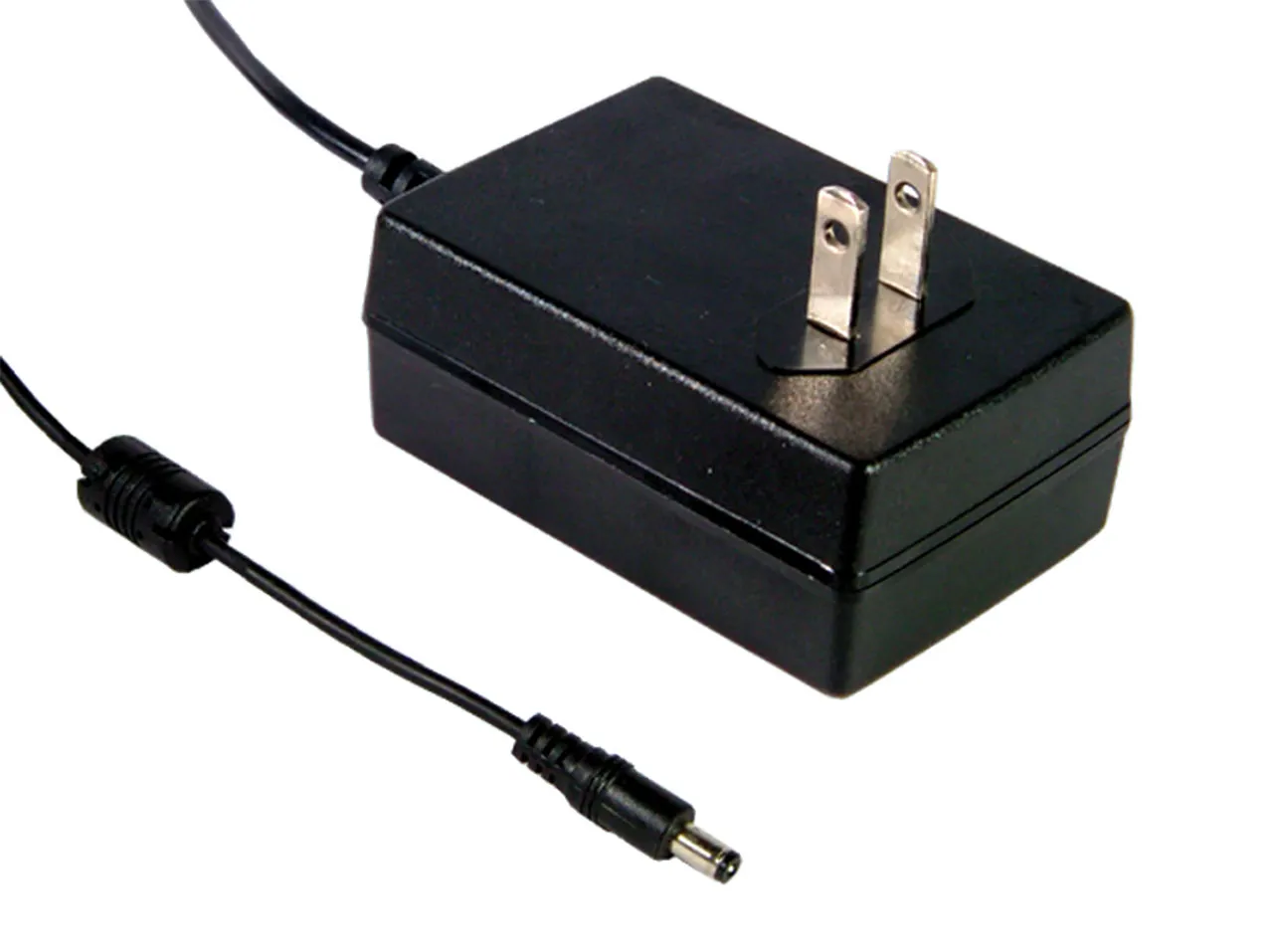

AC-DC Reliable Green Medical Adapter 25W 48V 520mA 2.1mm DC Plug 2-Pole USA Plug Input

Features

• 2-pole USA plug, Class II power units
• Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1/-1-11
• Extremely low leakage current
• No load power consumption <0.1W
• Energy efficiency Level VI and meet CoC version 5 (except 5V-9V is Level V)
• -25C to +60C wide working temperature range
• Protections: Short circuit, overload, over voltage
• LED indicator for power on
• Various DC plug quick adapter accessories available
• 3-year warranty

Applications

• Blood glucose meters
• Blood pressure meters
• Nebulizers
• Inhaler
• Portable medical device

Overview

GSM25U is a highly reliable 25W wall-mounted style single-output green medical adapter series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2xMOPP), having an ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients

With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM25U is compliant with USA EISA 2007/DoE and Canada NRCan; the supreme feature allows the adapter to save energy with it is either under the operating mode of the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing double insulation that effectively prevents electrical shock. GSM25U is approved with the international medical safety certificates.
