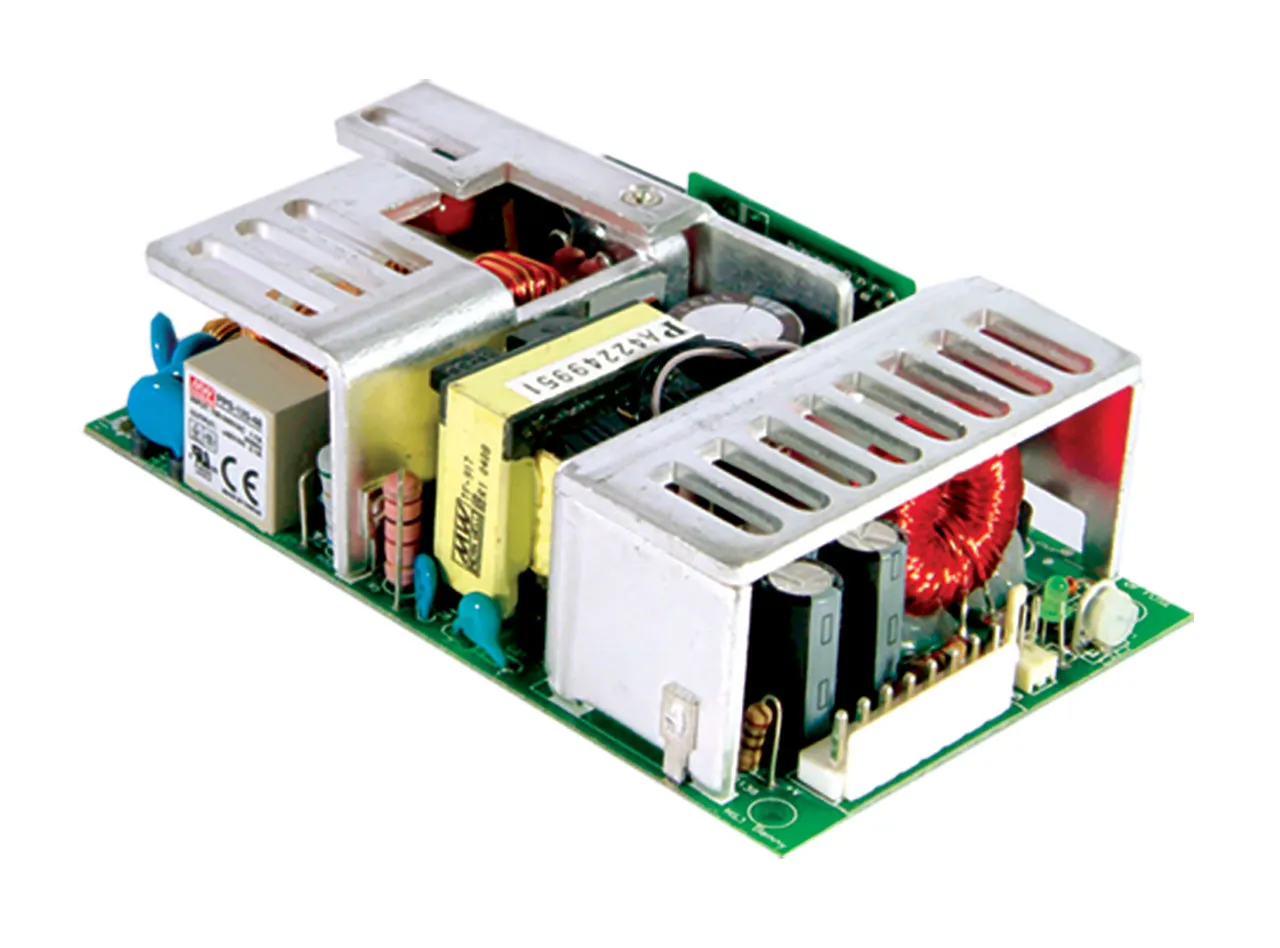

125.1W Open-Frame AC-to-DC Switching Triple Output Power Supply

Features:

  • Input: 90-264VAC @ 47-63Hz
  • Size: 5.0"L x 3.0"W x 1.4"H
  • Ripple and Noise: 100mVp-p
  • Load Regulation: ±3.0%
  • Line Regulation: ±0.5%
  • Universal AC input/full range
  • Short-circuit, Overload, Over-voltage protection
  • Built-in PFC function
  • 3-year warranty
  • Certification: UL/CUL/TUV/CE

Overview

Channel 1: +5 Volts @ 13.8 Amps
Channel 2: +15 Volts @ 3.1 Amps
Channel 3: -15 Volts @ 0.63 Amps

Product Identification

Manufacturer Series:PPT-125

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1.40 in.
Width:3 in.
Length:5 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.7 A

Output

Number of Outputs:3
Output Connector Type:JST B3P-VH or equiv.
Output Voltage:5 VDC
Additional Output Voltages (VDC): -15, 15
Output Current:11 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:78%
Power Rating:125.15 W
,
