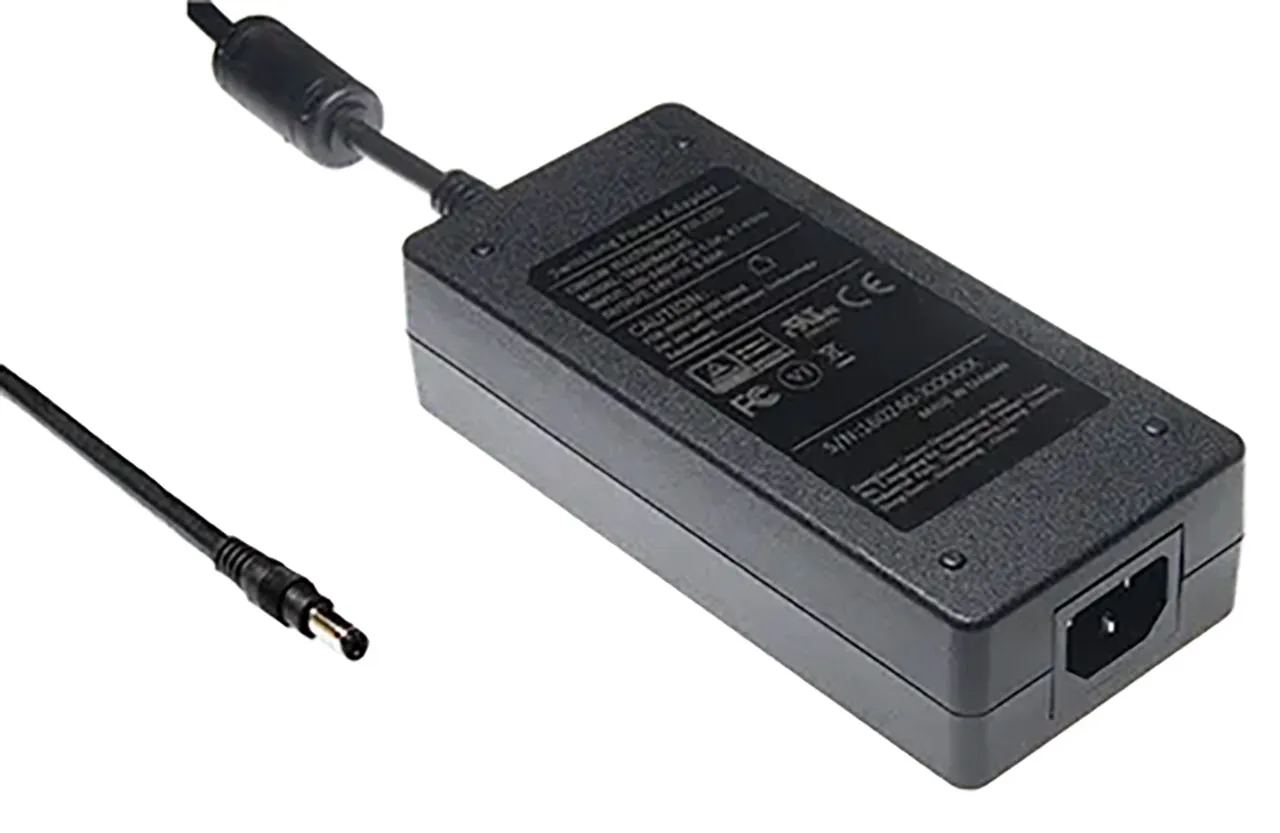

AC-DC Medical Table Top Power Adapter 24VDC 6.66A 160W 2.5x5.5mm Plug 4' DC Cord C14 Inlet

Features

  • Universal Input Range 80 to 264 Vac
  • High Efficiency up to 92%
  • Class I
  • Approval IEC/EN/UL 60601-1 2 MOPP
  • Approval EN 55011 and CISPR/FCC Class B
  • Operating Altitude 3000m
  • Over Voltage Protection
  • Continuous Short Circuit Protection
  • Meets CoC Tier 2 and DOE Level VI

Overview

AC-DC Medical Table Top Power Adapter 24VDC 6.66A 160W 2.5x5.5mm Plug 4' DC Cord C14 Inlet.

Product Identification

Type:Switching
Product Type:Medical AC to DC Power Supply SMPS
Manufacturer Series:TR160M

Compliance

Agency Approvals:UL, CUL, TUV, CE, FCC, EN, UKCA

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.50 in.
Width:2.76 in.
Length:5.91 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:2 A

Output

Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:6.66 A

Features

Polarity:Center Positive
Product Note:Level VI
Minimum Isolation Voltage:4400V
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:92%
Power Rating:160 W
,
