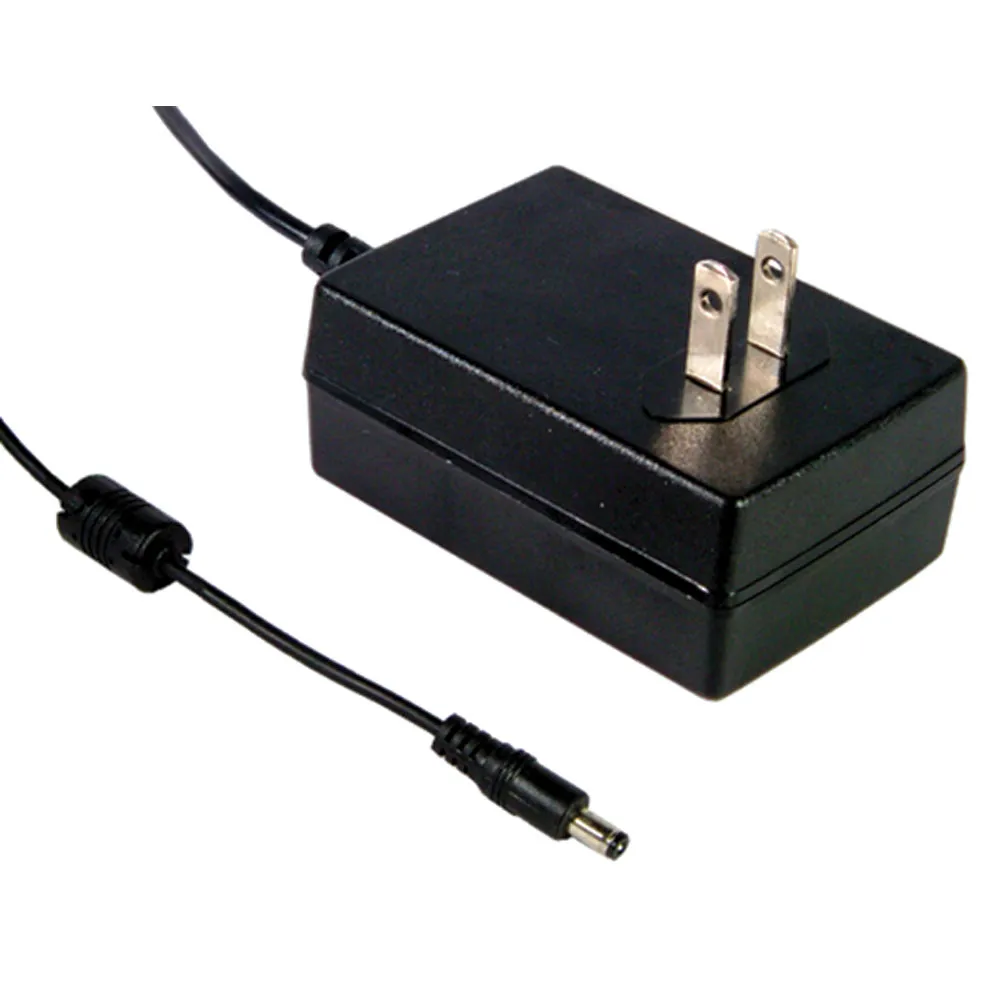

36 Watt AC-DC High Reliability Medical Adapter

48 Volts @ 0.75 Amps

Features:

  • Universal AC input / Full range
  • 2 pole USA plug
  • Medical safety approved (2 x MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current < 50uA
  • No load power consumption < 0.1W
  • Energy efficiency Level VI (except for 5-9V for Level V)
  • Comply with EISA 2007/DoE and NRCan
  • Class II power (without earth pin)
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • High operating temperature up to +60°C
  • LED indicator for power on
  • 3 year warranty

    • Product Identification

    Product Type:Switching SMPS
    Manufacturer Series:GSM36U

    Compliance

    Agency Approvals:UL, CUL, TUV, CB, FCC, EAC

    Dimensions & Appearance

    Color:Black
    Style:Wall Mount
    Height:1.31 in.
    Width:2.13 in.
    Length:3.11 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Connector:NEMA 1-15P
    Input Voltage:80 VAC to 264 VAC
    Maximum Input Current:0.9 A

    Output

    Number of Outputs:1
    Output Connector Diameters:2.1mm x 5.5mm
    Output Cord Length:6 ft.
    Output Connector Type:Cylindrical Female
    Output Voltage:48 VDC
    Output Current:0.75 A

    Features

    Polarity:Center Positive
    Product Note:Level VI
    AC Power Cord:N/A
    Efficiency:88%
    Power Rating:36 W
    ,
