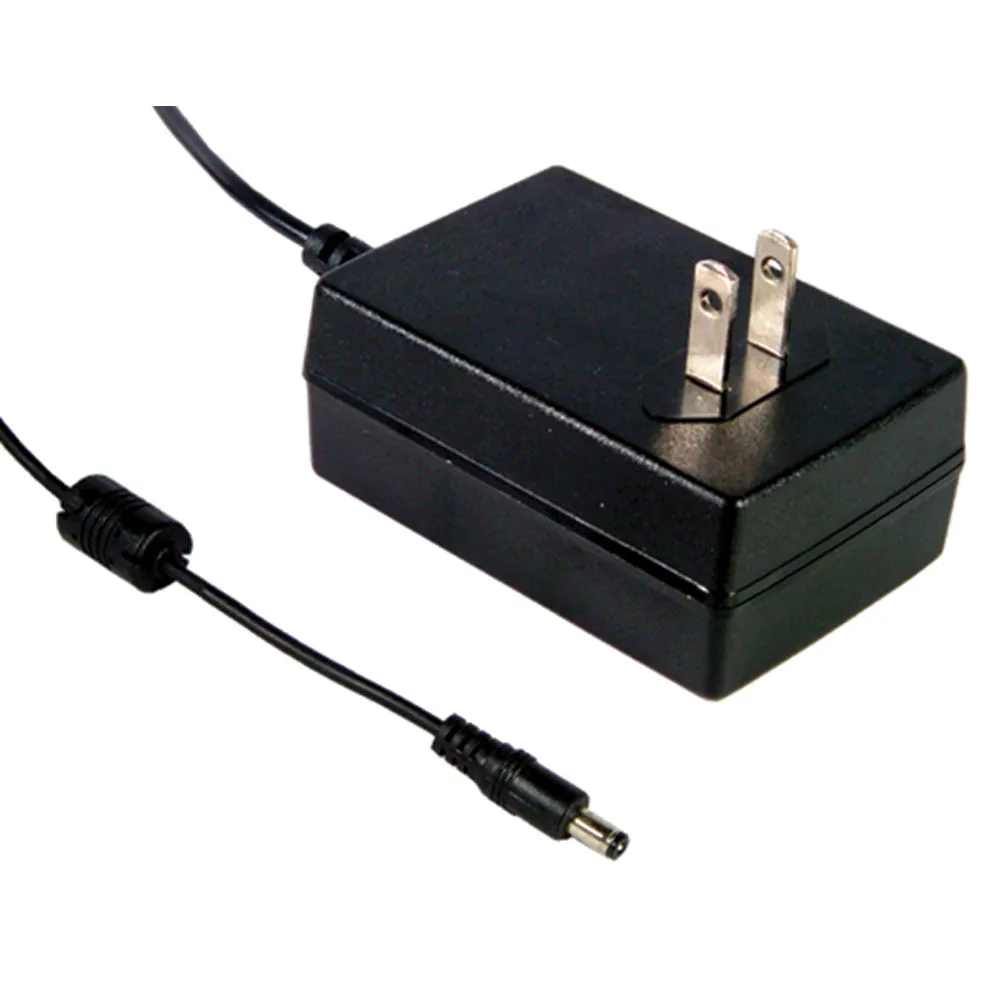

36 Watt AC-DC High Reliability Medical Adapter

12 Volts @ 3 Amps

Features:

  • Universal AC input / Full range
  • 2 pole USA plug
  • Output connector: 2.1mm x 5.5mm center positive female barrel plug
  • Medical safety approved (2 x MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current < 50uA
  • No load power consumption < 0.1W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE and NRCan
  • Class II power (without earth pin)
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • High operating temperature up to +60°C
  • LED indicator for power on
  • 3 year warranty

Product Identification

Product Type:Switching SMPS
Manufacturer Series:GSM36U

Compliance

Agency Approvals:UL, CUL, TUV, CB, FCC, EAC

Dimensions & Appearance

Color:Black
Style:Wall Mount
Height:1.31 in.
Width:2.13 in.
Length:3.11 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:NEMA 1-15P
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:0.9 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Cord Length:6 ft.
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current:3 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Efficiency:86%
Power Rating:36 W
,
