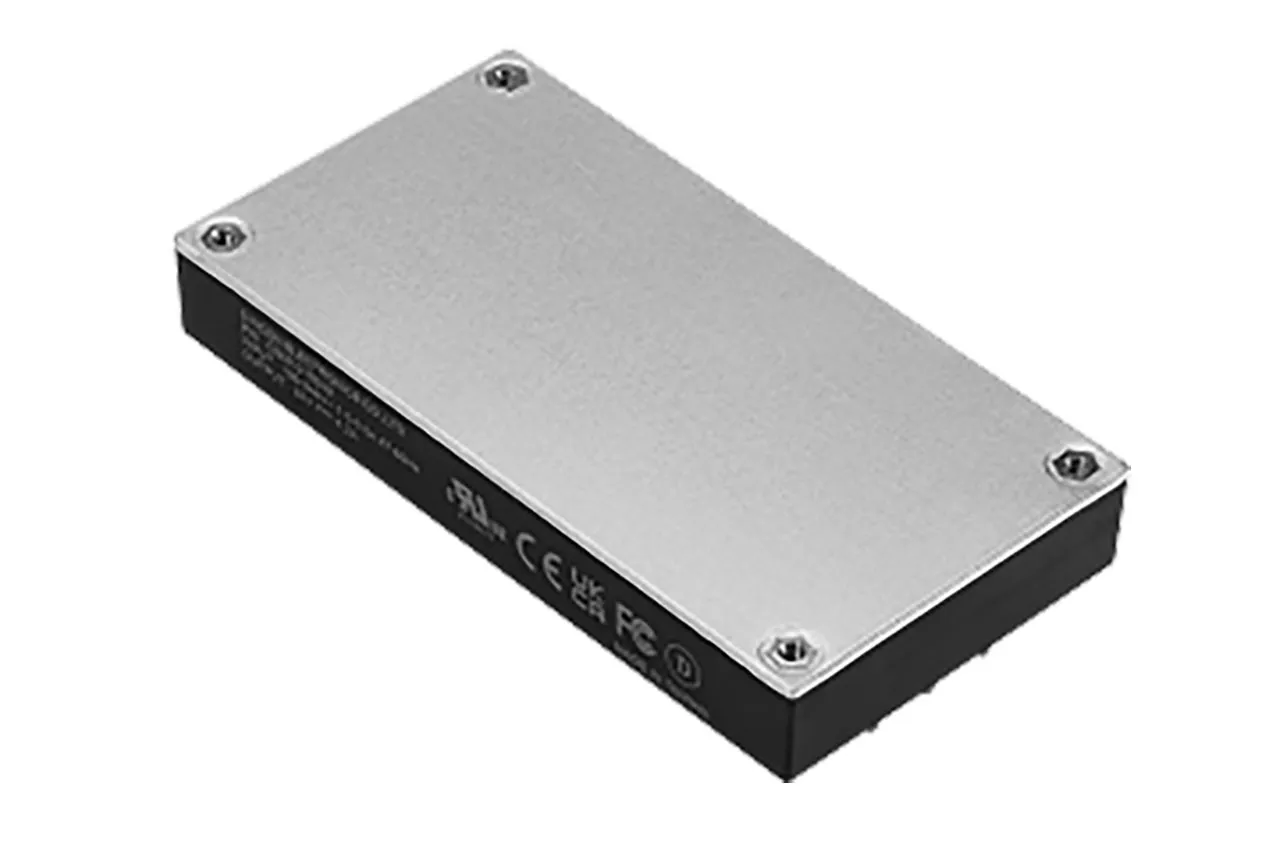

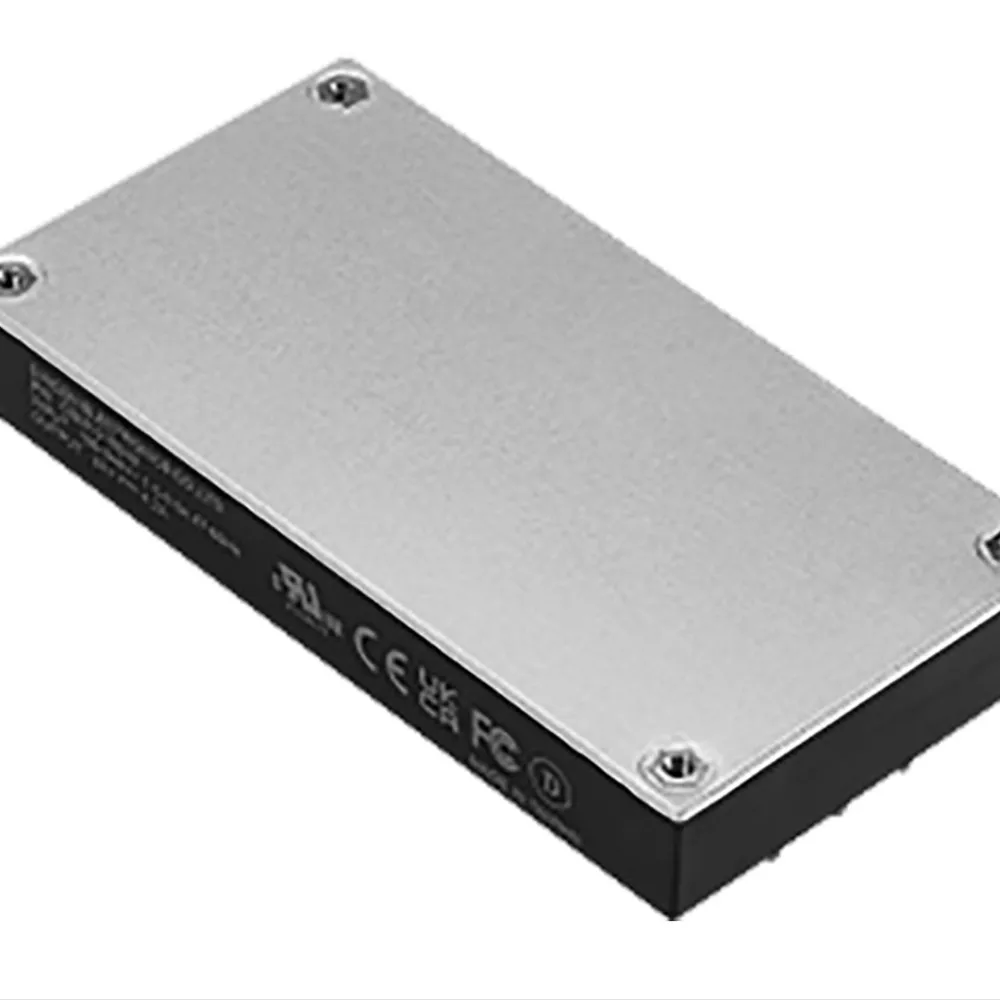

AC-DC Brick Style Power Supply with PFC 36VDC 2.8A 100W PC PIN

Features

  • Universal Input Range 90 to 264 Vac
  • High Efficiency up to 94.5%
  • Class I
  • No Load Input Power Consumption <0.5W
  • Peak Power Operation up to 120Watt for 5s
  • Approval IEC/EN/UL 62368-1
  • Approval EN55032 and CISPR/FCC Class B
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • Low Inrush Current < 8.5A
  • 17mm Ultra Low-Profile Package
  • Full Load without Heat Sink
  • No Fan Required
  • Built-in EMI Filters Bulk Capacitor and Output Capacitors
  • Wide Operating Temperature Range

Overview

Product Identification

Manufacturer Series:CBM101S
Product Type:Auto Switching SMPS

Compliance

Agency Approvals: CE, CUL, EN, FCC, UKCA, UL

Dimensions & Appearance

Style:AC-DC PCB Mount Brick Power Supply
Color:Black
Height:0.67 in.
Width:2.40 in.
Length:4.60 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:36 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.80 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4000V
Efficiency:94.5%
Power Rating:100 W
,
