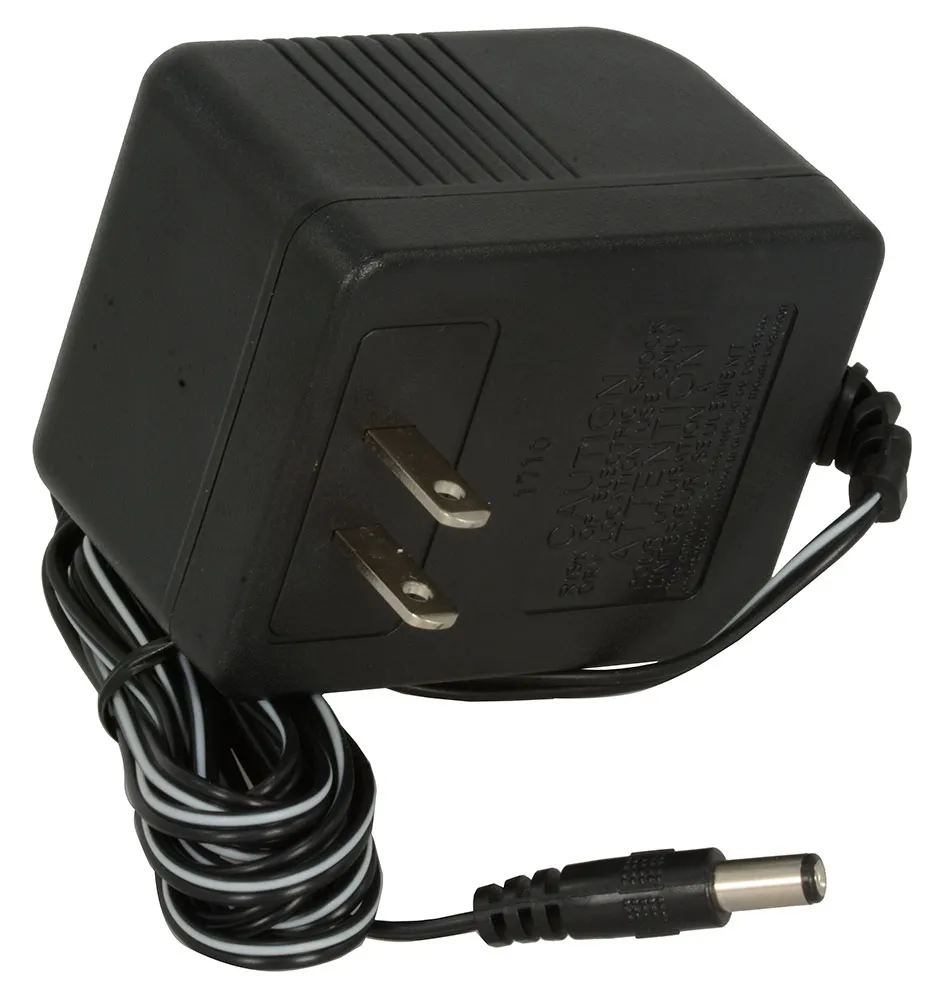

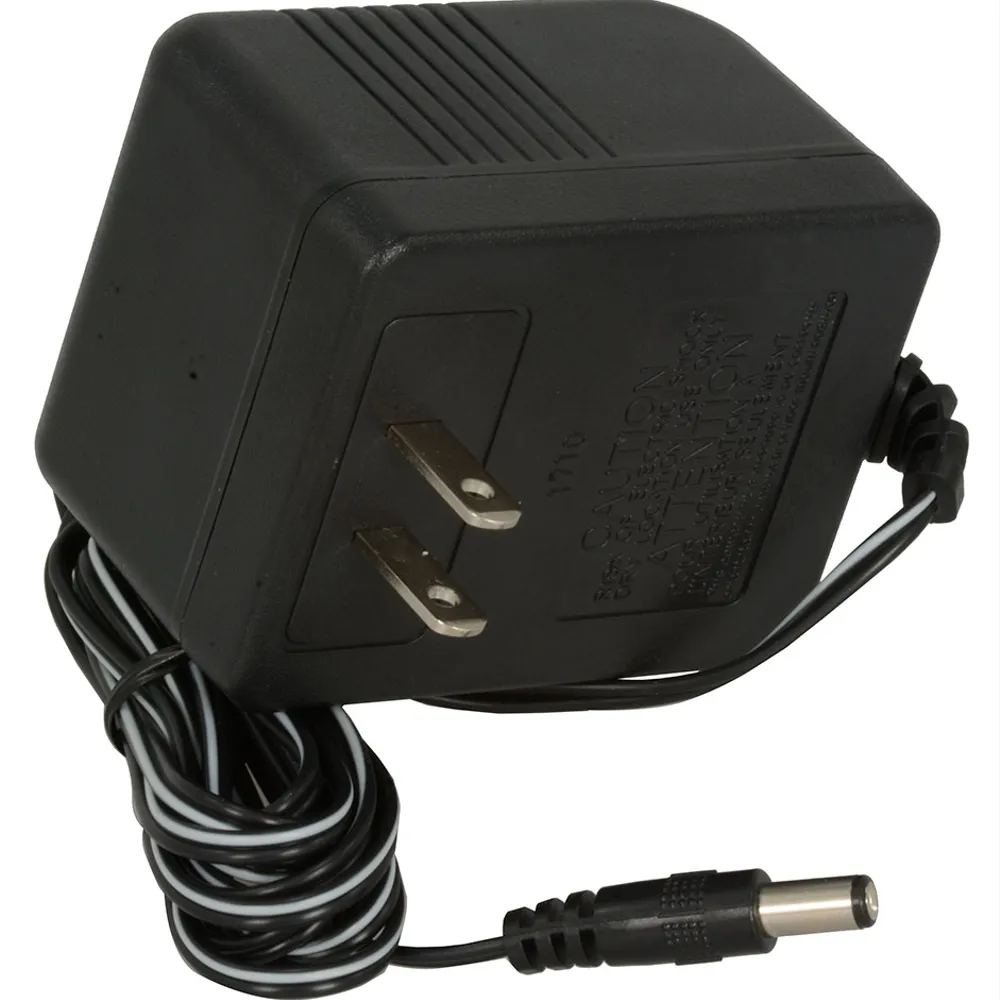

24VAC, 500mA OUTPUT AC-AC WALL ADAPTER

Output Connector Type: Female 2.1mm inside diameter / 5.5mm outside diameter straight plug

Features:

  • Input Voltage: 120VAC @ 60Hz
  • Output Rating: 24VAC @ 500mA
  • Size: 2.5"H x 2.2"W x 1.9"D
  • Case color: Black
  • Output cord length: 6 feet
  • Weight: 0.9 lbs.
  • Agency approvals: UL/CSA
  • ROHS Compliant

Product Identification

Manufacturer Series:ReliaPro

Compliance

Agency Approvals: CUL, UL

Dimensions & Appearance

Color:Black
Weight:0.9 lbs.
Height:1.9 in.
Width:2.2 in.
Length:2.5 in.

Input

Input Voltage:120 VAC

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:24 VAC
Output Current:0.50 A

Features

Primary Side Connection:NEMA 1-15P
AC Cord Length:6 ft.
Primary Frequency:60 Hz
Polarity:N/A
Power Rating:12 VA
,
