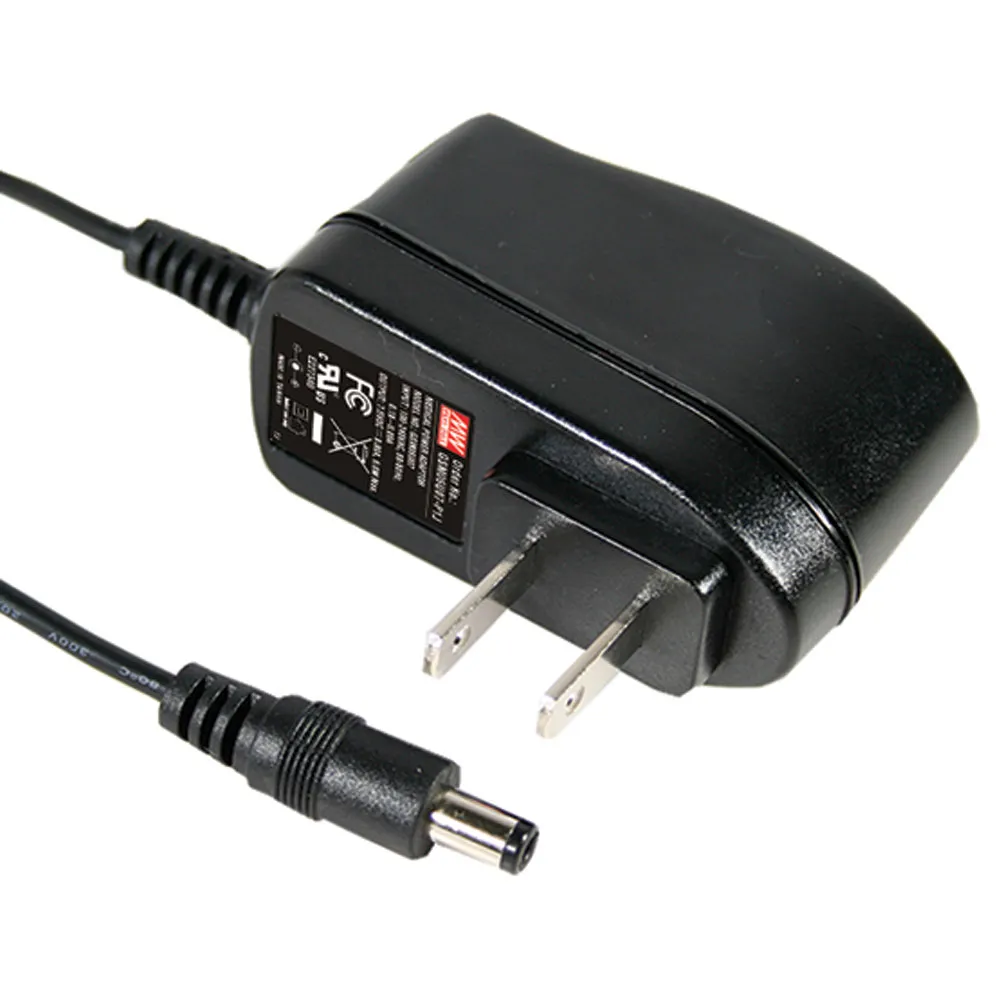

AC to DC Switching Power Supply Single Output Medical Wall Adapter 24 Volts 0.25 Amps 6 Watts

24 Volts @ 0.25 Amps

Specifications

  • Output Power (W): 6
  • Size (L x W x H) inches: 1.26 X 2.6 X 1.67
  • Ripple & Noise (mV p-p): 180
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 3%
  • Efficiency: 82%
  • Agency Approvals: CE/CUL/CB/FC
  • Universal AC input / Full range
  • 2 pole USA plug
  • Low leakage current <50 µ A
  • Protections: short circuit, over voltage, overload
  • Fully enclosed plastic case
  • Medical safety approval (2 MOPP between primary to secondary)
  • Class II power (without earth pin)
  • No load power consumption < 0.3 watts
  • ErP step 2 compliant (level 5)
  • Meets EISA 2007 (Energy Independence and Security Act)
  • No lock DC plug
  • 3 year warranty

Product Identification

Product Type:Switching SMPS
Manufacturer Series:GSM06U

Compliance

Agency Approvals: CUL, EAC, FCC, UL, UL, CUL, FCC, EAC

Dimensions & Appearance

Color:Black
Style:Slimline Wall Mount
Height:1.7 in.
Length:1.3 in.
Width:2.6 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:NEMA 1-15P
Maximum Input Current:0.18 A
Input Voltage:85 VAC to 264 VAC

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Cord Length:6 ft.
Output Connector Type:Cylindrical Female
Output Current:0.25 A
Output Voltage:24 VDC

Features

Polarity:Center Positive
Product Note:Level V
AC Power Cord:N/A
Efficiency:82%
Power Rating:6 W
,
