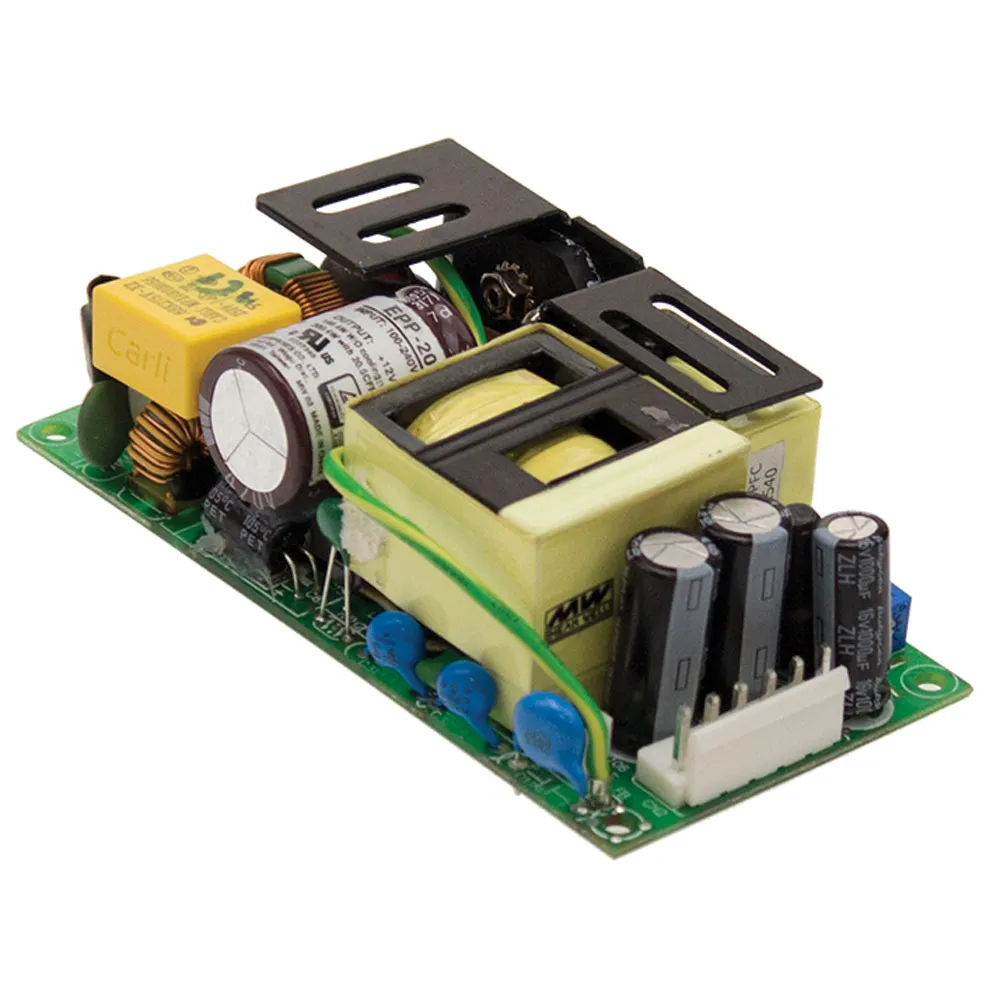

AC to DC Switching Open Frame Power Supply 12 Volts 16.7 Amps 200 Watt

12 Volts @ 16.7 Amps

Specifications

  • Output Power (W): 200
  • Size (L x W x H) inches: 4 X 2 X 1.2
  • Ripple & Noise (mV p-p): 100
  • Load Regulation (±): 1%
  • Line Regulation (±): 0.5%
  • Efficiency: 93%
  • Agency Approvals: UL/CUL/TUV/CE/CB
  • Frequency Range: 47 to 63 Hz
  • Voltage Range: 80 to 264 VAC
  • Universal AC input / Full range
  • 4" x 2" miniature size
  • Protections: short circuit, over voltage, overload, over temperature
  • Built in active PFC function
  • EMI Class B for both Class I 9with FG) and Class II (without FG) configuration
  • Cooling by free air convection for 84 watt and 120 watt with 10 CFM forced air
  • LED indicates power on
  • No load power consumption <0.5 watts
  • Built in 12 volt / 0.5 amp fan supply
  • 3 year warranty

    • Product Identification

    Manufacturer Series:EPP-200

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Height:0.14 in.
    Style:Open Frame
    Width:2 in.
    Length:4 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:80 VAC to 264 VAC
    Maximum Input Current:1.8 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B6P-VH or equiv.
    Output Voltage:12 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:16.70 A

    Features

    PFC Function:Yes
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:93%
    Power Rating:200 W
    ,
