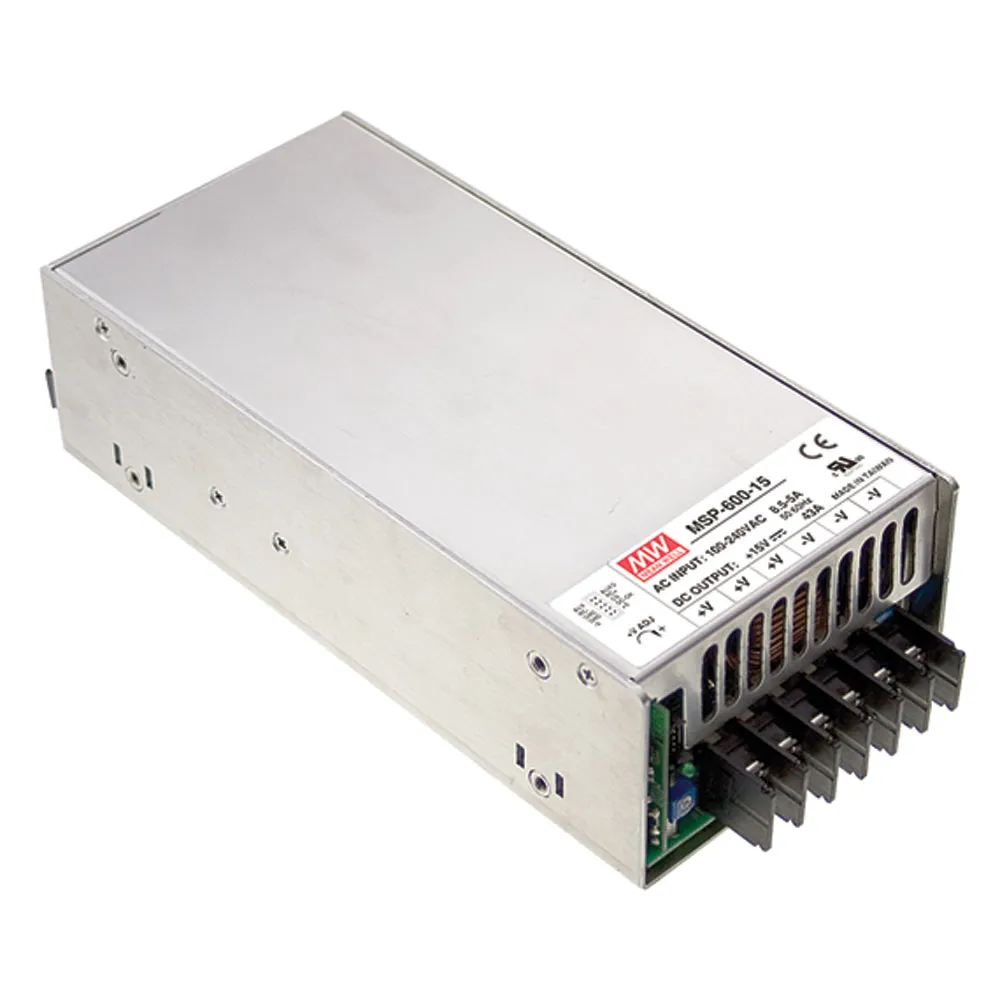

AC to DC Switching Medical Power Supply Single Output with PFC Function 36 Volts 17.5 Amps 630 Watts

36 Volts @ 17.5 Amps

Specifications

  • Output Power (W): 630
  • Size (L x W x H) inches: 8.6 X 4.12.5
  • Ripple & Noise (mV p-p): 200
  • Line Regulation (±): 0.2%
  • Load Regulation (±): 0.5%
  • Efficiency: 89%
  • Agency Approvals: UL/CUL/CB/CE
  • Universal AC input / Full range
  • Built in active PFC function, PF > 0.95
  • Protections: short circuit, over voltage, over temperature, over current
  • Withstand 300 VAC surge input for 5 seconds
  • Built in constant current limiting circuit
  • Medical safety approved (MOOP Level)
  • Built in cooling fan with ON-OFF control
  • Built in DC OK signal
  • Built in remote ON-OFF control
  • Stand by 5 volt @ 0.3 Amps
  • Built in remote sense function
  • No load power consumption <0.8 watt
  • 5 year warranty

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:MSP-600

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, UL

Dimensions & Appearance

Style:Medical Enclosed
Color:Silver
Height:2.5 in.
Width:4.1 in.
Length:8.6 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:8.5 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:36 VDC
Output Current:17.50 A

Features

PFC Function:Yes
Efficiency:89%
Power Rating:630 W
,
