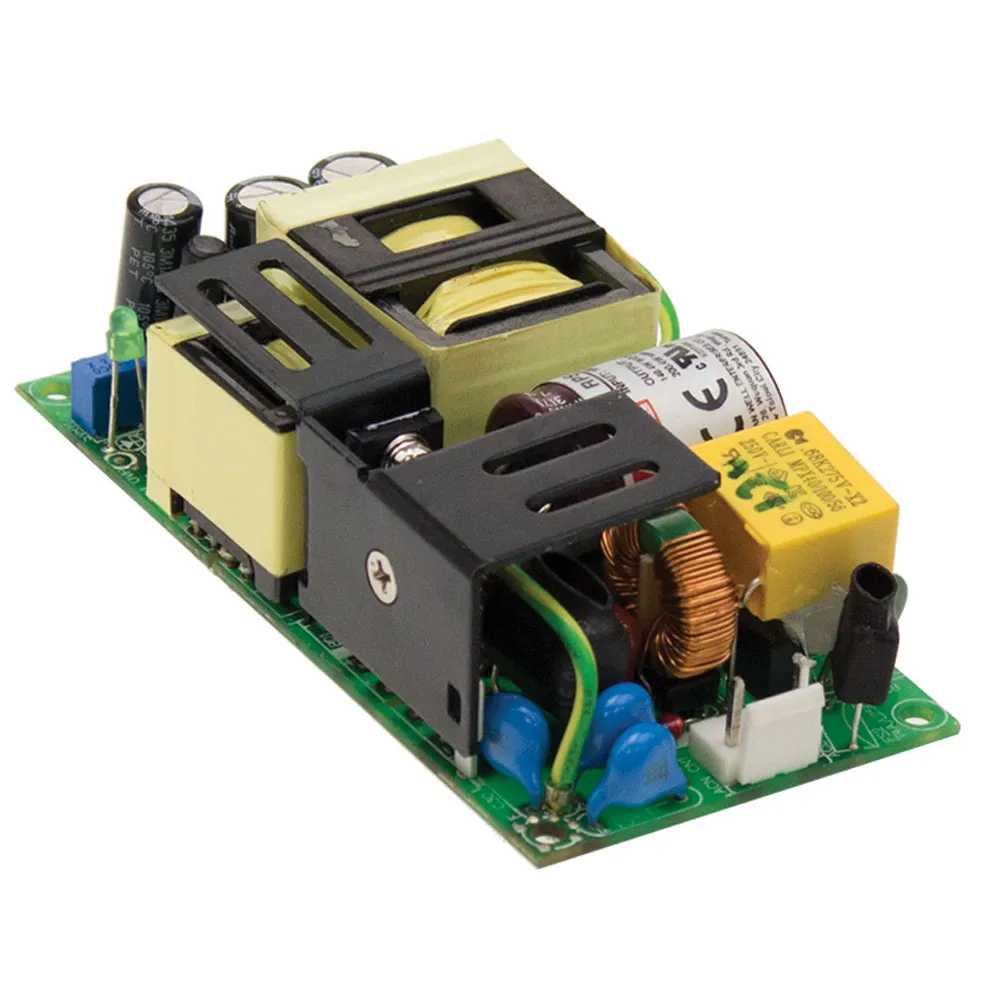

AC to DC Switching Medical Open Frame Power Supply 12 Volts 16.7 Amps 200 Watt

12 Volts @ 16.7 Amps

Specifications

  • Output Power (W): 200
  • Size (L x W x H) inches: 4 X 2 X 1.14
  • Ripple & Noise (mV p-p): 100
  • Voltage Range: (±): 2%
  • Line Regulation (±): 0.5%
  • Load Regulation (±): 1%
  • Efficiency: 93%
  • Frequency Range: 47 to 63 Hz
  • Voltage Range: 80 to 264 VAC
  • Agency Approvals: UL/CUL/TUV/CE/CB
  • Universal AC input / Full range
  • 4 by 2 inch miniature size
  • Built in active PFC function
  • Medical safety approved (2 x MOPP between primary and secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current < 190 µA
  • EMI Class B for both Class I (with FG) and Class II (without FG) configuration
  • Cooling by free air convection for 84 watt and 120 watt with 10 CFM forced air
  • Protections: short circuit, over voltage, overload, over temperature
  • LED indicates power on
  • No load power consumption < 0.5 watts
  • Built in 12 volt / 0.5 amp fan supply
  • 3 year warranty

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:RPS-200

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Open Frame
Height:1.14 in.
Width:2 in.
Length:4 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:2 A

Output

Number of Outputs:1
Output Connector Type:JST B6P-VH or equiv.
Output Connector Diameters:N/A
Output Voltage:12 VDC
Additional Output Voltages (VDC):N/A
Output Current:16.70 A

Features

Minimum Isolation Voltage:4000V
Efficiency:93%
Power Rating:200 W
,
