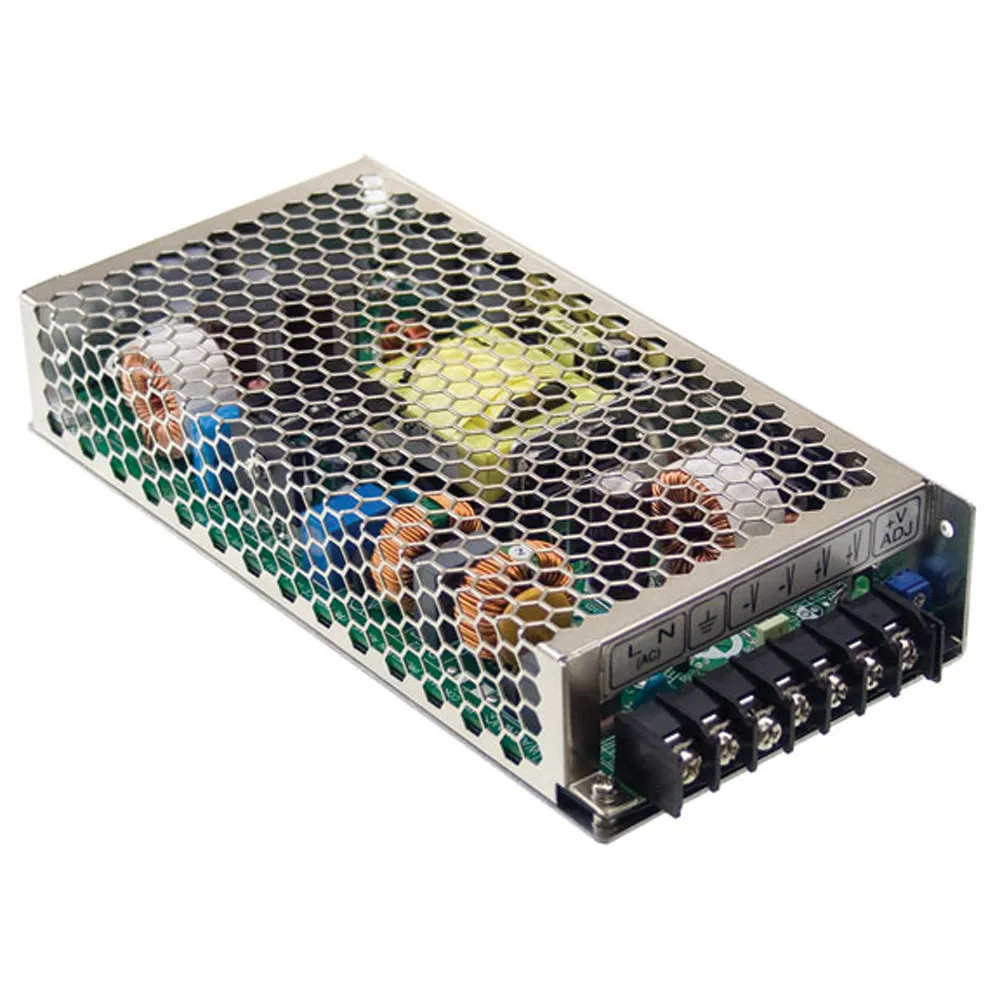

200 Watt Single Output Medical Type Power Supply

7.5 Volts @ 26.7 Amps

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 86%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in remote ON-OFF control
  • Standby [email protected]
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • No load power consumption <0.5W (Note.6)
  • Built-in remote sense function
  • 5 years warranty

    • Product Identification

    Product Type:Medical Switching SMPS
    Manufacturer Series:MSP-200

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, UL

    Dimensions & Appearance

    Style:Medical Enclosed
    Color:Silver
    Height:1.5 in.
    Width:3.9 in.
    Length:7.8 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:2.2 A

    Output

    Number of Outputs:1
    Output Voltage:7.5 VDC
    Output Connector Type:Screw Terminal Block
    Output Current:26.70 A

    Features

    PFC Function:Yes
    Efficiency:87%
    Power Rating:200.3 W
    ,
