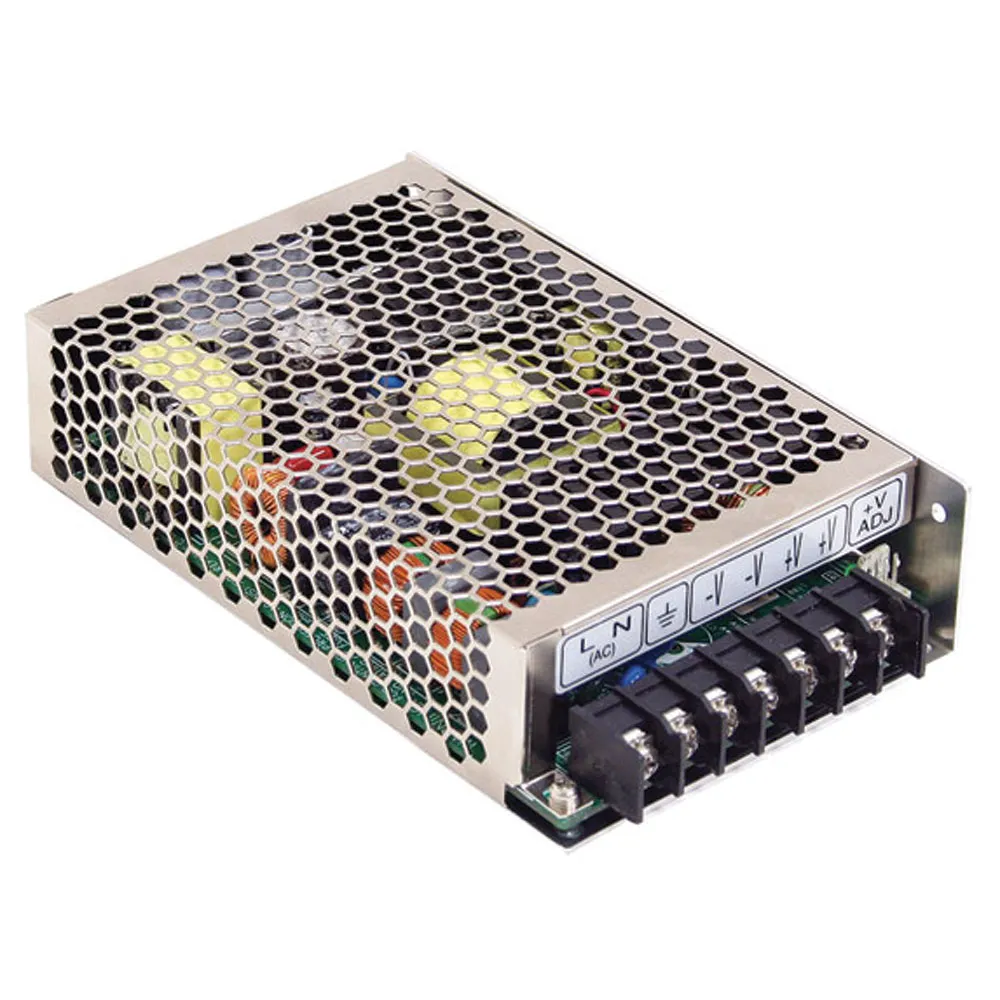

100 Watt Single Output Medical Type Power Supply

36 Volts @ 2.9 Amps

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage
  • Protections: Over temperature (optional)
  • Cooling by free air convection
  • 1U low profile 38mm
  • Medical safety approved (MOOP level)
  • Built-in remote ON-OFF control
  • No load power consumption<0.5W (Note.6)
  • All using 105°C long life electrolytic capacitors
  • 5 years warranty

    • Product Identification

    Product Type:Medical Switching SMPS
    Manufacturer Series:MSP-100

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, UL

    Dimensions & Appearance

    Style:Medical Enclosed
    Color:Silver
    Height:1.5 in.
    Width:3.8 in.
    Length:6.3 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:1.2 A

    Output

    Number of Outputs:1
    Output Connector Type:Screw Terminal Block
    Output Voltage:36 VDC
    Output Current:2.90 A

    Features

    PFC Function:Yes
    Efficiency:89%
    Power Rating:104.4 W
    ,
