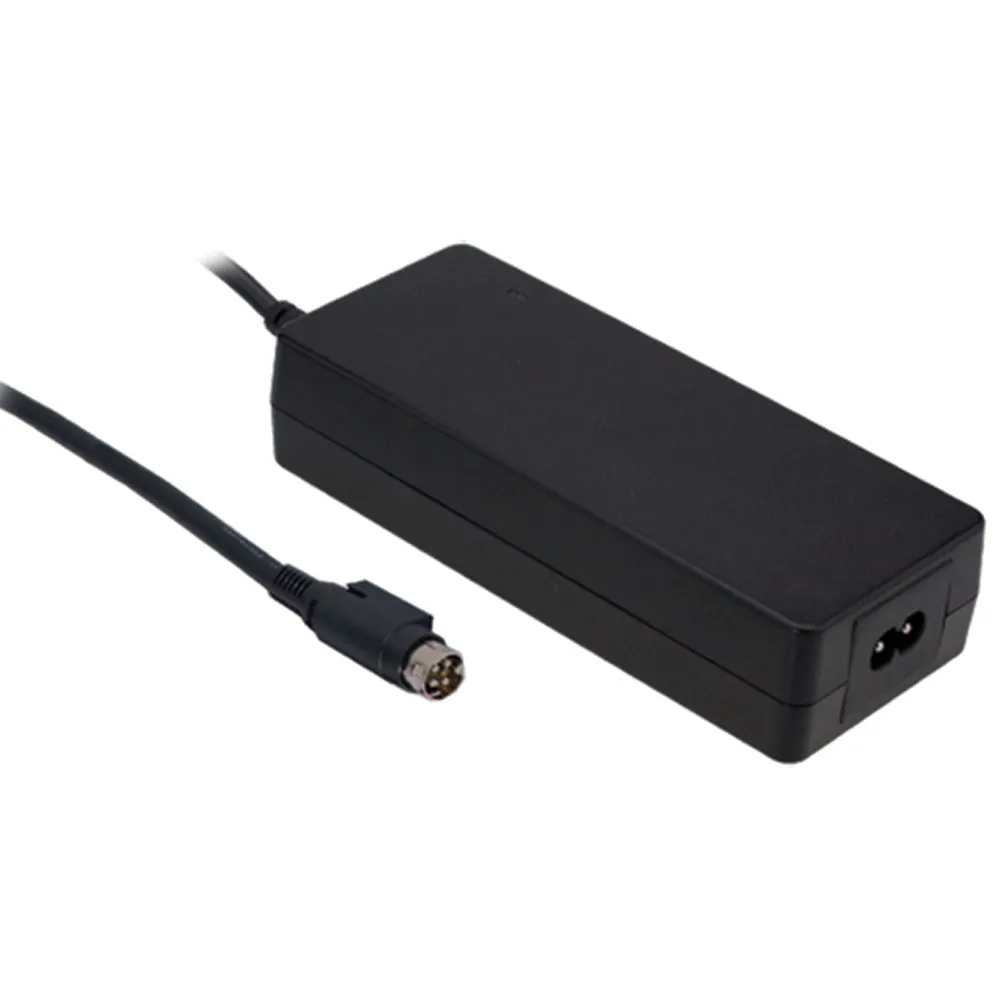

AC to DC Switching Medical Table Top Power Supply Single Output 24 Volts 5 Amps 120 Watts

24 Volts @ 5 Amps

Specifications

  • Output Power (W): 120
  • Size (L x W x H) inches: 6.6 X 2.7 X 1.4
  • Ripple & Noise (mV p-p): 200
  • Load Regulation (±): 3%
  • Line Regulation (±): 1%
  • Efficiency: 90%
  • Agency Approvals: UL/CUL/CE/FCC/TUV/CB
  • Frequency Range: 47 ~ 63 Hz
  • Universal AC input / Full range
  • Low leakage current < 50 amps
  • Protections: short circuit, over voltage, overload
  • 2 pole AC inlet IEC320-C8
  • AC power cord not included (recommend 2-Conductor power cord P/N 189587)
  • Fully enclosed plastic case
  • Medical safety approved(2 x MOPP between primary and secondary)
  • Class II power (w/o ground pin)
  • LED indicates power on
  • No load power consumption < 0.1 watts
  • ERP step 2 compliant (level V)
  • Meets EISA 2007 Energy Independence and Security Act
  • Optional lock type DC plug
  • 3 year warranty

Product Identification

Type:Switching
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:GSM120

Compliance

Agency Approvals:UL, CUL, TUV, CB, CE, FCC, EN, EAC, UKCA

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.38 in.
Width:2.64 in.
Length:6.57 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.40 A

Output

Number of Outputs:1
Output Connector Diameters:DIN-4 Male
Output Connector Type:DIN-4 Male
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:5 A

Features

Polarity:N/A
Product Note:Level VI
Minimum Isolation Voltage:4000V
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Efficiency:90%
Power Rating:120 W
,
