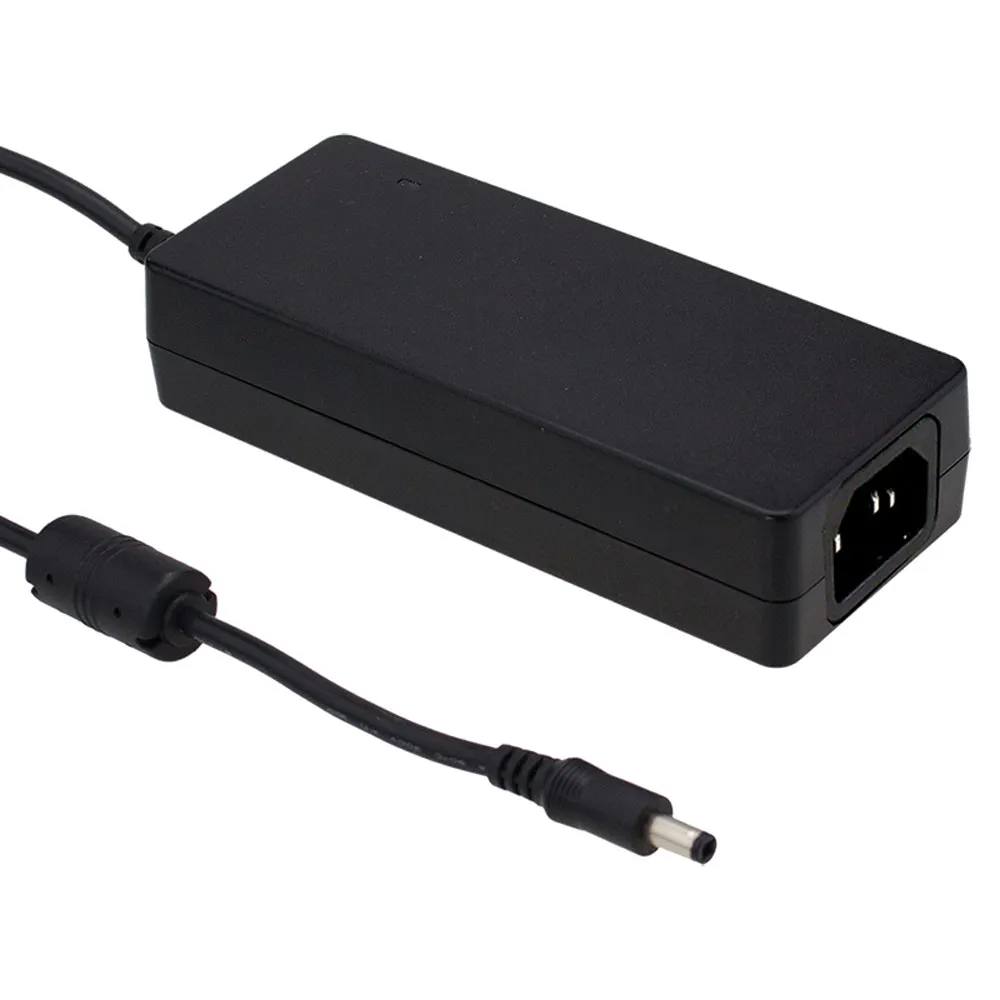

AC to DC Switching Medical Table Top Power Supply 24 Volts 3.75 Amps 90 Watt

24 Volts @ 3.75 Amps

Specifications

  • Output Power (W): 90
  • Size (L x W x H) inches: 5.7 X 2.4 X 1.3
  • Ripple & Noise (mV p-p): 200
  • Load Regulation (±): 3%
  • Line Regulation (±): 1%
  • Efficiency: 90%
  • Agency Approvals: UL/CUL/CE/FCC/TUV
  • Frequency Range: 47 ~ 63 Hz
  • Voltage Range: 80 ~ 264 VAC
  • Universal AC input / Full range
  • Energy efficiency level VI
  • Built in active PFC function
  • Fanless design with -30~+70 °:C
  • Low leakage current < 100 uA
  • Protections: short circuit, over voltage, overload, over temperature
  • 3 pole AC inlet IEC320-C14
  • Plug: 4 pin DIN
  • Suitable for BF application with appropriate system consideration
  • Medical safety approved (2 x MOPP between primary and secondary)
  • Class I power (with ground pin)
  • LED indicates power on
  • No load power consumption <0.15 watts
  • Meets EISA 2007 Energy Independence and Security Act
  • 100% full load burn in test
  • Fully enclosed plastic case
  • 3 year warranty

Note: AC cord not included (recommended: 2291759)

Product Identification

Type:Switching
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:GSM90

Compliance

Agency Approvals:UL, CUL, TUV, CB, CE, FCC, EN, EAC, UKCA

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.26 in.
Width:2.36 in.
Length:5.71 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.30 A

Output

Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:3.75 A

Features

Polarity:Center Positive
Product Note:Level VI
Minimum Isolation Voltage:4000V
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:90%
Power Rating:90 W
,
