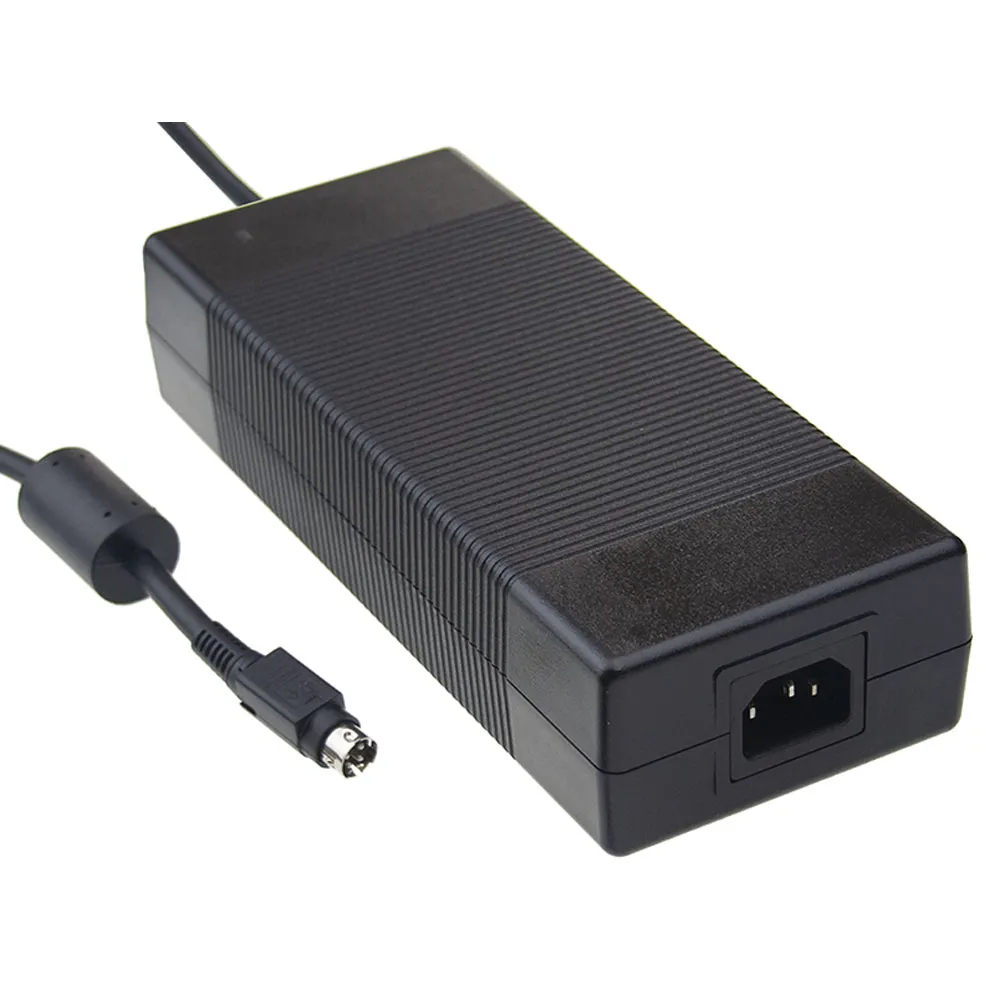

AC to DC Switching Medical Table Top Power Supply 20 Volts 11 Amps 220 Watt

20 Volts @ 11 Amps

Specifications

  • Output Power (W): 220
  • Size (L x W x H) inches: 8.3 X 3.4 X 1.8
  • Ripple & Noise (mV p-p): 150
  • Load Regulation (±): 4%
  • Line Regulation (±): 1%
  • Efficiency: 92%
  • Agency Approvals: UL/CUL/CE/FCC/TUV
  • Frequency Range: 47 ~ 63 Hz
  • Voltage Range: 80 ~ 264 VAC
  • Universal AC input / Full range
  • Energy efficiency level VI
  • Built in active PFC function
  • Low leakage current < 100 uA
  • Protections: short circuit, over voltage, overload, over temperature"
  • Fanless design with -30~+70"°"C"
  • 3 pole AC inlet IEC320-C14
  • Plug:4 pin DIN
  • Suitable for BF application with appropriate system consideration
  • Medical safety approved (2 x MOPP between primary and secondary)
  • Class I power (with ground pin)
  • LED indicates power on
  • No load power consumption < 0.15 watts
  • Meets EISA 2007 Energy Independence and Security Act
  • 100% full load burn in test
  • Fully enclosed plastic case
  • 3 year warranty

    • Product Identification

    Type:Switching
    Product Type:AC to DC Power Supply SMPS
    Manufacturer Series:GSM220

    Compliance

    Agency Approvals:UL, CUL, TUV, CB, CE, FCC, EN, EAC, UKCA

    Dimensions & Appearance

    Style:Desktop
    Color:Black
    Height:1.81 in.
    Width:3.35 in.
    Length:8.27 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Packaging

    Packaging:Carton

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:80 VAC to 264 VAC
    Maximum Input Current:4 A

    Output

    Number of Outputs:1
    Output Connector Diameters:DIN-4 Male
    Output Connector Type:DIN-4 Male
    Output Voltage:20 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:11 A

    Features

    Polarity:N/A
    Product Note:Level VI
    Minimum Isolation Voltage:4000V
    AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
    Efficiency:92%
    Power Rating:220 W
    ,
