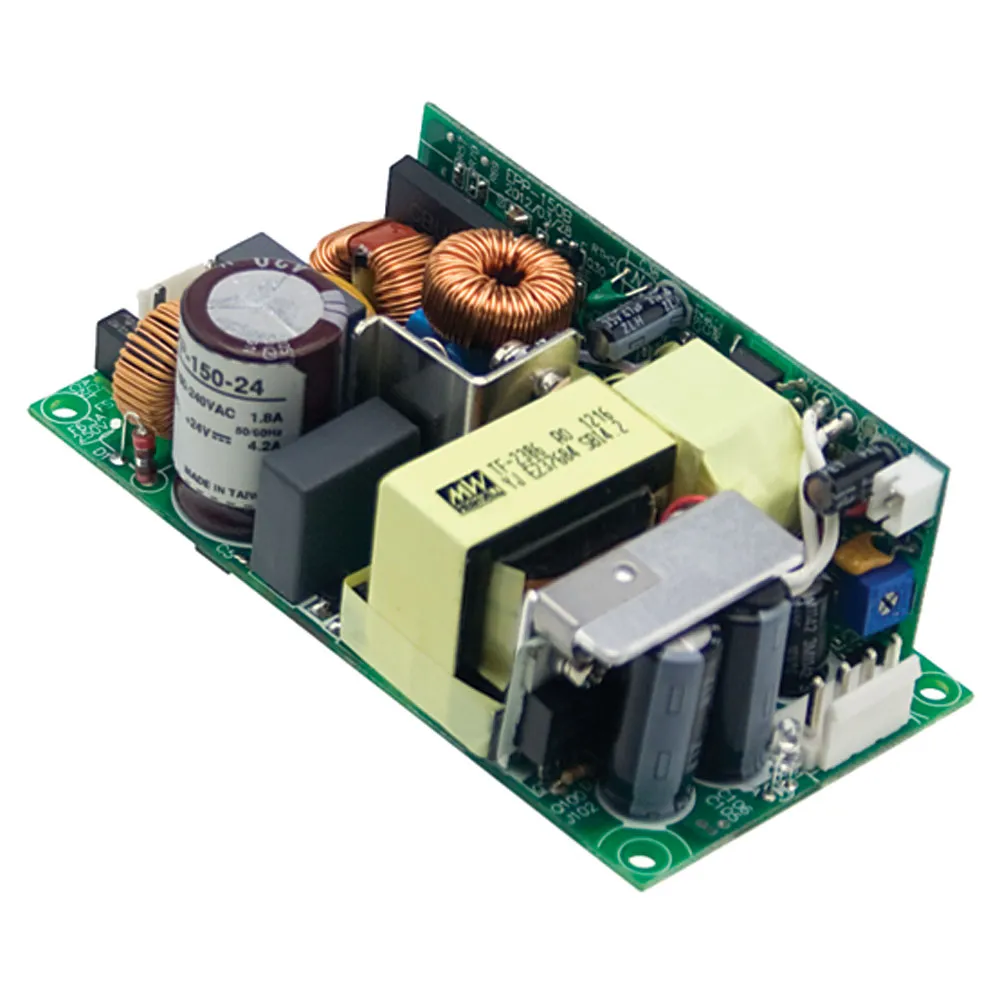

100-150W Single Output Open Frame Power Supply with PFC Function

27 Volts @ 3.71 Amps (5.56 Amps w/ 20 CFM fan)

Features

  • 4" x 2" compact size
  • Universal AC input / full range
  • Built-in active PFC function
  • High efficiency up to 92%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 100 Watts free air convection, 150 watts with 20 CFM forced air
  • LED indicator for power on
  • No load power consumption <0.5W
  • Built-in 12V/0.3A auxiliary output
  • 3 year warranty

    • Product Identification

    Manufacturer Series:EPP-150

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.10 in.
    Width:2 in.
    Length:4 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.8 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B4P-VH or equiv.
    Output Voltage:27 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:5.56 A

    Features

    PFC Function:Yes
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:92%
    Power Rating:100.17 W
    ,
