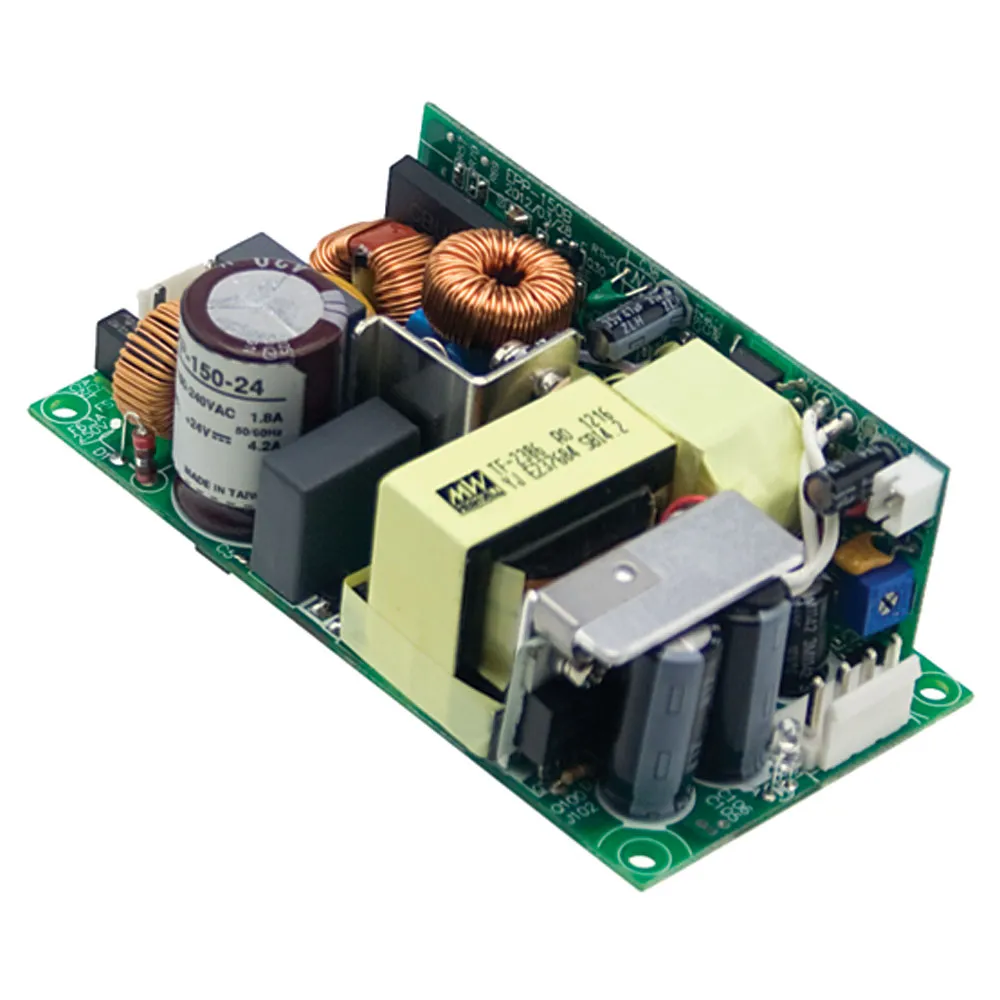

100-150W Single Output Open Frame Power Supply with PFC Function

12 Volts @ 8.4 Amps (12.5 Amps w/ 20 CFM fan)

Features

  • 4" x 2" compact size
  • Universal AC input / full range
  • Built-in active PFC function
  • High efficiency up to 91.5%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 100 Watts free air convection, 150 watts with 20 CFM forced air
  • LED indicator for power on
  • No load power consumption <0.5W
  • Built-in 12V/0.3A auxiliary output
  • 3 year warranty

Product Identification

Manufacturer Series:EPP-150

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.10 in.
Width:2 in.
Length:4 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.8 A

Output

Number of Outputs:1
Output Connector Type:JST B4P-VH or equiv.
Output Voltage:12 VDC
Additional Output Voltages (VDC):N/A
Output Current:12.50 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:91.5%
Power Rating:100.8 W
,
