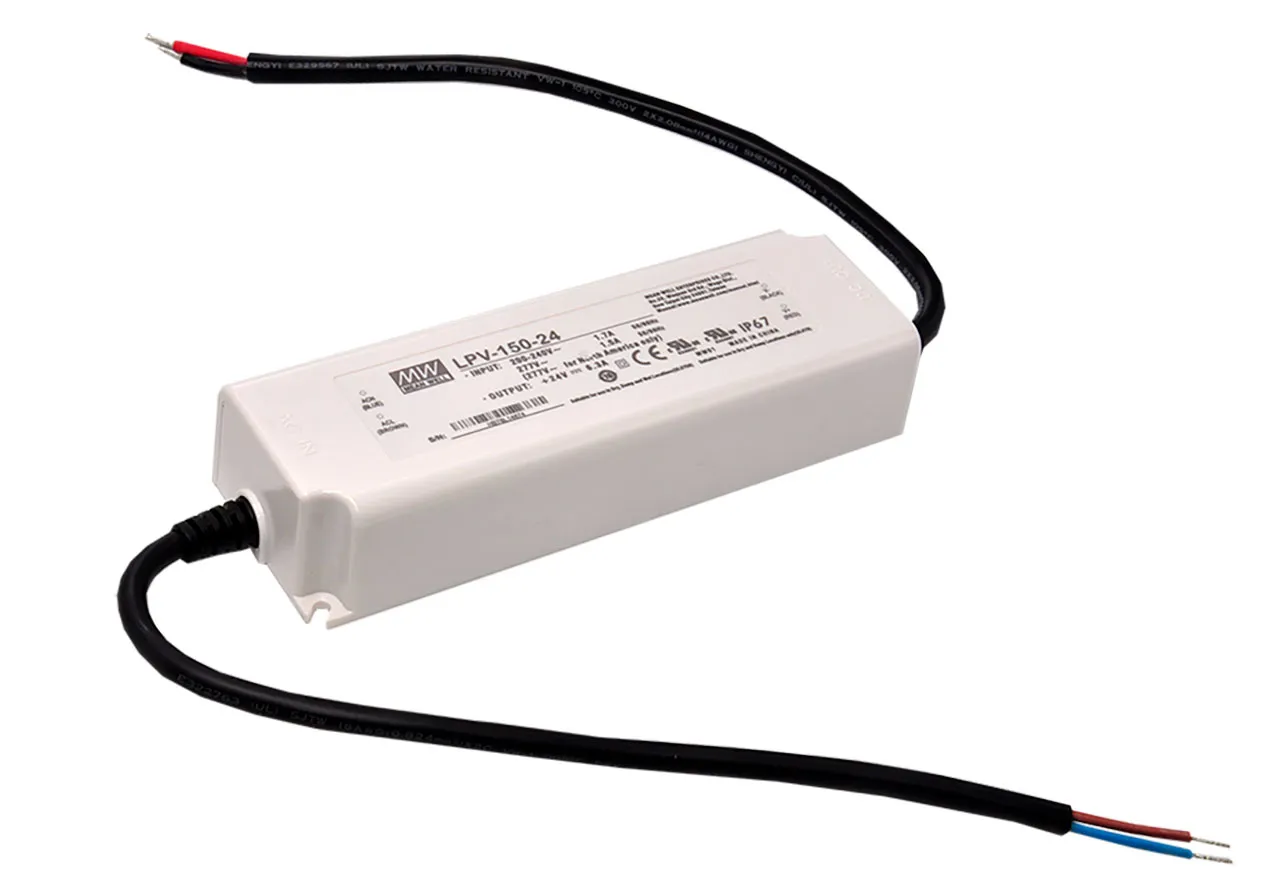

AC to DC Switching Enclosed Power Supply 24 Volts 6.3 Amps 151.2 Watts

24 Volts @ 6.3 Amps

Specifications

  • Output Power (W): 120
  • Size (Dia x H) inches: 7.5 X 2.5 X 1.5
  • Ripple & Noise (mV p-p): 200
  • Line Regulation (±): 1%
  • Load Regulation (±): 2%
  • Efficiency: 89%
  • Agency Approvals: UL/CUL/CE
  • Constant voltage design
  • 180 ~ 305 VAC input only
  • Protections: short circuit, over voltage, over temperature
  • Classs II power unit, no FG
  • OCP point adjustable through internal potentiometer
  • Fully encapsulated IP67 rated
  • Cooling by free air convection
  • 100%full burn-in test
  • Low cost high reliability
  • Suitable for use in dry, damp, wet locations
  • Suitable for LED lighting and moving sign applications
  • 2 year warranty

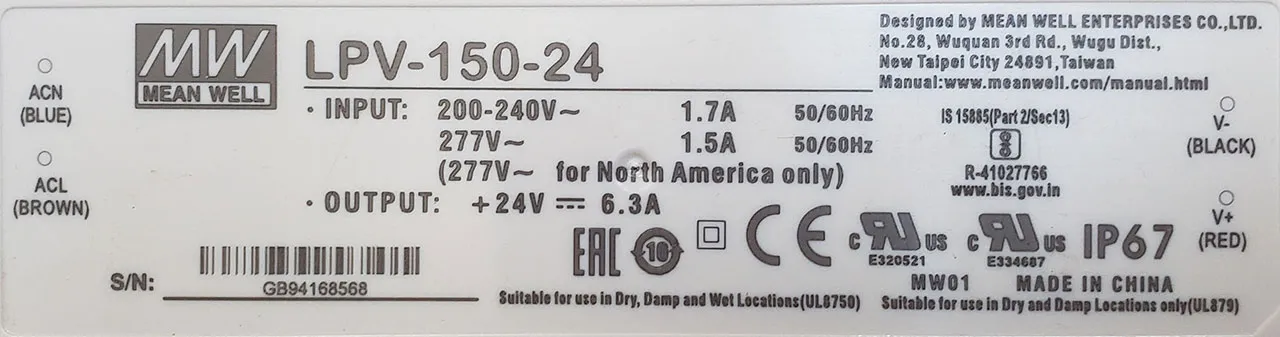

LPV-150-24 Power Spec Label

Overview

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LPV-150

Compliance

Agency Approvals: CE, CUL, EAC, EN, UL

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.48 in.
Width:2.48 in.
Length:7.52 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:65°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 305 VAC
Maximum Input Current:1.7 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:24 VDC
Output Range:N/A
Output Current:6.30 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
IP Rating:IP67
Efficiency:89%
Power Rating:151.2 W
,
