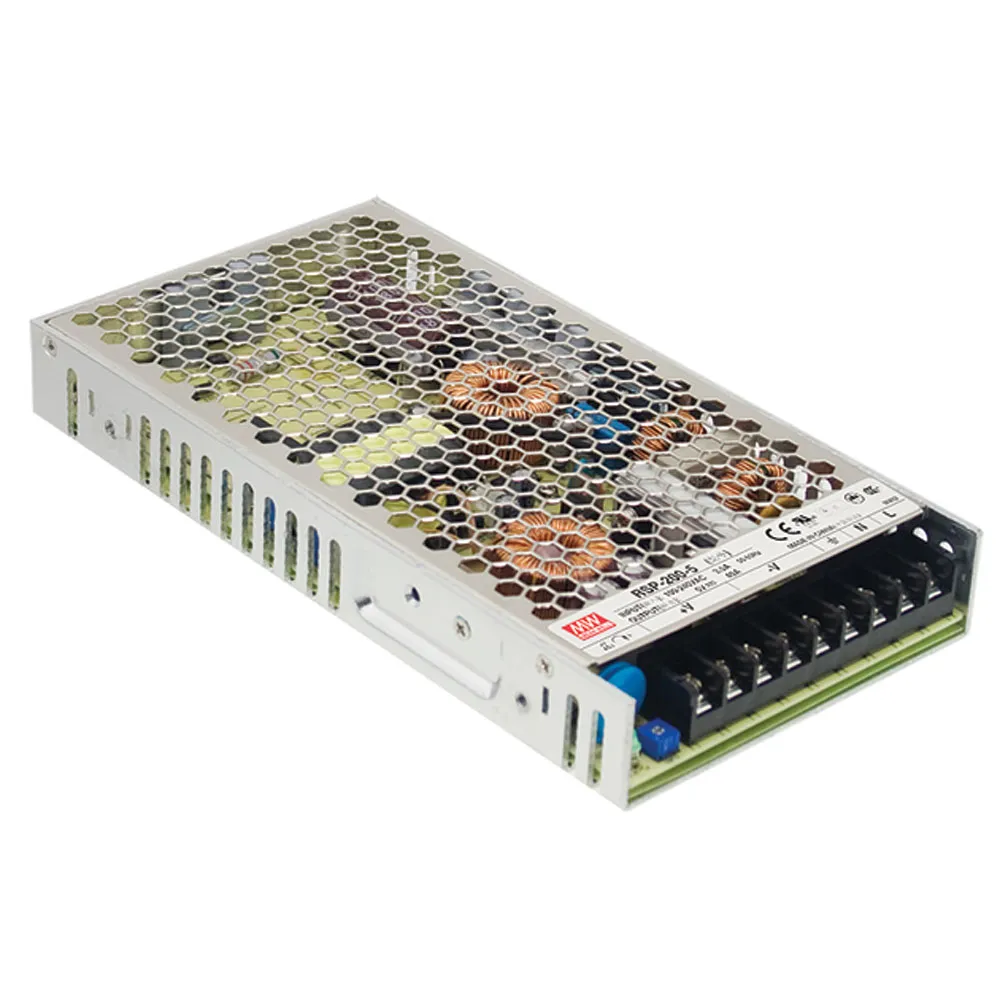

AC to DC Switching Enclosed Power Supply Single Output with PFC Function 27 Volts 7.5 Amps 202.5 Watts

27 Volts @ 7.5 Amps

Specifications

  • Output Power (W): 202.5
  • Size (L x W x H) inches: 8.5 X 4.5 X 1.2
  • Ripple & Noise (mV p-p): 200
  • Line Regulation (±): 0.2%
  • Load Regulation (±): 0.5%
  • Efficiency: 89%
  • Frequency Range: 47-63 Hz
  • Voltage Range 88-264 VAC
  • Agency Approvals: UL/CUL/TUV/CCC/CB/CE
  • Universal AC input / Full range
  • Built in active PFC function
  • Protections: short circuit, over voltage, over temperature, overload
  • Cooling by free air convection
  • LED indicator for power on
  • 3 year warranty

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:RSP-200

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, IEC/EN 61558-1

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.2 in.
Width:4.5 in.
Length:8.5 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:3.5 A

Output

Number of Outputs:1
Output Voltage (Channel 1):27 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:27 VDC
Output Current (Channel 1):7.5 A
Output Current:7.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:202.5 W
,
