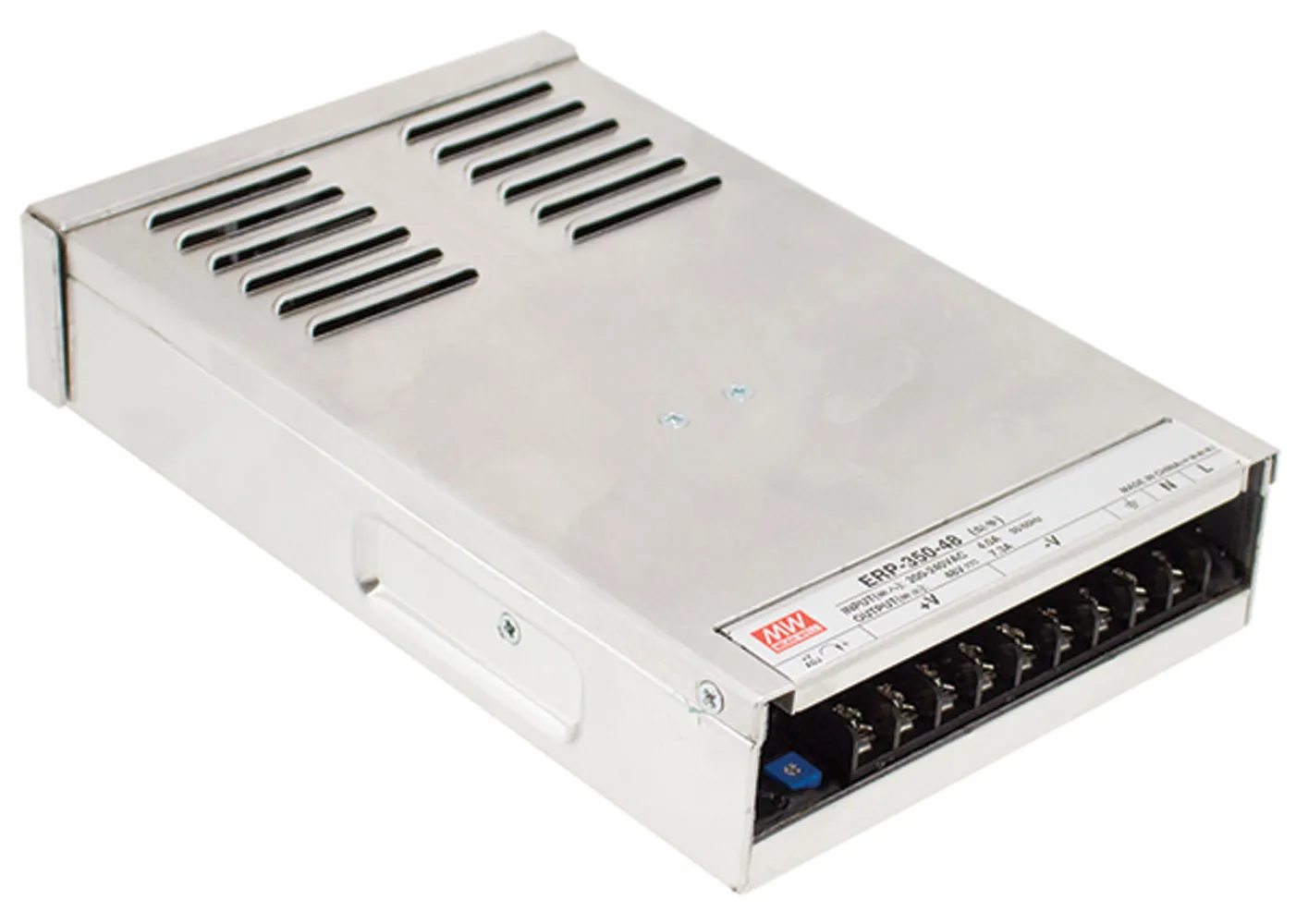

AC to DC Switching Enclosed Power Supply Single Output 48 Volts 7.3 Amps 350.4 Watts

48 Volts @ 7.3 Amps

Specifications

  • Output Power (W): 350.4
  • Size (L x W x H) inches: 8.7 X 5.1 X 1.9
  • Ripple & Noise (mV p-p): 240
  • Line Regulation (±): 0.5%
  • Load Regulation (±): 0.5%
  • Efficiency: 90%
  • Frequency Range (Hz): 47 to 63
  • Voltage Range (VAC): 180 to 264
  • Agency Approvals: UL/CUL/CB
  • AC input 180-264 VAC
  • Withstands 300 VAC surge input for 5 seconds
  • Protections: short circuit, over voltage, over temperature, overload
  • Cooling by free air convection
  • LED indicator for power on
  • 100% fully load burn in test
  • Semi potted designed against rain splash
  • 3 year warranty

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:ERP-350

Compliance

Agency Approvals: CB, CUL, EAC, EN, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.9 in.
Width:5.1 in.
Length:8.68 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 264 VAC
Maximum Input Current:4 A

Output

Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current (Channel 1):7.3 A
Output Current:7.30 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:90%
Power Rating:350.4 W
,
