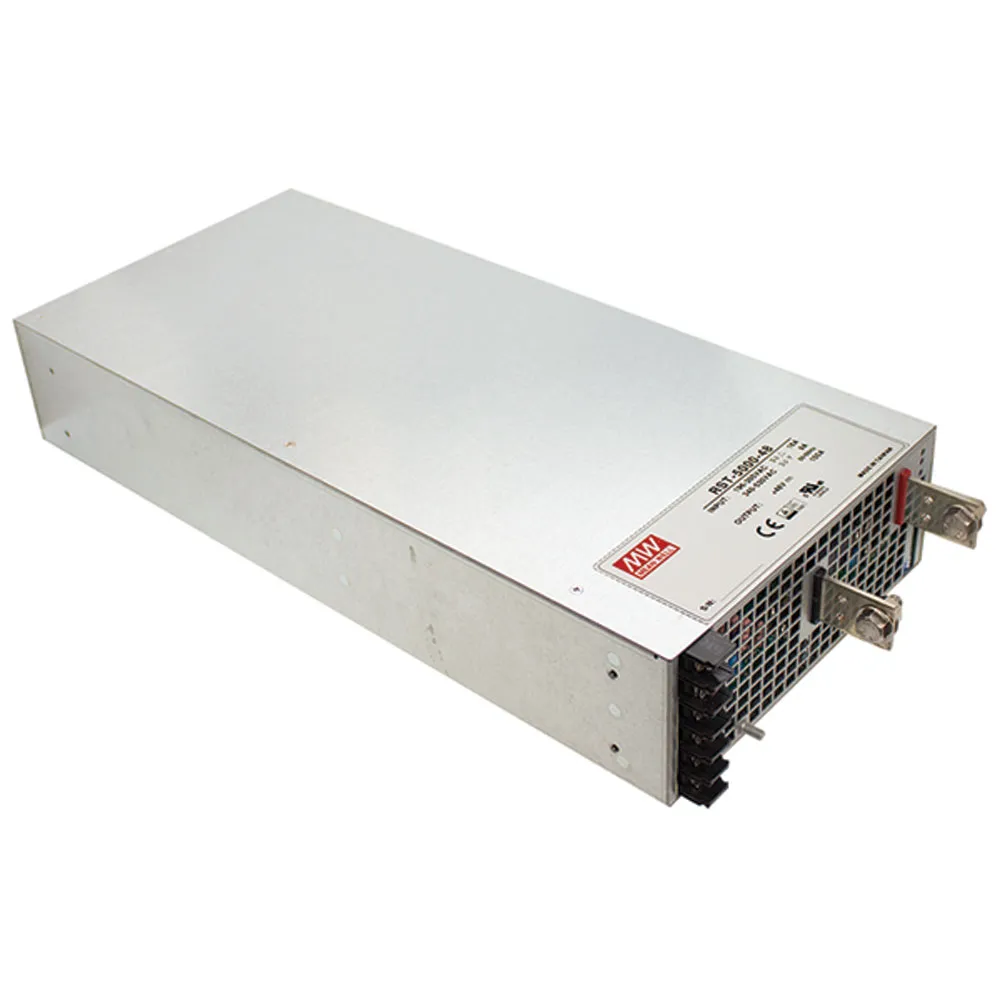

AC to DC Switching Enclosed Power Supply 48 Volts 105 Amps 5040 Watts with PFC Function

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$1559.900

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$1559.900	-	-
5+	$1486.000	73.90	4.74%
10+	$1420.300	139.60	8.95%
20+	$1379.300	180.60	11.58%

48 Volts @ 105 Amps

Output Power (W): 5040
Size (L x W x H) inches: 18.9 X 8.3 X 3.3
Ripple & Noise (mV p-p): 200
Load Regulation (±): 0.5%
Line Regulation (±): 0.5%
Efficiency: 91%
Agency Approvals: UL/CUL/TUV/CE/CB
Built-in active Power Factor Correction (PFC)
Protections: short circuit, over voltage, over, over temperature, overload, fan fail
Output voltage can be trimmed between 20 to 120% by 1 to 6 VDC external control signal
Output current can be trimmed between 20 to 100% by 1 to 5 VDC external control signal
Current sharing up to 3 units
Forced air cooling by built with speed control function
Alarm signal output (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
Built-in 12 volt @ 0.1 amp for ON/OFF control
Built in remote ON-OFF control
Built in remote sense function
5 year warranty

Product Identification

Type:Auto Switching SMPS

Manufacturer Series:RST-5000

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Style:Enclosed

Color:Silver

Height:3.29 in.

Length:18.1 in.

Width:8.3 in.

Minimum Operating Temperature:-30°C

Maximum Operating Temperature:70°C

Input Frequency:47 Hz to 63 Hz

Input Voltage:196 VAC to 305 VAC, 340 VAC to 530 VAC

Maximum Input Current:15 A

Number of Outputs:1

Output Voltage (Channel 1):48 VDC

Output Connector Type:Lug Terminal Female

Output Voltage:48 VDC

Output Current (Channel 1):105 A

Output Current:105 A

PFC Function:Yes

Minimum Isolation Voltage:3000V

Efficiency:91%

Power Rating:5040 W
