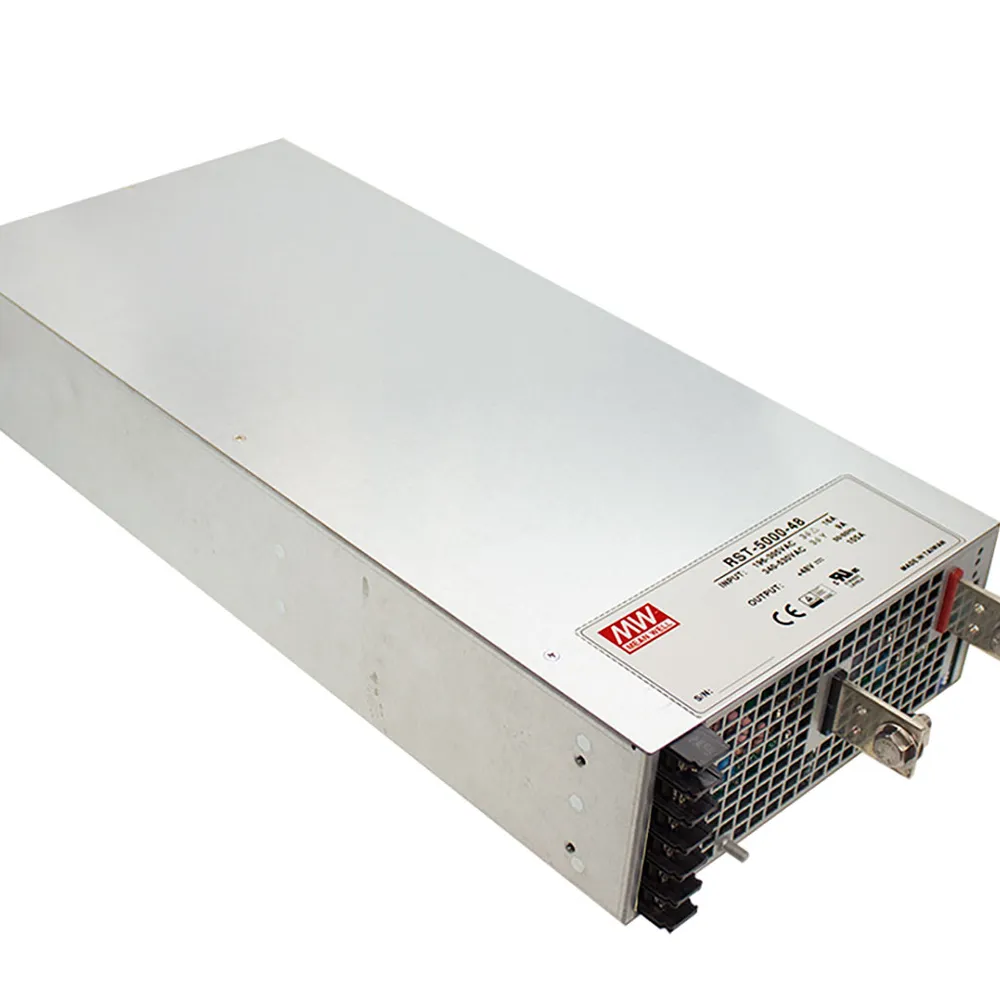

AC to DC Switching Enclosed Power Supply 36 Volts 138 Amps 4968 Watts 3-Phase Input
Features
- 3-phase 3-wire 196-305VAC or 3-phase 4-wire 340-530VAC wide input range
- Built-in active PFC function
- High efficiency up to 90.5%
- Forced air cooling by built-in DC fan
- Output voltage and constant current level programmable
- Active current sharing up to 20,000W (3+1)
- Built in remote ON-OFF control
- Built in remote sense function, auxiliary power, alarm signal
- Protections: short circuit, overload, over voltage, over temperature, fan fail
- 5 year warranty
Overview
RST-5000 is a 5KW single output enclosed type AC/DC oiwer supply. This series operates for the wide range three phase AC input (3 phase 3-wire / (delta) 196-305VAC or 3 phase 4-wire / (wye) 340-530VAC) and offers the models with the DC output mostly in demand from the industry. Each model is cooled by an internal fan with fan speed control, working for the temperature up to 70C. Moreover, RST-5000 provides vast design flexibility by equipping various built-in functions such a sthe output programming, active current sharing, remote ON-OFF control, auxiliary power, and more.
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:RST-5000
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:3.29 in.
Length:18.1 in.
Width:8.3 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:196 VAC to 305 VAC, 340 VAC to 530 VAC
Maximum Input Current:15 A
Output
Number of Outputs:1
Output Voltage (Channel 1):36 VDC
Output Connector Type:Lug Terminal Female
Output Voltage:36 VDC
Output Current (Channel 1):138 A
Output Current:138 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:89.5%
Power Rating:4968 W
