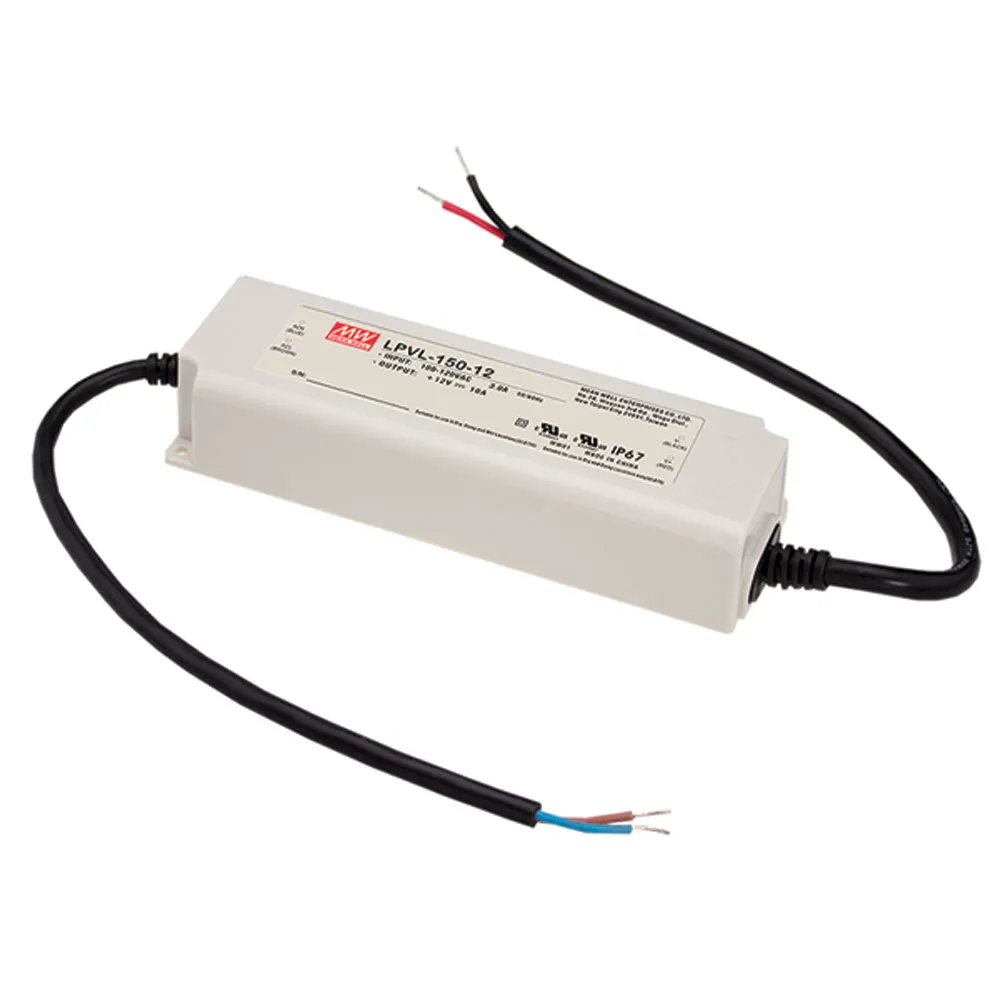

AC to DC Switching Enclosed Power Supply 12 Volts 10 Amps 120 Watts
12 Volts @ 10 AmpsFeatures
- Output Power (W): 120
- Size (Dia x H) inches: 7.5 X 2.5 X 1.5
- Ripple & Noise (mV p-p): 200
- Line Regulation (±): 1%
- Load Regulation (±): 2%
- Efficiency: 87%
- Agency Approvals: UL/CUL/CE
- Constant voltage design
- 90 to 132 VAC input only
- Protections: short circuit, over voltage, over temperature
- Class II power unit, no FG
- OCP point adjustable through internal potentiometer
- Fully encapsulated IP67 rated
- Cooling by free air convection
- 100%full burn-in test
- Low cost high reliability
- Suitable for use in dry, damp, wet locations
- Suitable for LED lighting and moving sign applications
- 2 year warranty
Overview
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:LPVL-150
Compliance
Agency Approvals: CE, CUL, EAC, EN, FCC, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.46 in.
Width:2.48 in.
Length:7.52 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:65°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 132 VAC
Maximum Input Current:1.7 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Stripped and Tinned
Output Range:N/A
Output Current:10 A
Features
PFC Function:No
Minimum Isolation Voltage:3000V
IP Rating:IP67
Efficiency:87%
Power Rating:120 W
