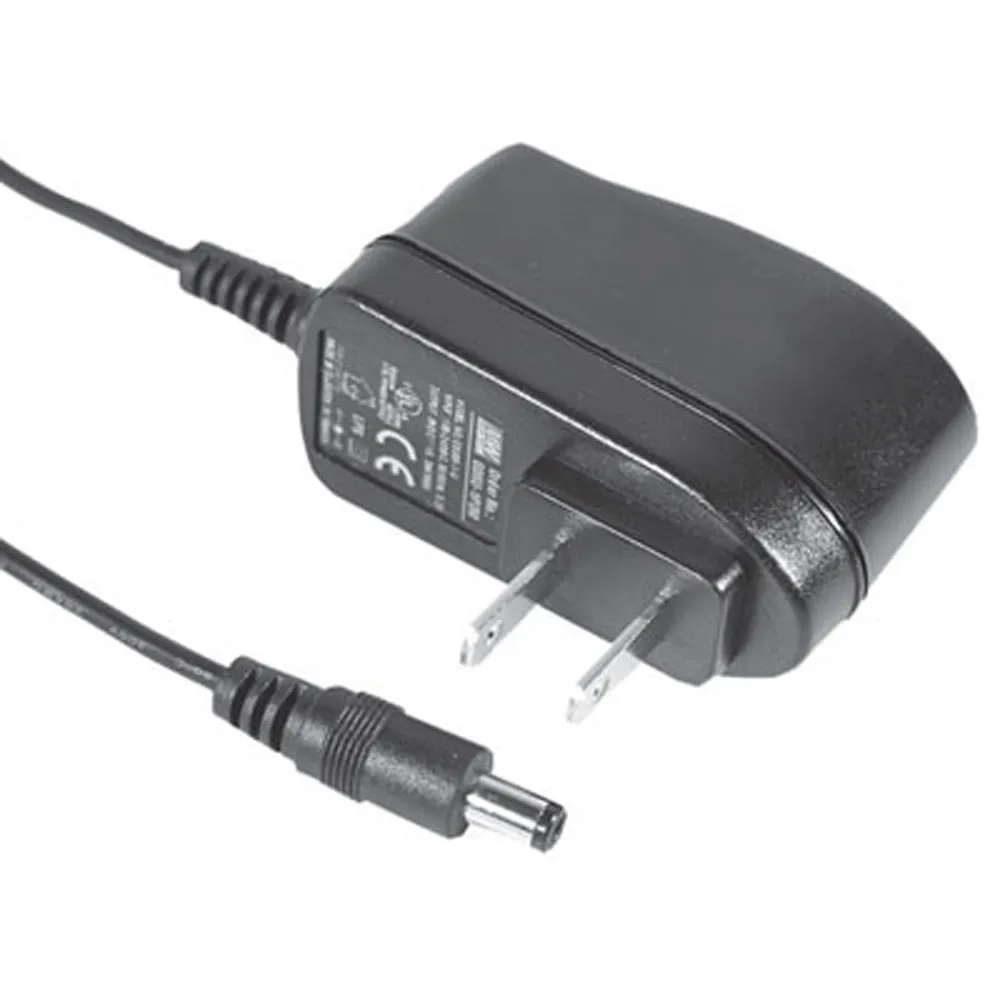

AC-to-DC "Slim-Line" Regulated Switching Wall Adapter

9 Volts @ 0.66 Amps

Features:

  • Output connector: 2.1mm x 5.5mm female center positive
  • Input voltage: 90-264VAC @ 47-63Hz
  • 2-wire AC input
  • Output cord length: 6 feet
  • Color: Black
  • 2-year warranty
  • Size: 2.6"H x 1.3"W x 1.9"D
  • Weight: 0.2 lbs.
  • Certifications: CEC/UL/CUL

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:GS06U

    Compliance

    Agency Approvals: CUL, EAC, FCC, UL

    Dimensions & Appearance

    Color:Black
    Style:Slimline Wall Mount
    Depth:1.7 in.
    Height:1.3 in.
    Length:2.6 in.

    Operating conditions

    Minimum Operating Temperature:0°C
    Maximum Operating Temperature:50°C

    Packaging

    Packaging:Carton

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Connector:NEMA 1-15P
    Maximum Input Current:0.2 A
    Input Voltage:90 VAC to 264 VAC

    Output

    Number of Outputs:1
    Output Connector Diameters:2.1mm x 5.5mm
    Output Voltage:9 VDC
    Output Connector Type:Cylindrical Female
    Output Current:0.66 A

    Features

    Polarity:Center Positive
    Product Note:Level VI
    AC Power Cord:N/A
    Minimum Isolation Voltage:4242V
    Efficiency:74%
    Power Rating:6 W
    ,
