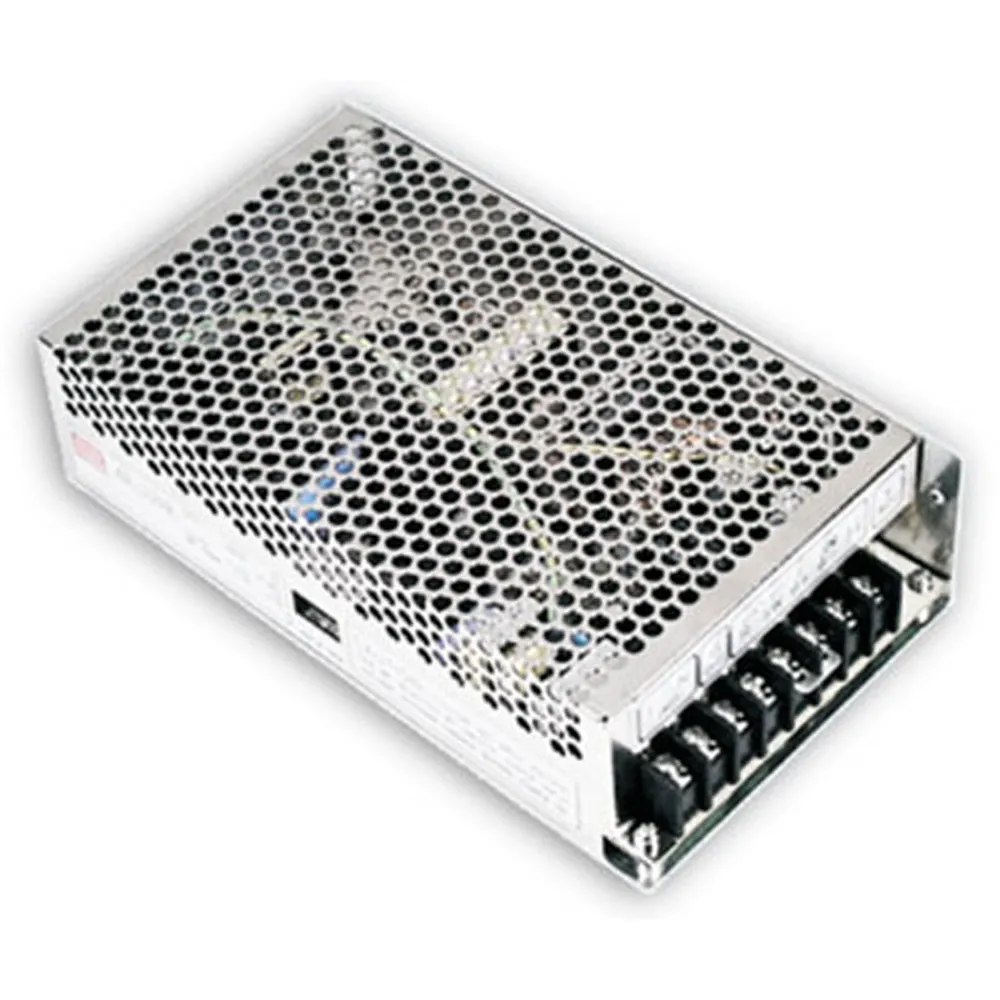

155W Dual Output with Battery Charger(USP Function)


CH1: 54 Volts @ 2.3 Amps
CH2: 5 Volts @ 3 Amps
CH3:53.5 Volts @ 0.2 Amps

Features:
  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage
  • Battery low and battery polarity protection
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC 67KHz, PWM 134KHz
  • 2 years warranty

Product Identification

Type:Switching SMPS
Manufacturer Series:ADD-155
Product Type:AC to DC Power Supply

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:2 in.
Width:4.3 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Output Current (Channel 3):0.20 A
Output Voltage (Channel 2):5 VDC
Number of Outputs:3
Output Voltage (Channel 3):53.5 VDC
Output Current (Channel 2):3 A
Additional Output Voltages (VDC):5, 53.5
Output Voltage (Channel 1):54 VDC
Output Current (Channel 1):2.3 A
Output Connector Type:Screw Terminal Block
Output Voltage:54 VDC
Output Current:2.50 A

Features

Minimum Isolation Voltage:3000V
Efficiency:81%
Power Rating:149.9 W
,
