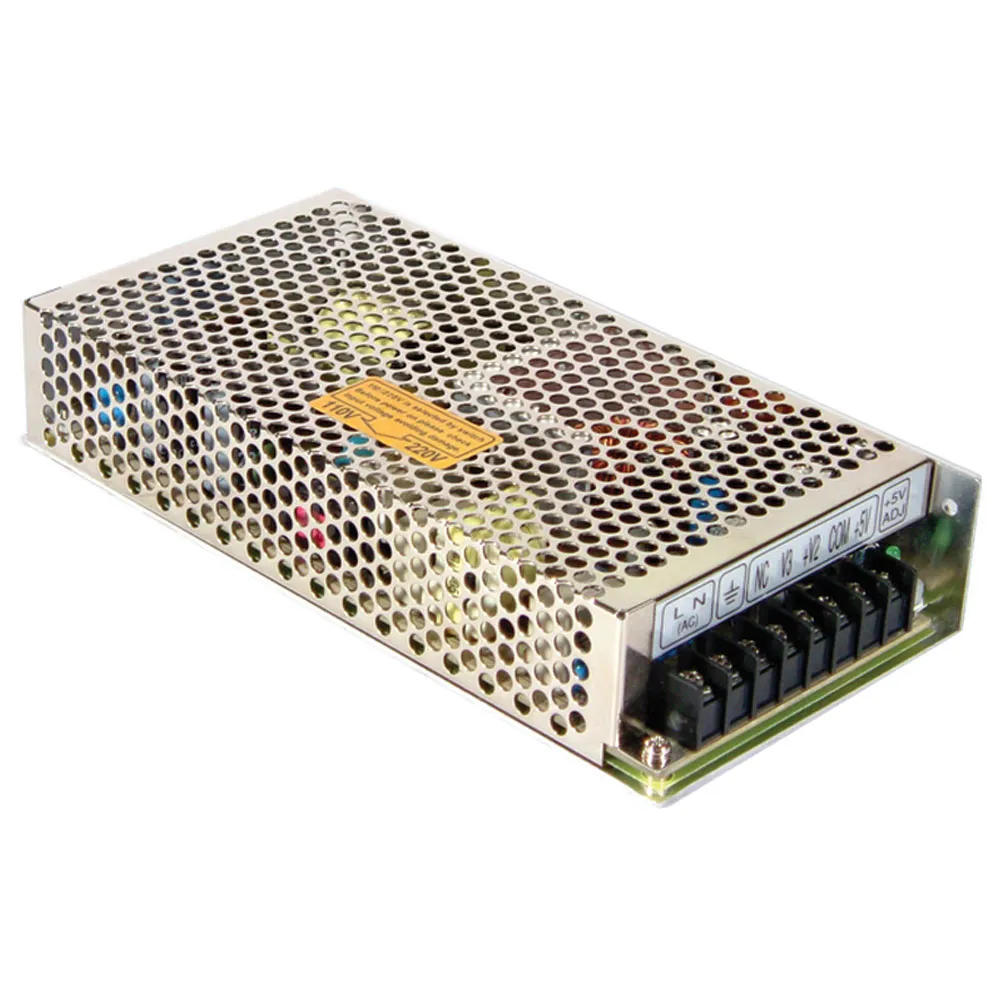

132.5W AC/DC ENCLOSED SWITCHING POWER SUPPLY
+5Volts @ 10Amps (Channel 1)
+15Volts @ 4.5Amps (Channel 2)
-15Volts @ 1Amp (Channel 3)
Specifications:
- Size (L x W x H) (inches): 7.8 x 3.9 x 1.5
- Ripple and Noise (mV p-p): 80
- Load Regulation: 1.0%
- Line Regulation: 0.5%
- Input: 88-264VAC @ 47-63Hz
- 5G Vibration
- Able to withstand 300VAC surge input for 5 seconds
- Short-circuit/overload/overvoltage protection
- 3-year warranty
- Certifications: UL/CUL/TUV/CE/CB
Product Identification
Type:Switch Selectable SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RT-125
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:3 A
Output
Number of Outputs:3
Output Current (Channel 3):1 A
Output Voltage (Channel 3):-15 VDC
Output Voltage (Channel 1):5 VDC
Output Voltage (Channel 2):15 VDC
Output Current (Channel 2):4.5 A
Output Voltage:5 VDC
Additional Output Voltages (VDC): -15, 15
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):10 A
Output Current:10 A
Features
Minimum Isolation Voltage:3000V
Efficiency:81%
Power Rating:132.5 W
