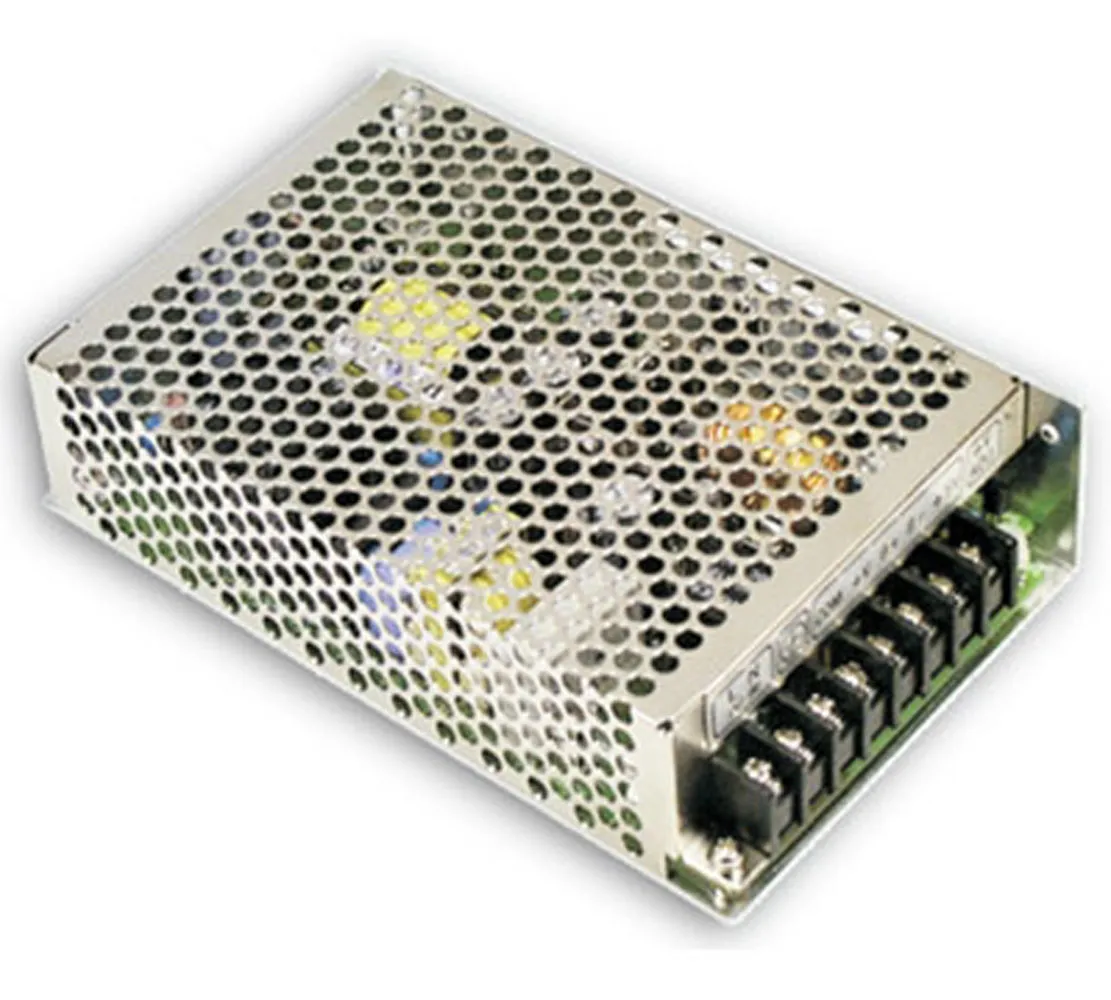

55W Dual Output with Battery Charger(USP Function)
CH1: 27.6 Volts @ 1.3 Amps
CH2: 5 Volts @ 3 Amps
CH3:26.5 Volts @ 0.16 Amps
Features:- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protections
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 2 years warranty
CH1: 27.6 Volts @ 1.3 Amps
CH2: 5 Volts @ 3 Amps
CH3:26.5 Volts @ 0.16 Amps
Features:
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protections
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 2 years warranty
Product Identification
Type:Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:ADD-55
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.8 in.
Length:6.3 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:1.6 A
Output
Output Current (Channel 3):0.16 A
Output Voltage (Channel 2):5 VDC
Number of Outputs:3
Output Voltage (Channel 3):26.5 VDC
Output Current (Channel 2):3 A
Additional Output Voltages (VDC):5, 26.5
Output Voltage (Channel 1):27.6 VDC
Output Current (Channel 1):1.3 A
Output Connector Type:Screw Terminal Block
Output Voltage:27.6 VDC
Output Current:2 A
Features
Minimum Isolation Voltage:3000V
Efficiency:74%
Power Rating:55.12 W
