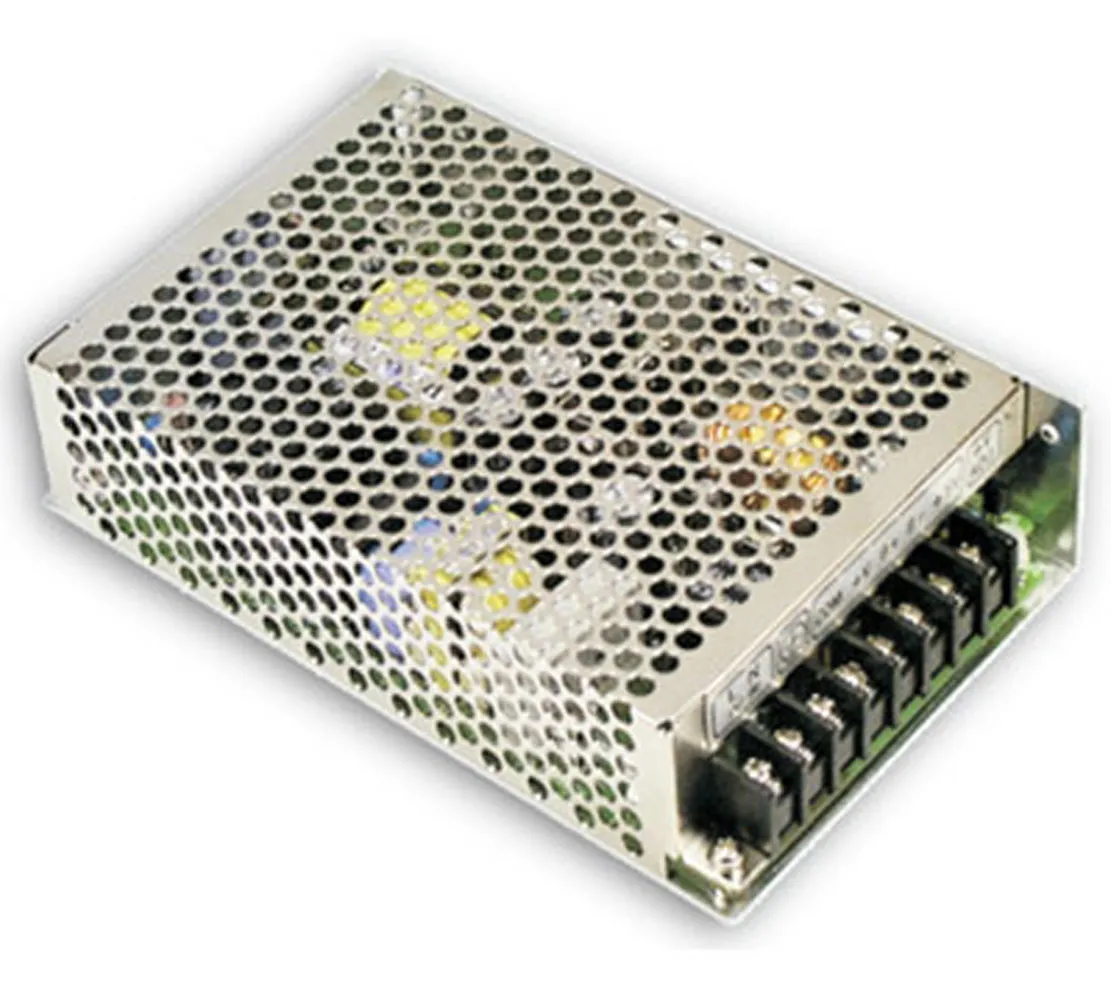

55W Dual Output with Battery Charger(USP Function)
CH1: 13.8 Volts @ 2.5 Amps
CH2: 5 Volts @ 3 Amps
CH3:13.4 Volts @ 0.23 Amps
Features:
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protections
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 2 years warranty
Product Identification
Type:Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:ADD-55
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.8 in.
Length:6.3 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:1.6 A
Output
Output Voltage (Channel 2):5 VDC
Output Current (Channel 3):0.23 A
Number of Outputs:3
Output Voltage (Channel 3):13.4 VDC
Output Current (Channel 2):3 A
Additional Output Voltages (VDC):5, 13.4
Output Voltage (Channel 1):13.8 VDC
Output Voltage:13.8 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):2.5 A
Output Current:3.50 A
Features
Minimum Isolation Voltage:3000V
Efficiency:71%
Power Rating:52.58 W
