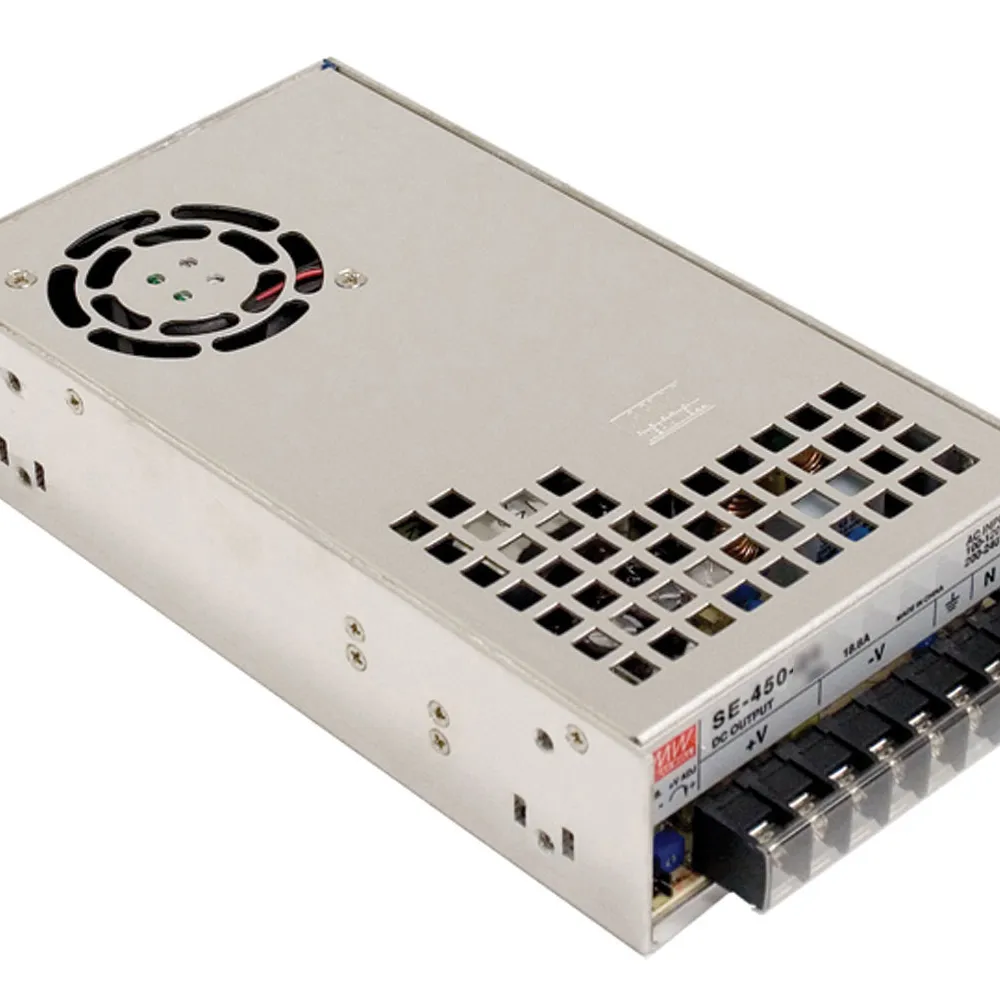

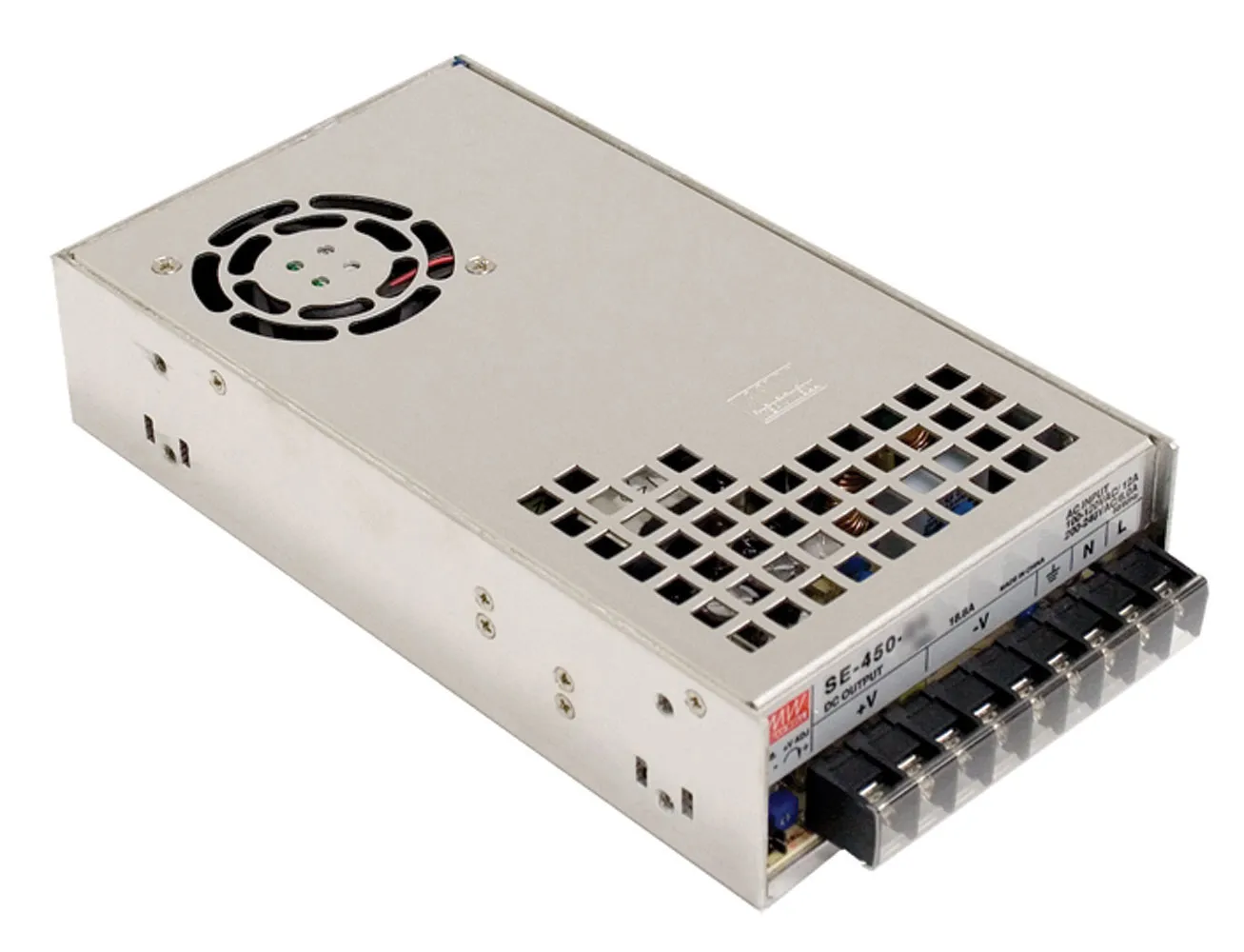

451.2W AC/DC ENCLOSED SWITCHING POWER SUPPLY

48Volts @ 9.4Amps

Specifications:

  • Size (L x W x H) (inches): 8.9 x 4.9 x 2.0
  • Ripple and Noise (mV p-p): 200
  • Load Regulation: 0.5%
  • Line Regulation: 0.2%
  • Input: 90-264VAC @ 47-63Hz
  • Switch-selectable input
  • Protections: Short Circuit/Overload/Overvoltage/Overtemperature
  • 2-year warranty
  • Certifications: UL

Product Identification

Type:Switch Selectable SMPS
Manufacturer Series:SE-450

Compliance

Agency Approvals: BSMI, CB, CE, CUL, EAC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:2 in.
Width:4.9 in.
Length:8.9 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 132 VAC, 180 VAC to 264 VAC
Maximum Input Current:10 A

Output

Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current (Channel 1):9.4 A
Output Current:9.40 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:88%
Power Rating:451.2 W
,
