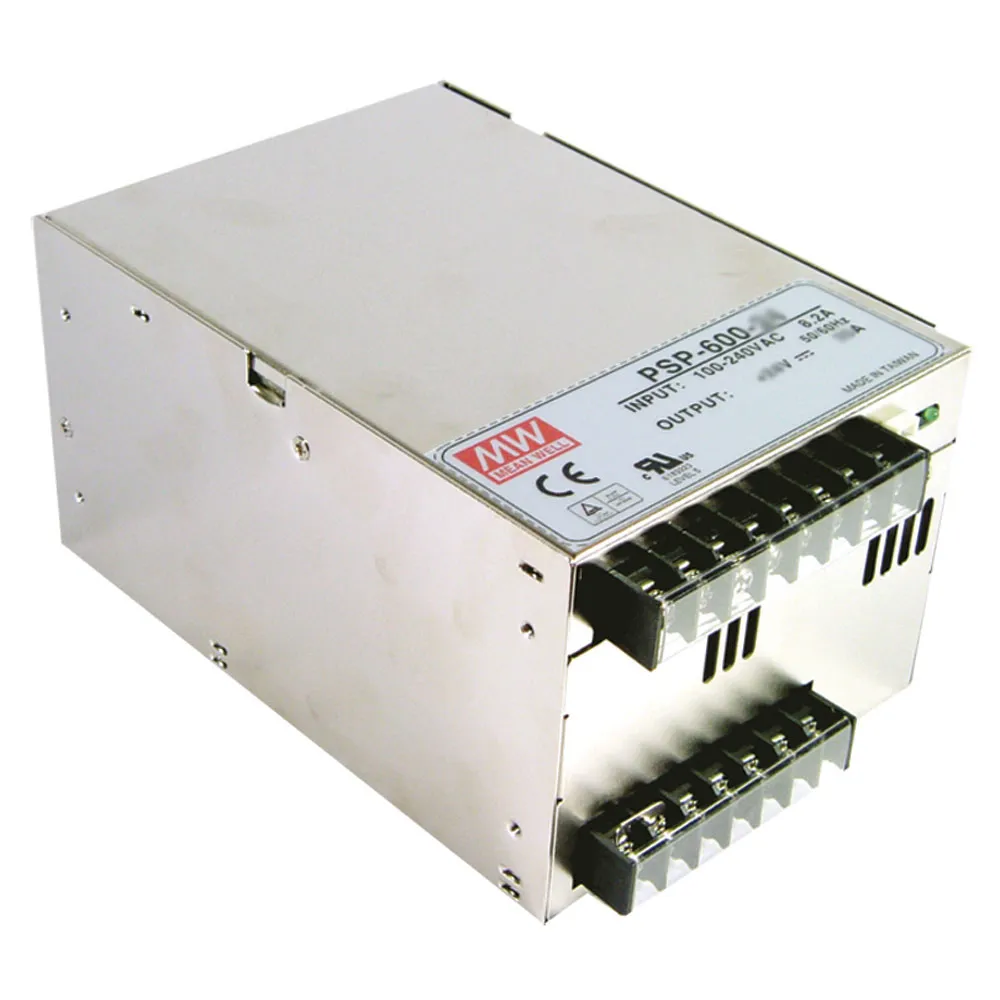

600W AC/DC ENCLOSED SWITCHING POWER SUPPLY

48Volts @ 12.5Amps

Specifications:

  • Size (L x W x H) (inches): 6.7 x 4.7 x 3.7
  • Ripple and Noise (mV p-p): 240
  • Load Regulation: 0.5%
  • Line Regulation: 0.5%
  • Input: 88-264VAC @ 47-63Hz
  • Built-in active Power Factor Correction function
  • Built-in ON-OFF control, remote sense and parallel functions
  • Universal AC input
  • 3-year warranty
  • Certifications: UL/CUL/TUV/CE/CB/PFC

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:PSP-600

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:3.7 in.
Width:4.7 in.
Length:6.7 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:6.8 A

Output

Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current (Channel 1):12.5 A
Output Current:12.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:87%
Power Rating:600 W
,
