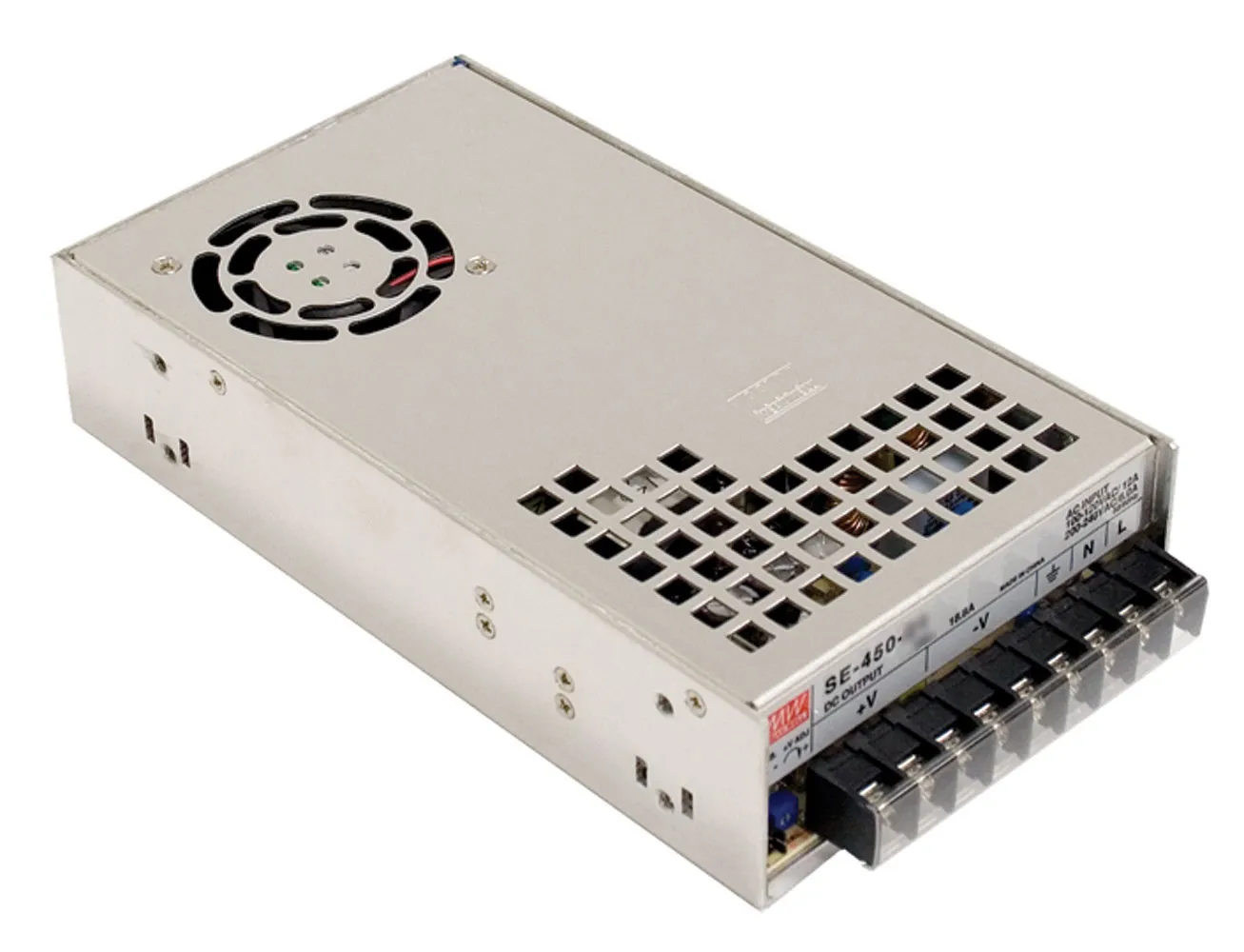

247.5W Single Output Power Supply


3.3 Volts @ 75 Amps

Features:
  • AC input active surge current limiting
  • AC input range selected by switch
  • Protections: Short circuit/ Overload/ Over voltage/ Over temperature
  • Forced air cooling by built-in DC fan
  • Built-in remote sense function
  • LED indicator for power on
  • UL approved
  • Low cost / High reliability
  • 100% full load burn-in test
  • 2 years warranty

Product Identification

Type:Switch Selectable SMPS
Manufacturer Series:SE-450

Compliance

Agency Approvals: BSMI, CB, CE, CUL, EAC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:2 in.
Width:4.9 in.
Length:8.9 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 132 VAC, 180 VAC to 264 VAC
Maximum Input Current:10 A

Output

Number of Outputs:1
Output Voltage (Channel 1):3.3 VDC
Output Voltage:3.3 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):75 A
Output Current:75 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:74%
Power Rating:247.5 W
,
