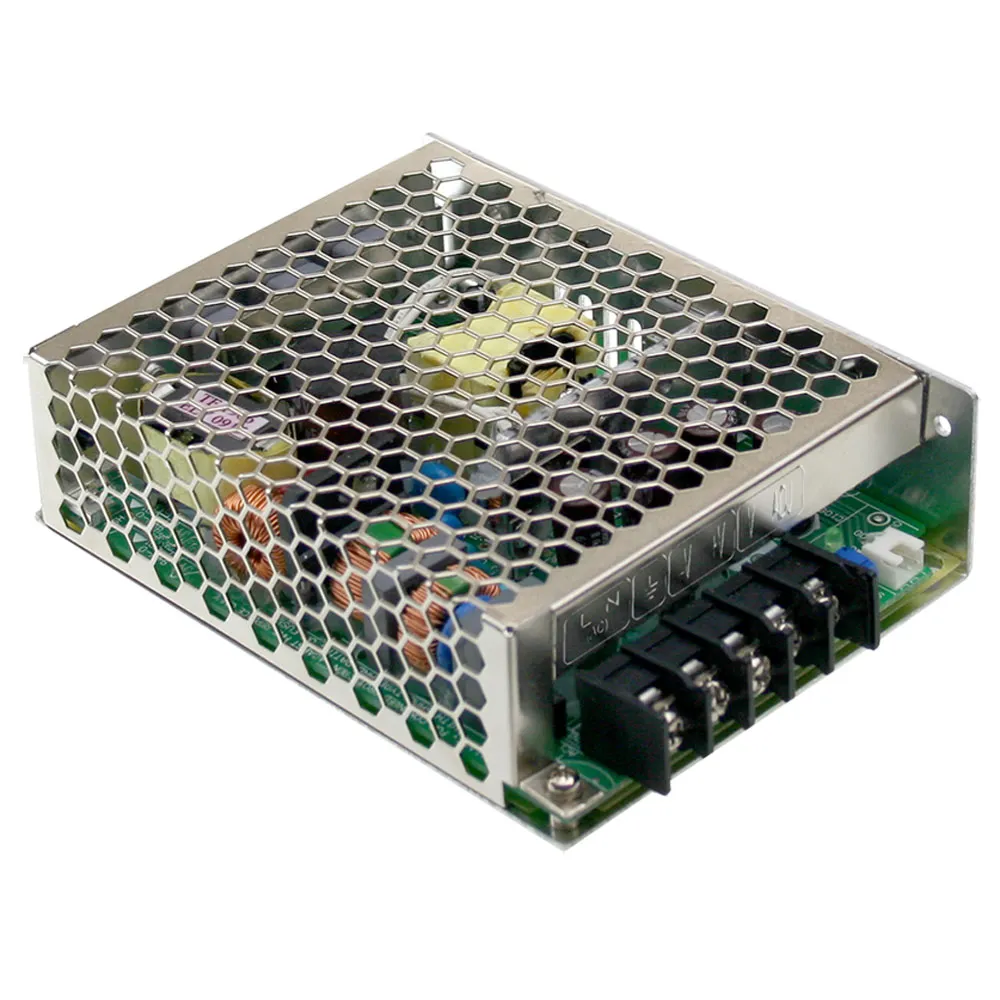

76.8 W Single Output with PFC Function
24 Volts @ 3.2 Amps
Features:
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage
- Protections: Over temperature (optional)
- Built-in remote ON-OFF control
- 5 years warranty
- Withstand 300VAC surge input for 5 seconds
- Cooling by free air convection
- 1U low profile 38mm
- No load power consumption<0.5W
- All using 105°C long life electrolytic capacitors
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:HRP-75
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:5.1 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.2 A
Output
Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):3.2 A
Output Current:3.20 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:88.5%
Power Rating:76.8 W
