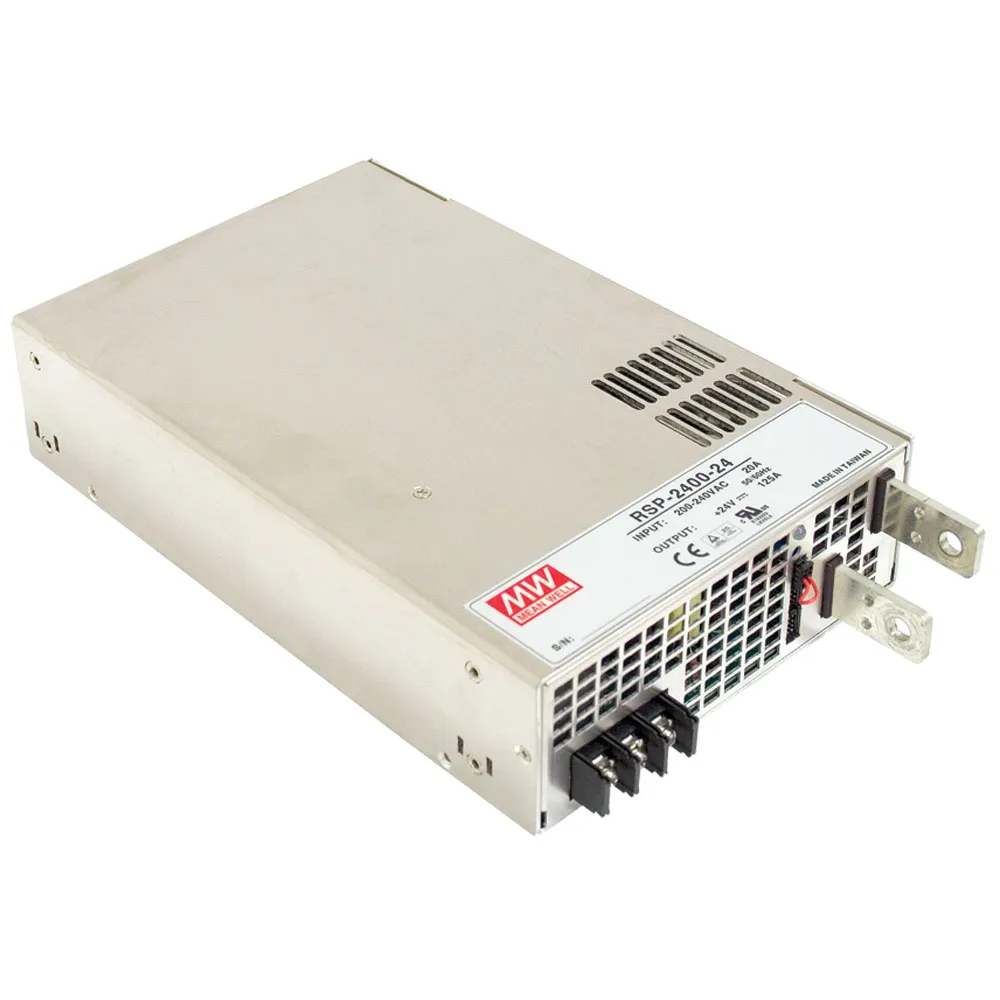

2400W Single Output Power Supply

Output: 24 Volts @ 100 AmpsFeatures:
  • AC input 180 ~ 264VAC
  • AC input active surge current limiting
  • High efficiency up to 90%
  • Built-in active PFC function,PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm
  • Forced air cooling by built-in DC with fan speed control function
  • Output voltage can be trimmed between 20~110% of the rated output voltage
  • High power density 12.5W/inch
  • Current sharing up to 2 units
  • Alarm signal output (relay contact and TTL signal)
  • Built-in 12V/0.1A auxiliary output for remote control
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • 3 years warranty

      • Overview

    Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:RSP-2400

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Length:10.9 in.
    Height:2.5 in.
    Width:7 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:180 VAC to 264 VAC
    Maximum Input Current:15.5 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):24 VDC
    Output Connector Type:Lug Terminal Female
    Output Voltage:24 VDC
    Output Current (Channel 1):100 A
    Output Current:100 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3000V
    Efficiency:90%
    Power Rating:2400 W
    ,
