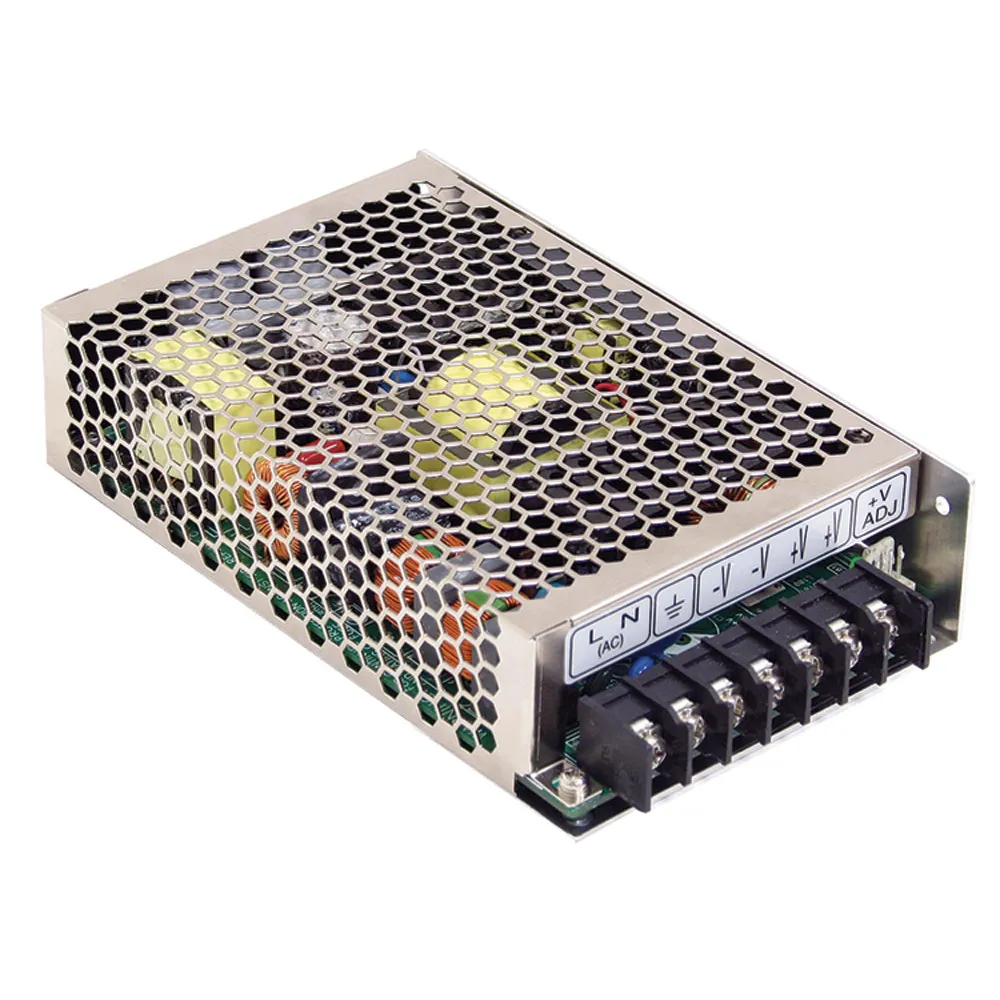

150W AC/DC ENCLOSED SWITCHING POWER SUPPLY

15Volts @ 10Amps

Specifications:

  • Size (L x W x H) (inches): 6.3 x 3.8 x 1.5
  • Ripple and Noise (mV p-p): 150
  • Load Regulation: 0.5%
  • Line Regulation: 0.3%
  • Input: 85-264VAC @ 47-63Hz
  • Built-in active Power Factor Correction function
  • Able to withstand 300VAC surge input for 5 seconds
  • Universal AC input
  • 5-year warranty
  • Certifications: UL/CUL/TUV/CE/CB/PFC

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:HRPG-150

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.5 in.
Width:3.8 in.
Length:6.3 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:2.3 A

Output

Number of Outputs:1
Output Voltage (Channel 1):15 VDC
Output Voltage:15 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):10 A
Output Current:10 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:87%
Power Rating:150 W
,
