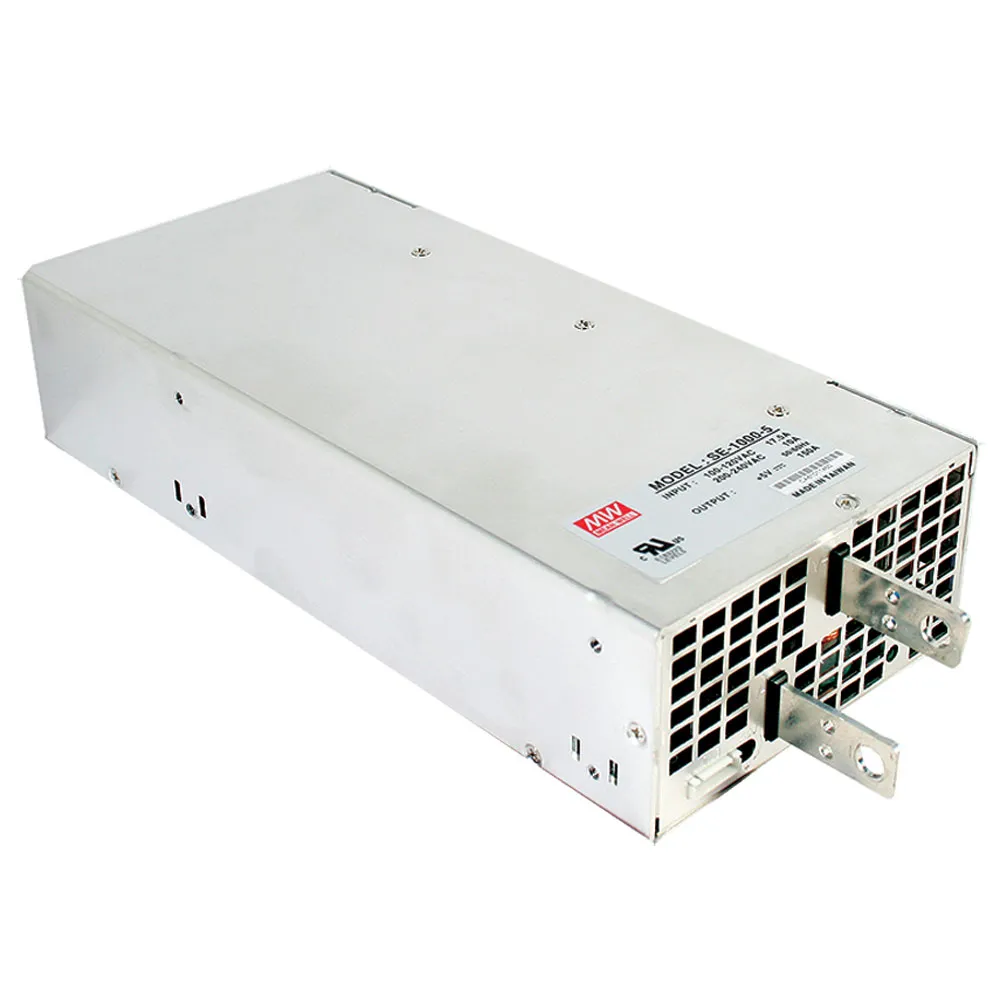

999.6W Single Output Power Supply
12 Volts @ 83.3 Amps
Features:
- AC input active surge current limiting
- AC input range selected by switch
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC ball bearing fan
- High power density 7.3w/inch³
- With DC_OK signal output
- Built-in remote ON-OFF control
- Built-in remote sense function
- UL / CUL approved
- Low cost
- 2 years warranty
Product Identification
Type:Switch Selectable SMPS
Manufacturer Series:SE-1000
Compliance
Agency Approvals: BSMI, CUL, EAC, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Length:10.9 in.
Height:2.5 in.
Width:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 132 VAC, 180 VAC to 264 VAC
Maximum Input Current:17.5 A
Output
Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Lug Terminal Female
Output Current (Channel 1):83.3 A
Output Current:83.30 A
Features
PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:85%
Power Rating:999.6 W
