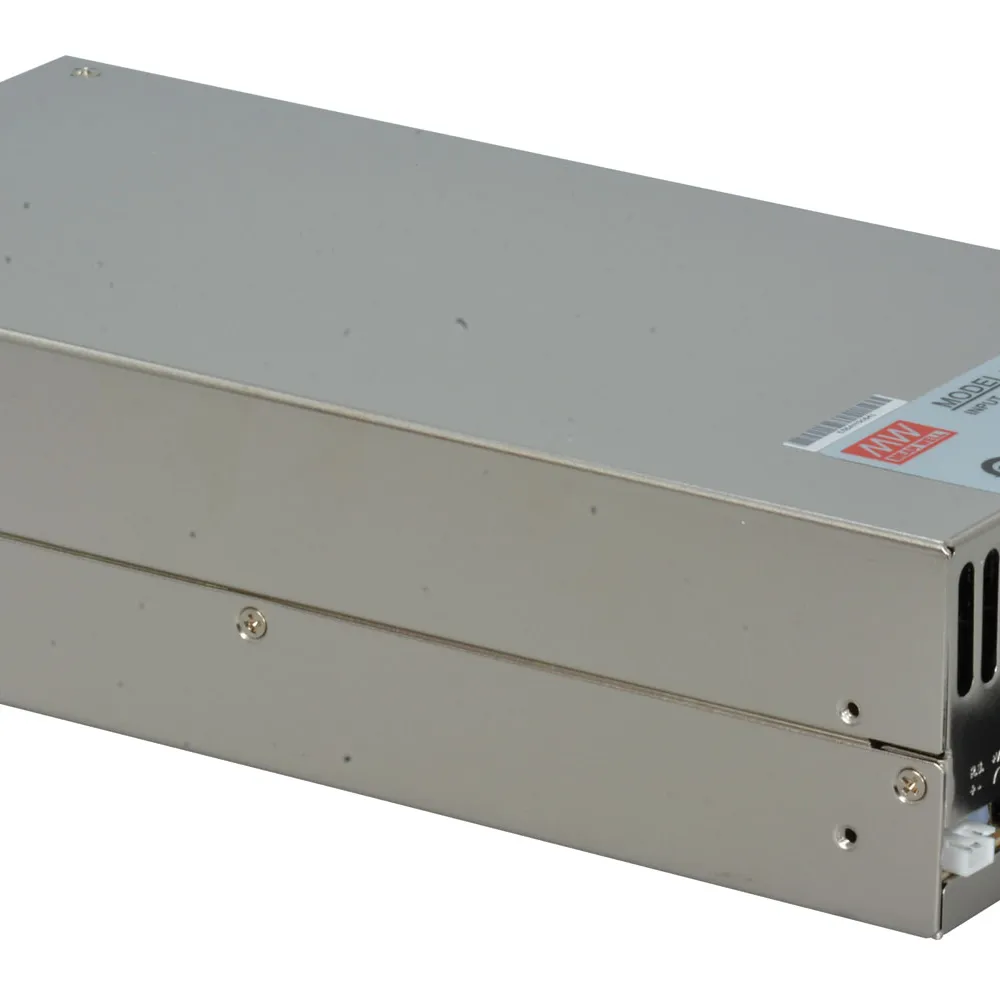

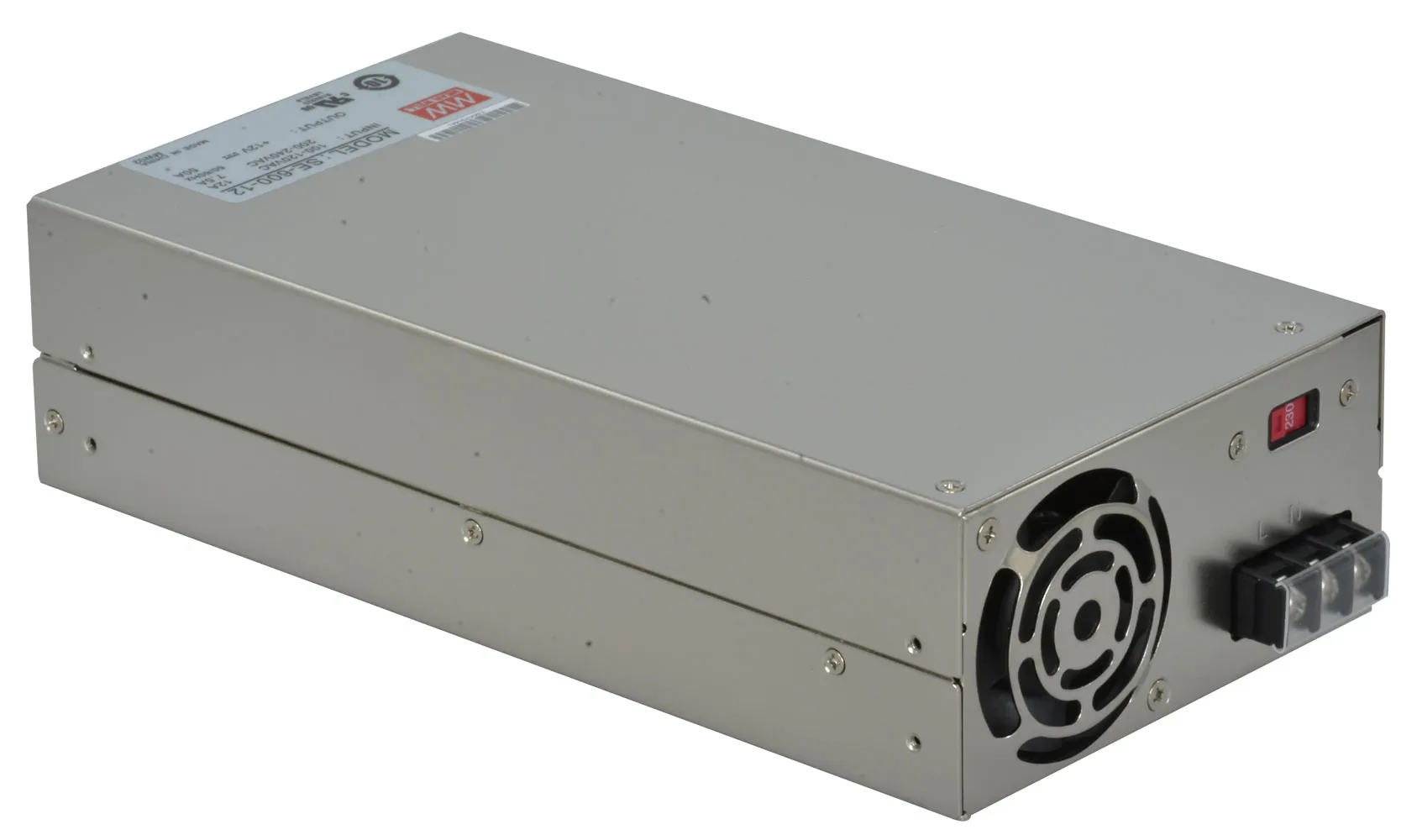

600W AC/DC ENCLOSED SWITCHING POWER SUPPLY

12 Volts @ 50 Amps

Specifications

  • Size (L x W x H) (inches): 9.7 x 5.0 x 2.5
  • Ripple and Noise (mV p-p): 150
  • Load Regulation: 0.5%
  • Line Regulation: 0.5%
  • Input: 85-264VAC @ 47-63Hz

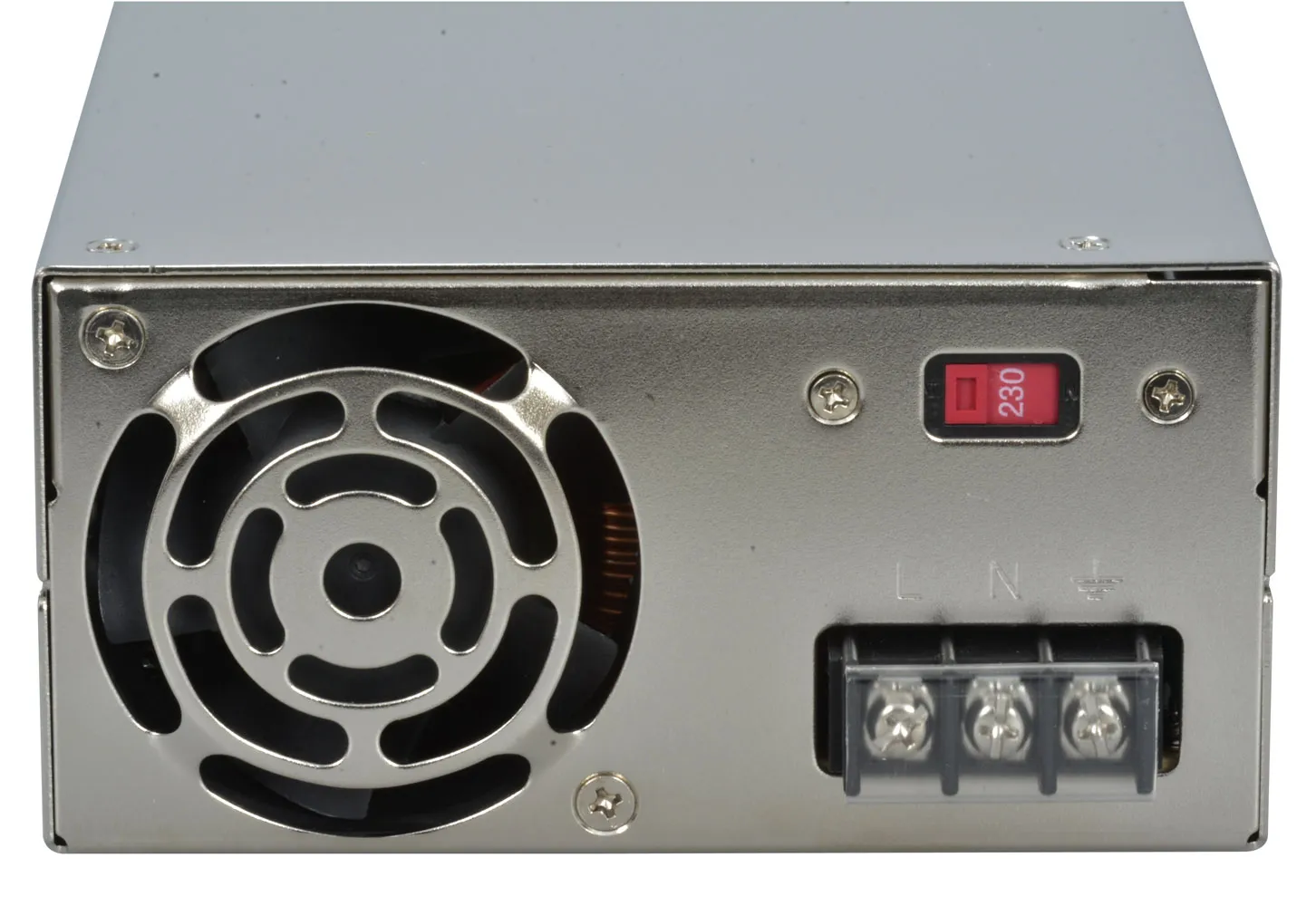

  • Switch-selectable AC input
  • Built-in remote sense function
  • 2-year warranty
  • Certifications: UL

Product Identification

Type:Switch Selectable SMPS
Manufacturer Series:SE-600

Compliance

Agency Approvals: CE, CUL, EAC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:2.5 in.
Width:5 in.
Length:9.7 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 132 VAC, 180 VAC to 264 VAC
Maximum Input Current:12 A

Output

Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC

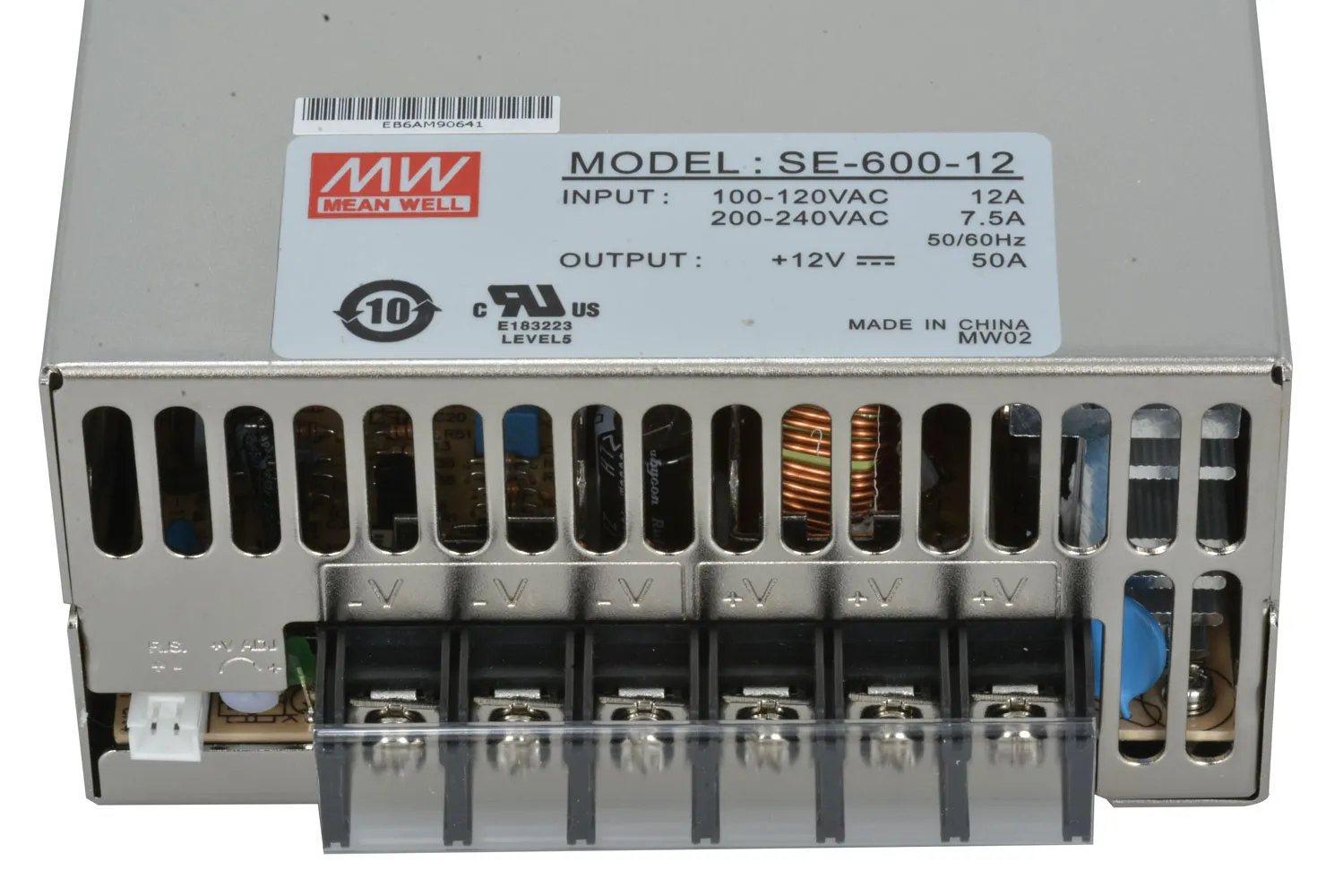

Output Connector Type:Screw Terminal Block
Output Current (Channel 1):50 A
Output Current:50 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:83%
Power Rating:600 W
,
