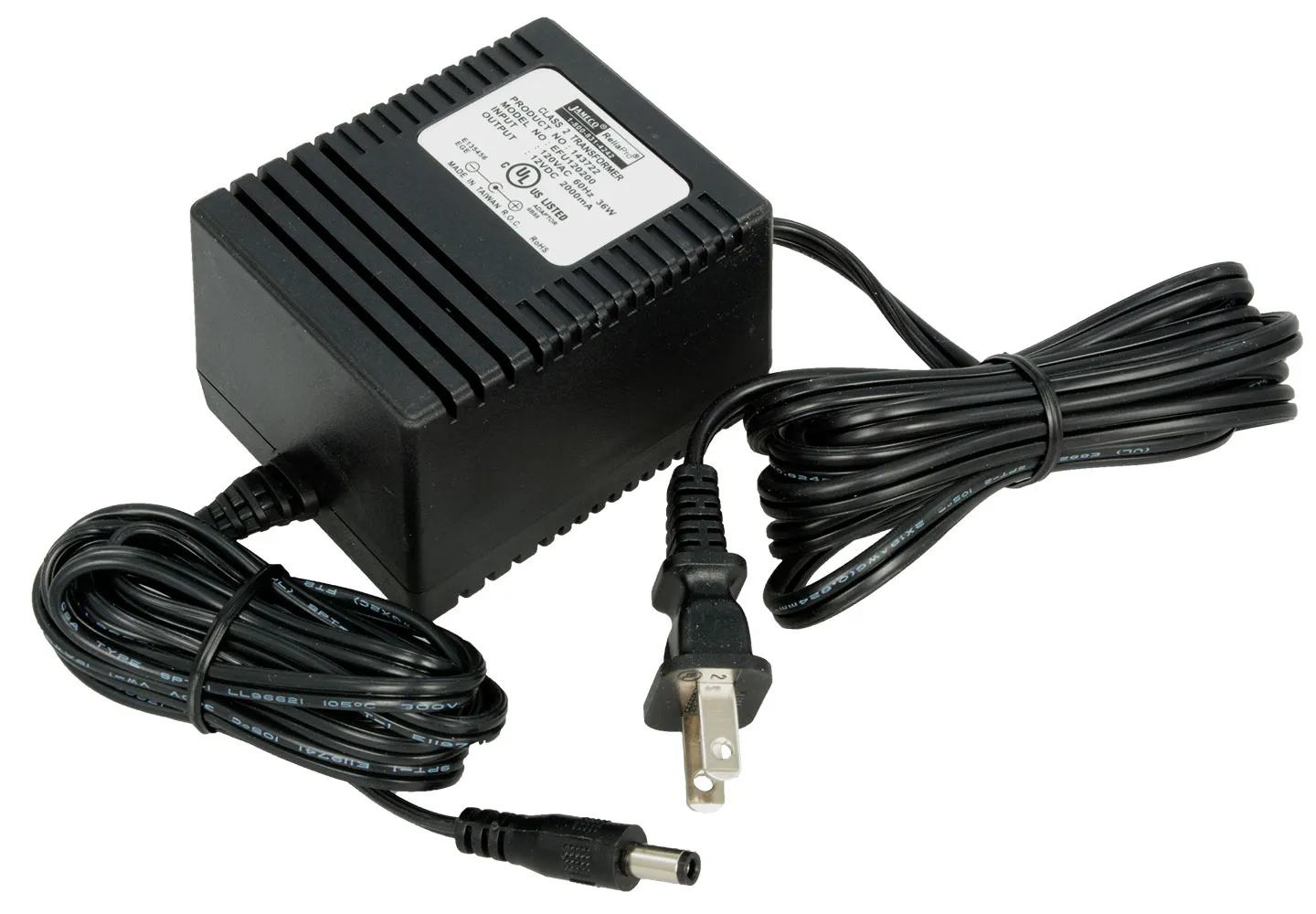

2-Wire AC Input Unregulated AC-to-DC Linear Table-top Power Supply

12 Volts @ 2 Amps

Features:

  • Output connector: 2.5mm x 5.5mm straight female center positive
  • Input: 120VAC @ 60Hz
  • Size: 3.8"H x 2.8"W x 2.3"D
  • Weight: 2.2 lbs.
  • Case color: Black
  • Output cord length: 6 foot DC cord / 6 foot AC cord
  • Agency approvals: UL/CUL

    • Product Identification

    Product Type:Unregulated Linear

    Compliance

    Agency Approvals: CE, CUL, GS, PSE, UL

    Dimensions & Appearance

    Style:Desktop Adapter
    Color:Black
    Height:2.3 in.
    Width:2.8 in.
    Length:3.8 in.
    Size (L" x W" x H"):3.8 x 2.8 x 2.3

    Operating conditions

    Minimum Operating Temperature:0°C
    Maximum Operating Temperature:40°C

    Input

    Input Cord Length:6 ft.
    Input Frequency:60 Hz
    Input Voltage:120 VAC

    Output

    Number of Outputs:1
    Output Cord Length:6 ft.
    Output Connector Diameters:2.5mm x 5.5mm
    Output Voltage:12 VDC
    Output Connector Type:Cylindrical Female
    Output Current:2 A

    Features

    Polarity:Center Positive
    AC Power Cord:Included
    Power Rating:24 W
    ,
