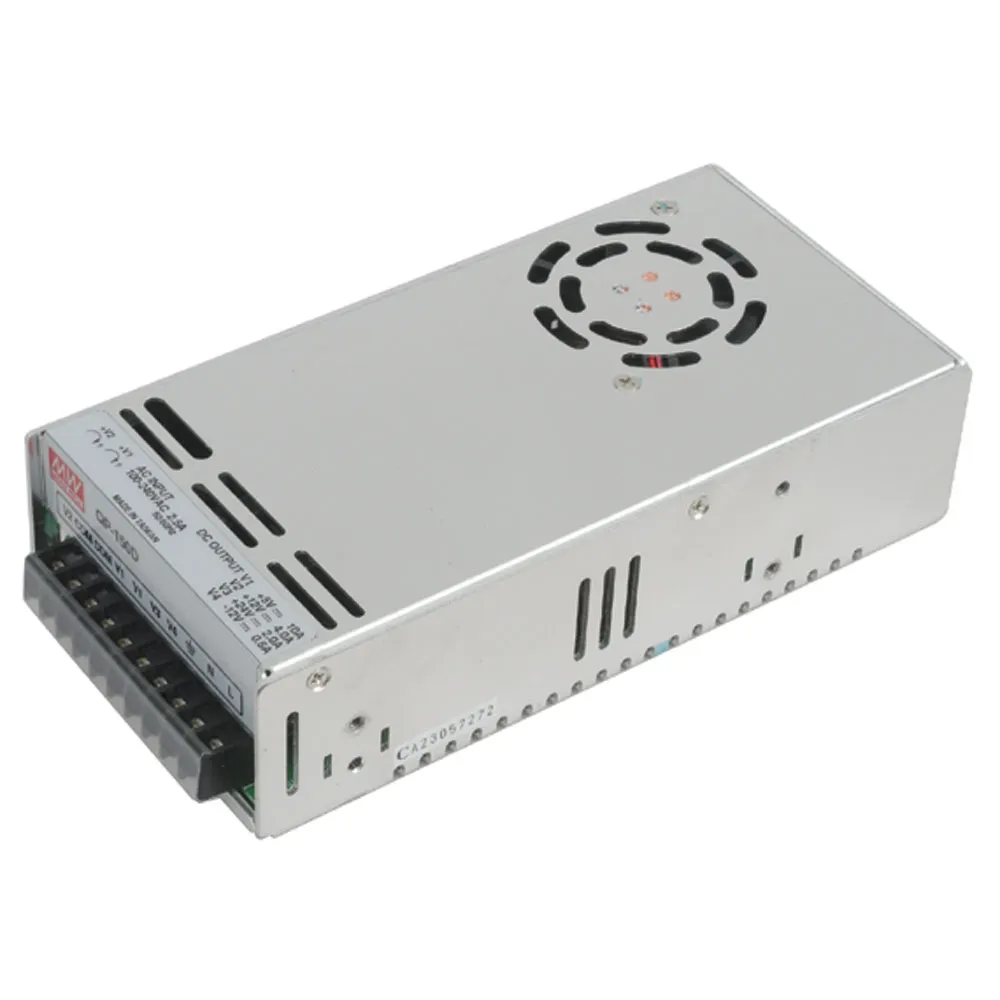

150W Quad Output Power Supply with PFC Function

CH1: 5 Volts @ 10 Amps
CH2: 3.3 Volts @ 10 Amps
CH3: 15 Volts @ 4 Amps
CH4: -15 Volts @ 0.6 Amps

Features:

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Protections: Short circuit / Over load / Over voltage
  • Forced air cooling by built-in DC fan
  • CH4: Polarity is selectable
  • Fixed switching frequency at 100KHz
  • 3 years warranty

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:QP-150

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:2 in.
Width:3.9 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Output Voltage (Channel 2):3.3 VDC
Output Current (Channel 4):0.6 A
Output Voltage (Channel 4):-15 VDC
Number of Outputs:4
Output Voltage (Channel 3):15 VDC
Additional Output Voltages (VDC):3.3, 15, -15
Output Voltage (Channel 1):5 VDC
Output Current (Channel 3):4 A
Output Current (Channel 2):10 A
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):10 A
Output Current:15 A

Features

Minimum Isolation Voltage:3000V
Efficiency:74%
Power Rating:152 W
,
