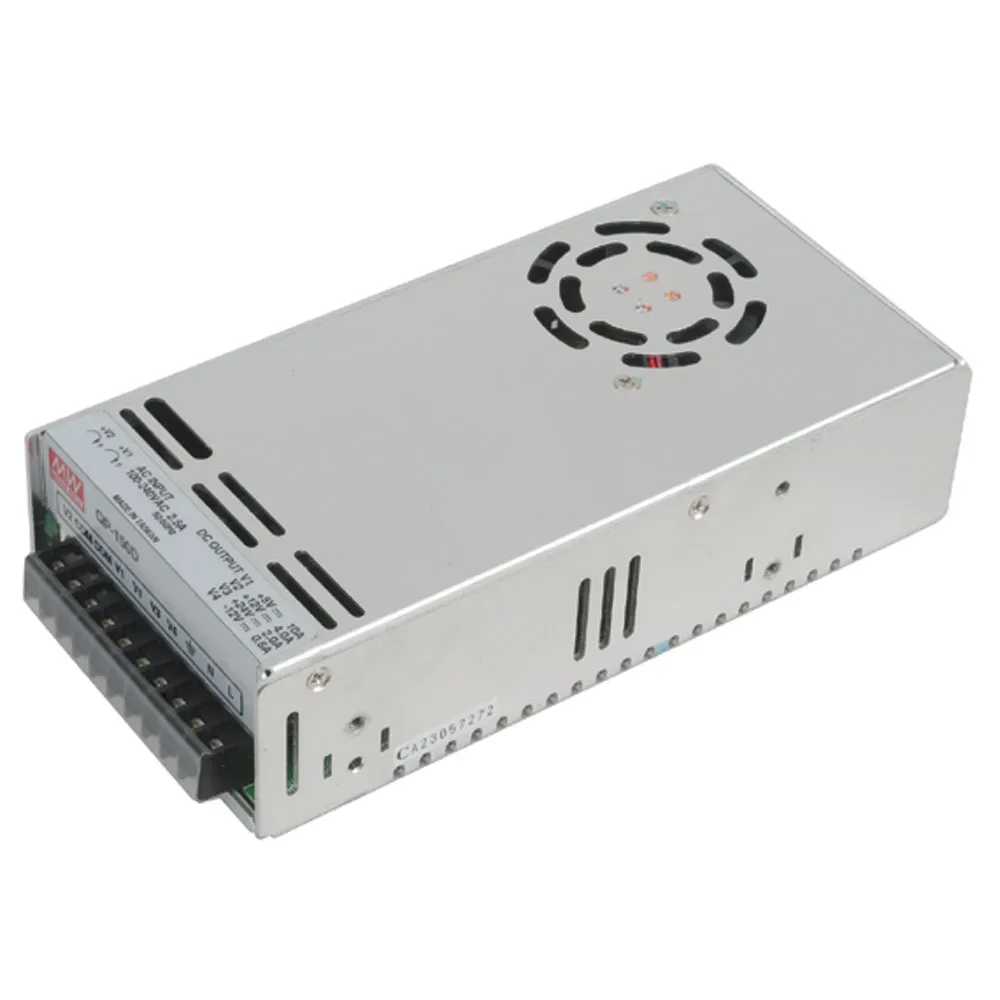

152W AC/DC ENCLOSED SWITCHING POWER SUPPLY
+5Volts @ 10Amps (Channel 1)
+15Volts @ 3Amps (Channel 2)
+24Volts @ 2Amps (Channel 3)
-15Volts @ 0.6Amps (Channel 4)
Specifications:
- Size (L x W x H) (inches): 7.8 x 3.9 x 2.0
- Ripple and Noise (mV p-p): 120
- Load Regulation: 2.0%
- Line Regulation: 1.0%
- Input: 85-264VAC @ 47-63Hz
- Built-in active Power Factor Correction function
- Universal AC input
- 3-year warranty
- Certifications: UL/CUL/TUV/CE/CB/PFC
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:QP-150
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:2.5 A
Output
Output Current (Channel 4):0.6 A
Output Voltage (Channel 4):-15 VDC
Number of Outputs:4
Output Voltage (Channel 3):24 VDC
Output Current (Channel 3):2 A
Output Voltage (Channel 1):5 VDC
Output Voltage (Channel 2):15 VDC
Output Current (Channel 2):3 A
Output Voltage:5 VDC
Additional Output Voltages (VDC): -15, 15, 24
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):10 A
Output Current:10 A
Features
Minimum Isolation Voltage:3000V
Efficiency:78%
Power Rating:152 W
