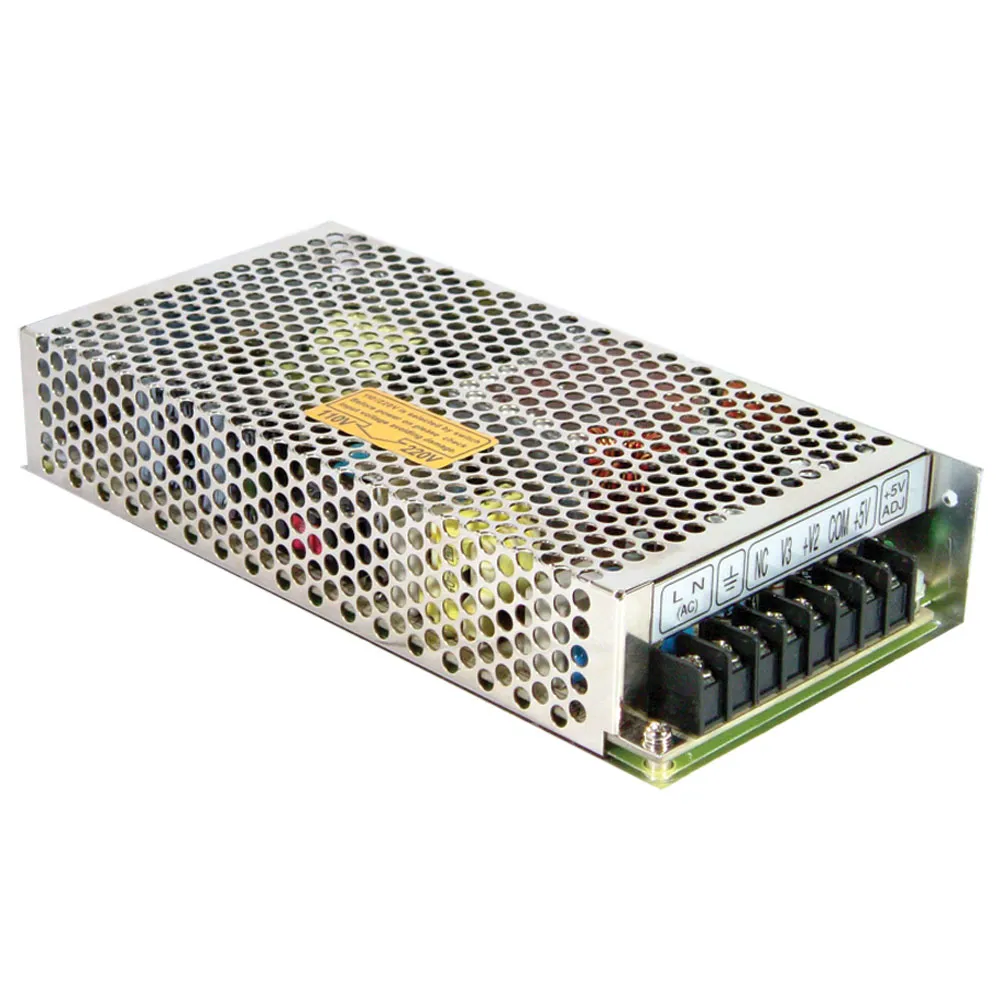

124W AC/DC Enclosed Quad Output Switching Power Supply
+5 Volts @ 8 Amps (Channel 1)+12 Volts @ 2.5 Amps (Channel 2)
+24 Volts @ 2.0 Amps (Channel 3)
-12 Volts @ 0.5 Amps (Channel 4)
Specifications
- Size (L x W x H) (inches): 7.8 x 3.9 x 1.5
- Ripple and Noise (mV p-p): 80
- Load Regulation: 1.0%
- Line Regulation: 0.5%
- Input: 88-264VAC @ 47-63Hz
- 5G Vibration
- Able to withstand 300VAC surge input for 5 seconds
- Short-circuit/overload/overvoltage protection
- 3-year warranty
- Certifications: UL/CUL/TUV/CE/CB
Product Identification
Type:Switch Selectable SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RQ-125
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 132 VAC, 176 VAC to 264 VAC
Maximum Input Current:3 A
Output
Output Current (Channel 4):0.5 A
Output Voltage (Channel 4):-12 VDC
Number of Outputs:4
Output Voltage (Channel 2):12 VDC
Output Voltage (Channel 3):24 VDC
Output Current (Channel 3):2 A
Output Voltage (Channel 1):5 VDC
Output Current (Channel 2):2.5 A
Additional Output Voltages (VDC): -12, 12, 24
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):8 A
Output Current:8 A
Features
Minimum Isolation Voltage:3000V
Efficiency:82%
Power Rating:124 W
