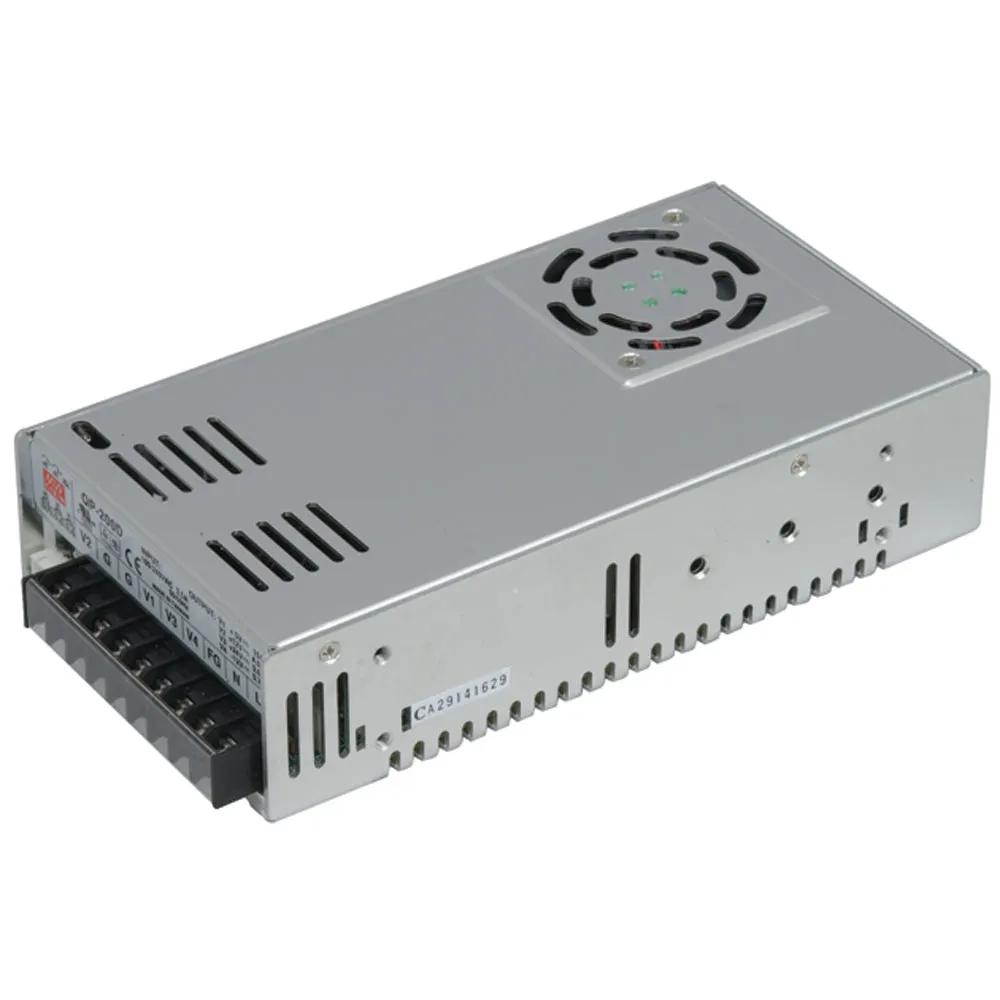

204.9W AC/DC ENCLOSED SWITCHING POWER SUPPLY
+5Volts @ 15Amps (Channel 1)
+12Volts @ 4Amps (Channel 2)
+24Volts @ 3Amps (Channel 3)
-12Volts @ 0.7Amps (Channel 4)
Specifications:
- Size (L x W x H) (inches): 7.8 x 3.9 x 2.0
- Ripple and Noise (mV p-p): 100
- Load Regulation: 2.0%
- Line Regulation: 1.0%
- Input: 85-264VAC @ 47-63Hz
- Built-in active Power Factor Correction function
- Universal AC input
- 3-year warranty
- Certifications: UL/CUL/TUV/CE/CB/PFC
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:QP-200
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Height:2 in.
Width:3.9 in.
Length:7.8 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:3.5 A
Output
Output Voltage (Channel 4):-12 VDC
Output Current (Channel 4):0.7 A
Number of Outputs:4
Output Voltage (Channel 2):12 VDC
Output Voltage (Channel 3):24 VDC
Output Current (Channel 3):3 A
Output Voltage (Channel 1):5 VDC
Output Current (Channel 2):4 A
Additional Output Voltages (VDC): -12, 12, 24
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):15 A
Output Current:15 A
Features
Minimum Isolation Voltage:3000V
Efficiency:75%
Power Rating:204.9 W
