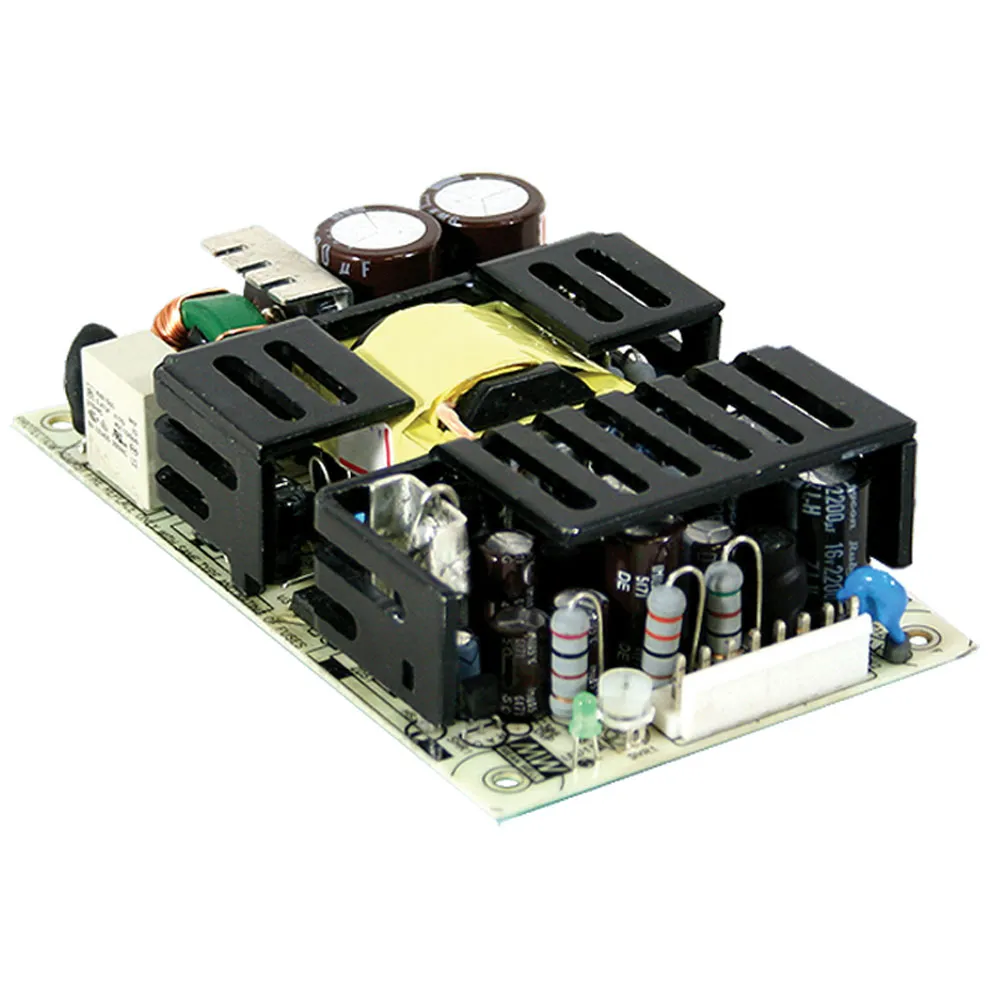

75W Triple Output Medical Type
CH1: 5 Volts @ 5 Amps
CH2: 24 Volts @ 1.5 Amps
CH3: 12 Volts @ 1 Amps
Features:- Universal AC input / Full range
- Low leakage current<200uA
- Protections: Short circuit / Overload / Over voltage
- Free air convection for rated power and 23.5CFM forced air convection for peak load
- UL60601-1/IEC60601-1/EN60601-1 medical safety approved
- Fixed switching frequency at 65KHz
- 3 years warranty
CH1: 5 Volts @ 5 Amps
CH2: 24 Volts @ 1.5 Amps
CH3: 12 Volts @ 1 Amps
Features:
- Universal AC input / Full range
- Low leakage current<200uA
- Protections: Short circuit / Overload / Over voltage
- Free air convection for rated power and 23.5CFM forced air convection for peak load
- UL60601-1/IEC60601-1/EN60601-1 medical safety approved
- Fixed switching frequency at 65KHz
- 3 years warranty
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:RPT-75
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Medical Open Frame
Height:1.2 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A
Output
Number of Outputs:3
Output Connector Diameters:N/A
Output Connector Type:JST B8P-VH or equiv.
Additional Output Voltages (VDC): 12 VDC, 24 VDC
Output Voltage:5 VDC
Output Current:7 A
Features
Minimum Isolation Voltage:4000V
Efficiency:79%
Power Rating:73 W
