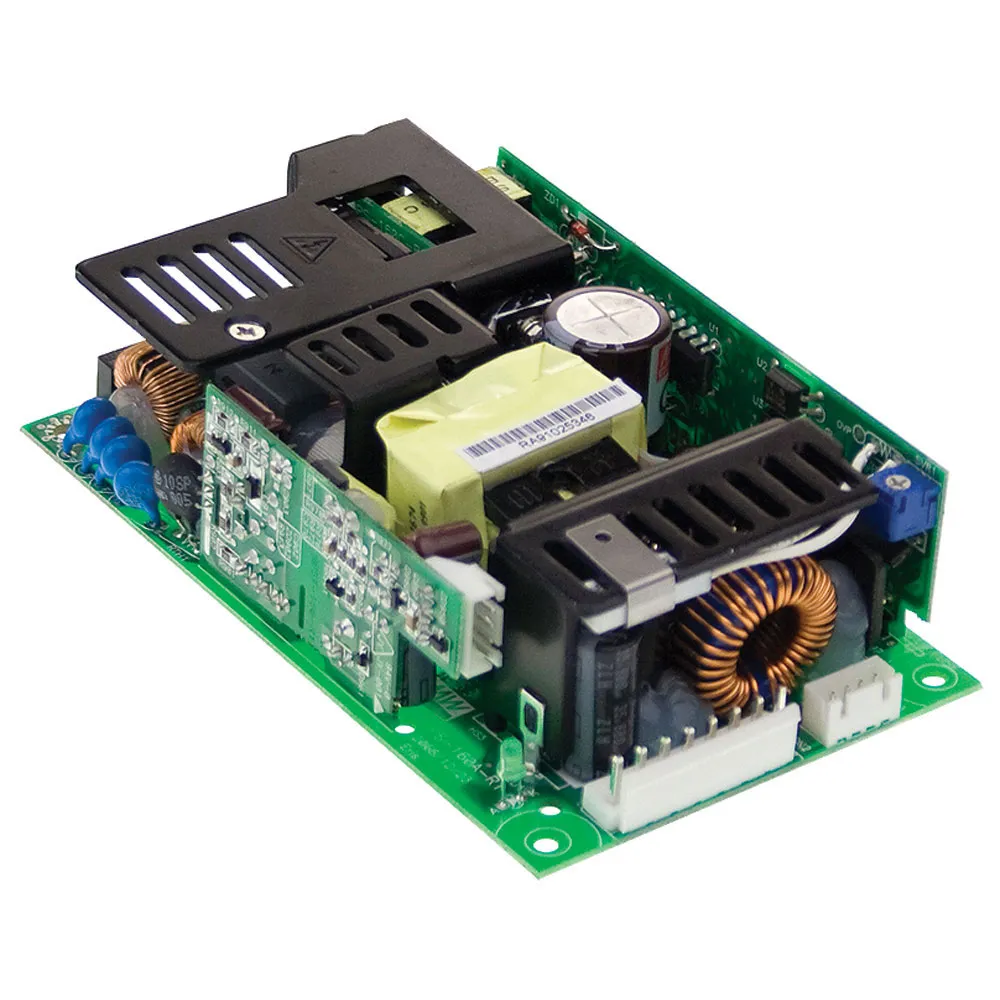

160W Triple Output Medical Type
CH1: 5 Volts @ 14 Amps
CH2: 15 Volts @ 3.6 Amps
CH3: -15 Volts @ 1 Amps
Features:- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 5"x3" compact size
- Free air convection for 100W and 145W with 20.5
- CFM forced air
- With power good and fail signal output
- 3 years warranty
- No load power consumption under 0.75W by PS-ON control (G model)
- Standby [email protected] with fan, @0.6A without fan (G model)
CH1: 5 Volts @ 14 Amps
CH2: 15 Volts @ 3.6 Amps
CH3: -15 Volts @ 1 Amps
Features:
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 5"x3" compact size
- Free air convection for 100W and 145W with 20.5
- CFM forced air
- With power good and fail signal output
- 3 years warranty
- No load power consumption under 0.75W by PS-ON control (G model)
- Standby [email protected] with fan, @0.6A without fan (G model)
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:RPT-160
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Medical Open Frame
Height:1.4 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.8 A
Output
Number of Outputs:3
Output Connector Diameters:N/A
Output Connector Type:JST B8P-VH or equiv.
Output Voltage:5 VDC
Additional Output Voltages (VDC): -15 VDC, 15 VDC
Output Current:14 A
Features
Minimum Isolation Voltage:4000V
Efficiency:83%
Power Rating:143 W
