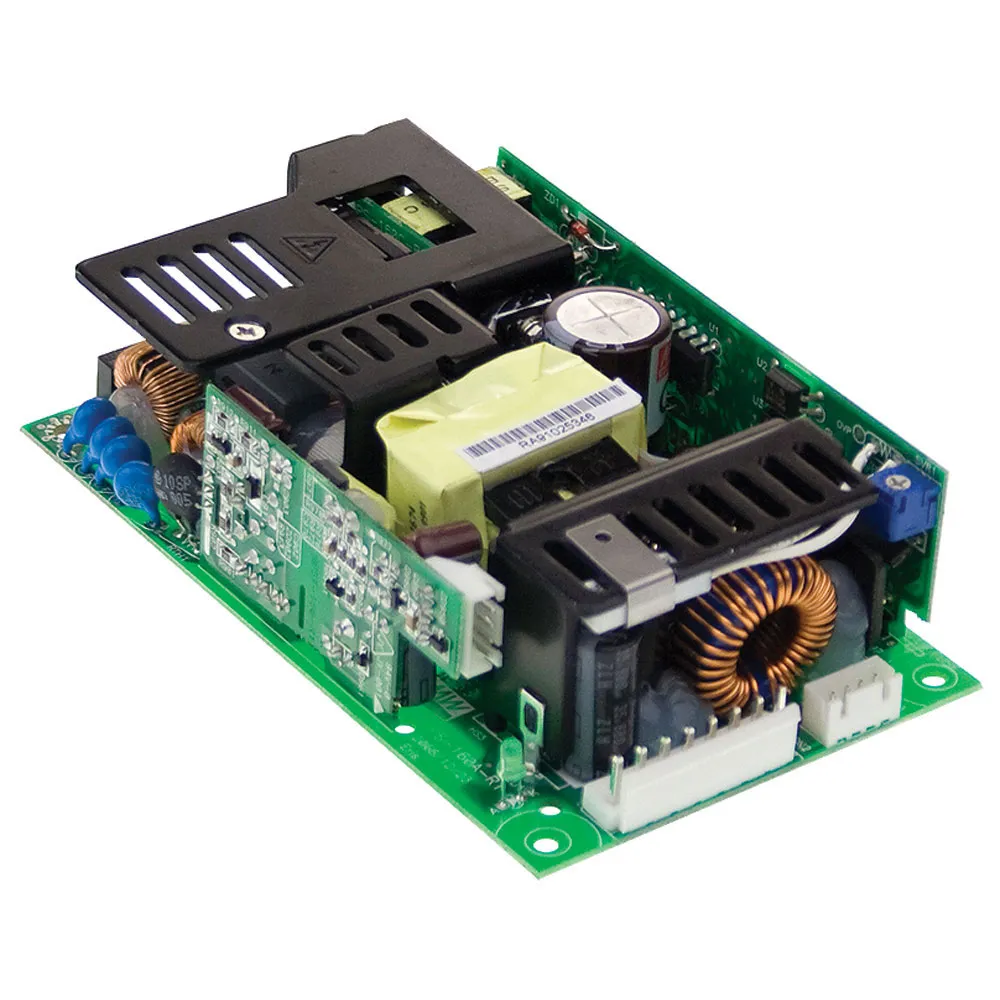

147.8W AC/DC TRIPLE OUTPUT MEDICAL SWITCHING POWER SUPPLY
Channel 1: 5 Volts @ 11 Amps
Channel 2: 12 Volts @ 5 Amps
Channel 3: 24 Volts @ 1.2 Amps
Specifications:
- Size (L x W x H) (inches): 5.0 x 3.0 x 1.4
- Ripple and Noise (mV p-p): Ch.1: 100, Ch.2: 120, Ch.3: 200
- Load Regulation: Ch.1: ±1.5%, Ch.2: ±3.0%, Ch.3: -3, +4%
- Line Regulation: Ch.1: ±0.5%, Ch.2: ±1.0%, Ch.3: ±1.0%
- Input: 90-264VAC @ 47-63Hz, or 127-370VDC
- 3-year warranty
- Certifications: UL/CUL/TUV/CE/CB/PFC
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:RPTG-160
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Medical Open Frame
Height:1.4 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.8 A
Output
Number of Outputs:3
Output Connector Diameters:N/A
Output Connector Type:JST B8P-VH or equiv.
Additional Output Voltages (VDC):12 VDC, 24 VDC
Output Voltage:5 VDC
Output Current:11 A
Features
Minimum Isolation Voltage:4000V
Efficiency:83%
Power Rating:147.8 W
