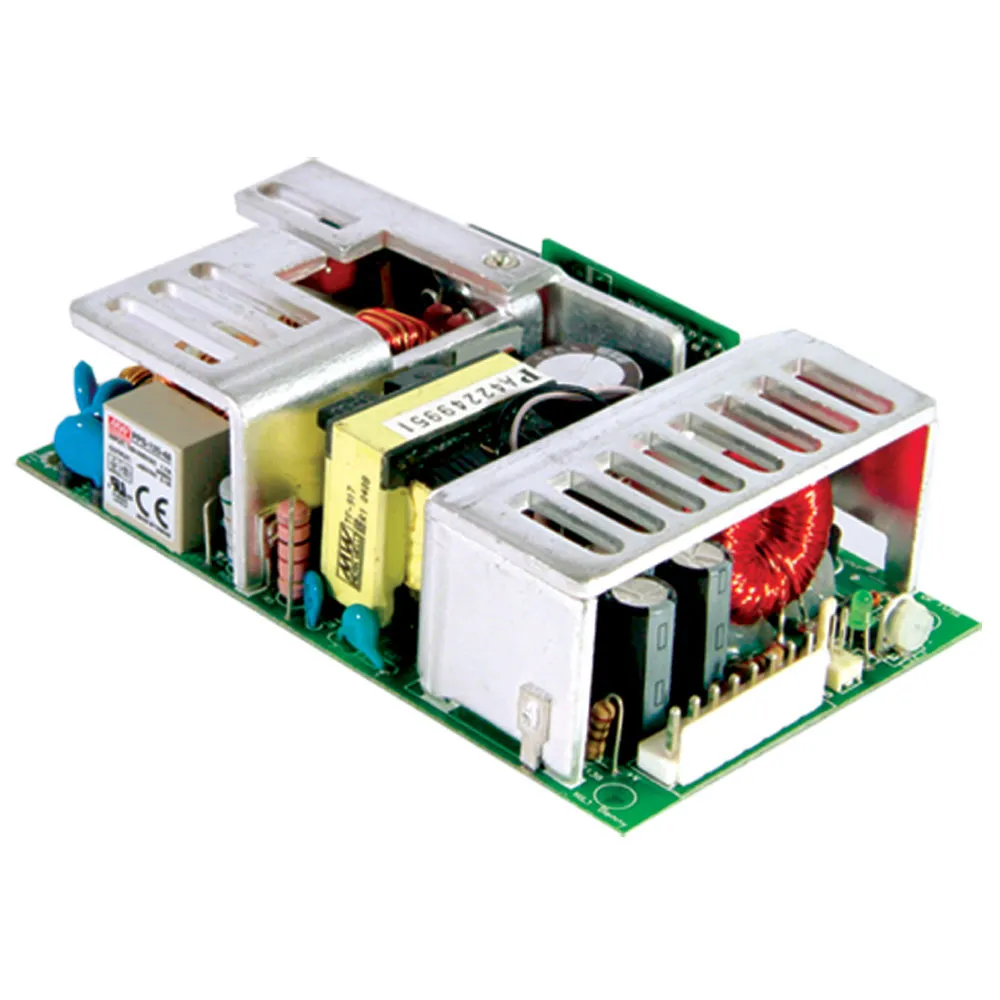

125W Triple Output with PFC Function
CH1: 3.3 Volts @ 10 Amps
CH2: 5 Volts @ 8 Amps
CH3: 12Volts @ 0.5 Amps
Features:
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage
- PWM control and regulated
- High power density 6.117W/inch
- LED indicator for power on
- 100% full load burn-in test
- 125W with 18CFM FAN
- 5"x3" compact size
- 3 years warranty
Product Identification
Manufacturer Series:PPT-125
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:1.40 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.7 A
Output
Number of Outputs:3
Output Connector Type:JST B3P-VH or equiv.
Additional Output Voltages (VDC):5, 12
Output Voltage:3.3 VDC
Output Current:12.50 A
Features
PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:75%
Power Rating:98.8 W
