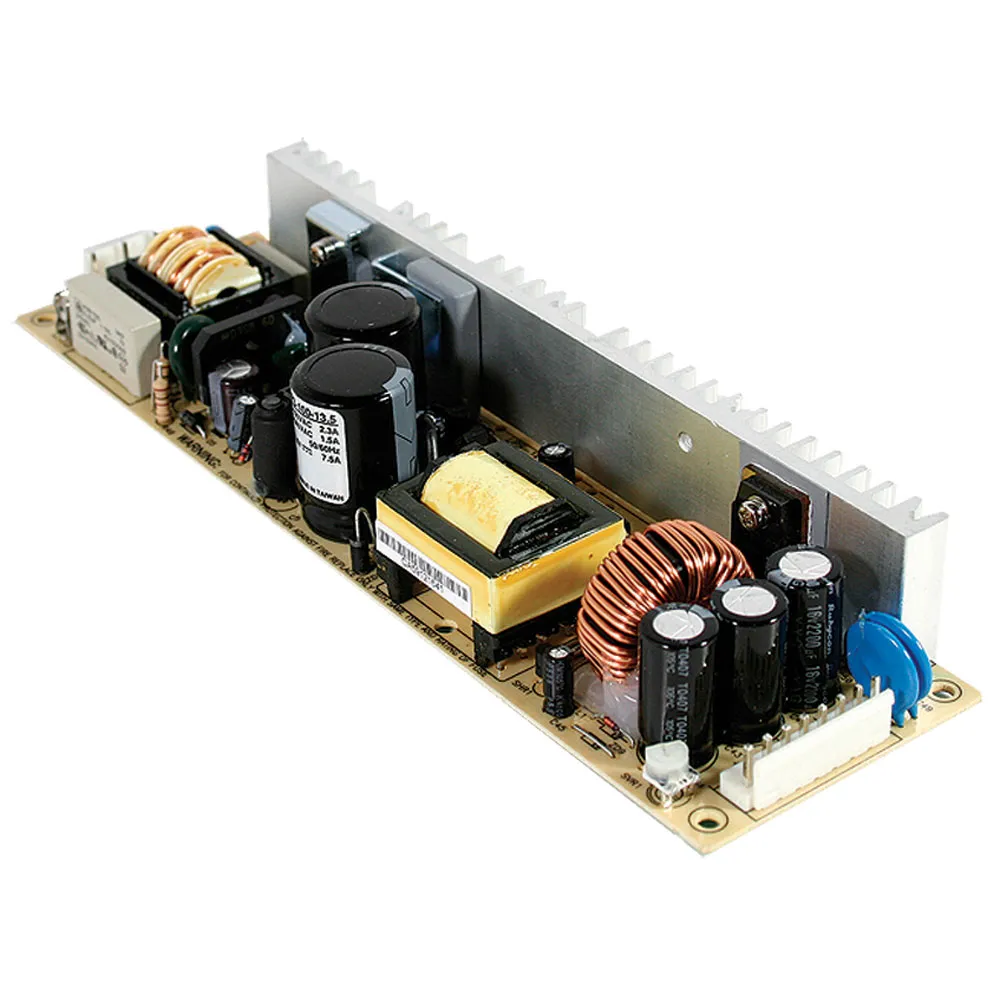

99.75 W Single Output without PFC Function


7.5 Volts @ 13.3 Amps

Features:
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fix switching frequency at 134KHz
  • 3 years warranty

Product Identification

Manufacturer Series:LPS-100

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.30 in.
Width:2.40 in.
Length:8.70 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 132 VAC, 176 VAC to 264 VAC
Maximum Input Current:2.3 A

Output

Number of Outputs:1
Output Connector Type:JST B8P-VH or equiv.
Output Voltage:7.5 VDC
Additional Output Voltages (VDC):N/A
Output Current:13.30 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:77%
Power Rating:99.75 W
,
