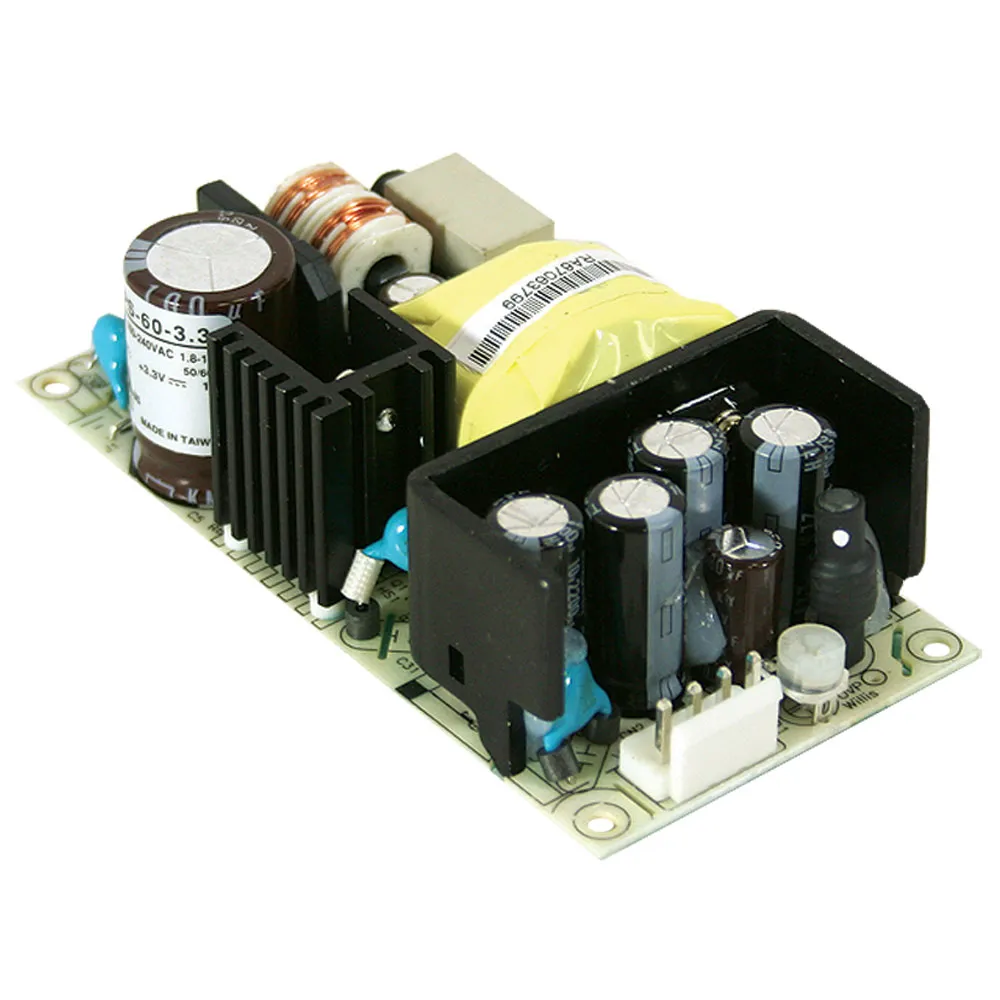

60W Single Output Medical Type


Output: 48 Volts @ 1.25 Amps

Features:
  • 4"x2" miniature size
  • Universal AC input/Full range
  • Low leakage current<200uA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • UL60601-1/IEC60601-1/EN60601-1 medical safety approved
  • UL60950-1/IEC60950-1/EN60950-1 ITE safety approved
  • No load power consumption<0.75W
  • Fixed switch frequency at 100KHz
  • 3 years warranty

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:RPS-60

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Open Frame
Height:1.1 in.
Width:2 in.
Length:4 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.8 A

Output

Number of Outputs:1
Output Connector Type:JST B4P-VH or equiv.
Output Connector Diameters:N/A
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.38 A

Features

Minimum Isolation Voltage:4000V
Efficiency:86%
Power Rating:66 W
,
