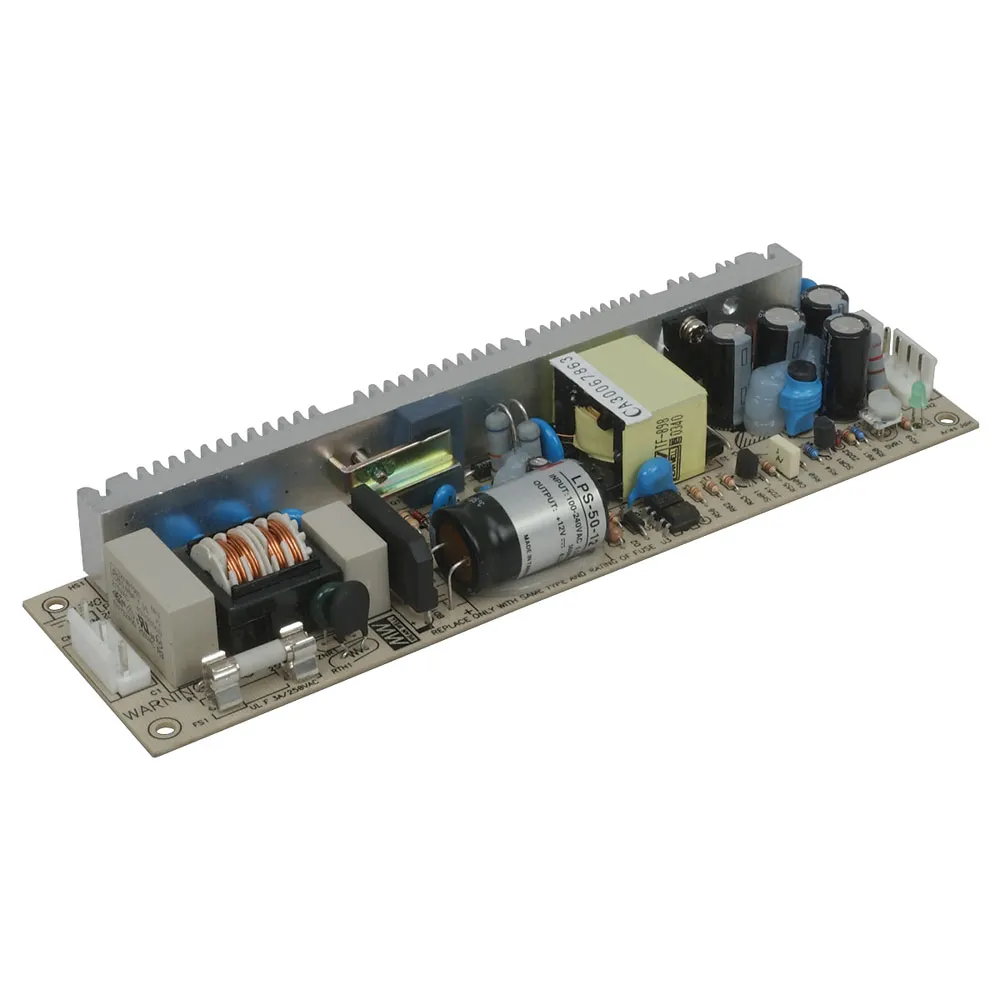

52.8 W Single Output Switching Power Supply


48 Volts @ 1.1 Amps

Features:
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Small and compact size
  • Built-in remote ON-OFF control
  • LED indicator for power on
  • 100% full load burn-in test
  • Low profile:23mm thickness
  • 2 years warranty

Product Identification

Manufacturer Series:LPS-50

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:0.90 in.
Width:2.20 in.
Length:7.70 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.2 A

Output

Number of Outputs:1
Output Connector Type:JST B4P-VH or equiv.
Additional Output Voltages (VDC):43.2 to 52.8
Output Voltage:48 VDC
Output Current:1.30 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:86%
Power Rating:52.8 W
,
